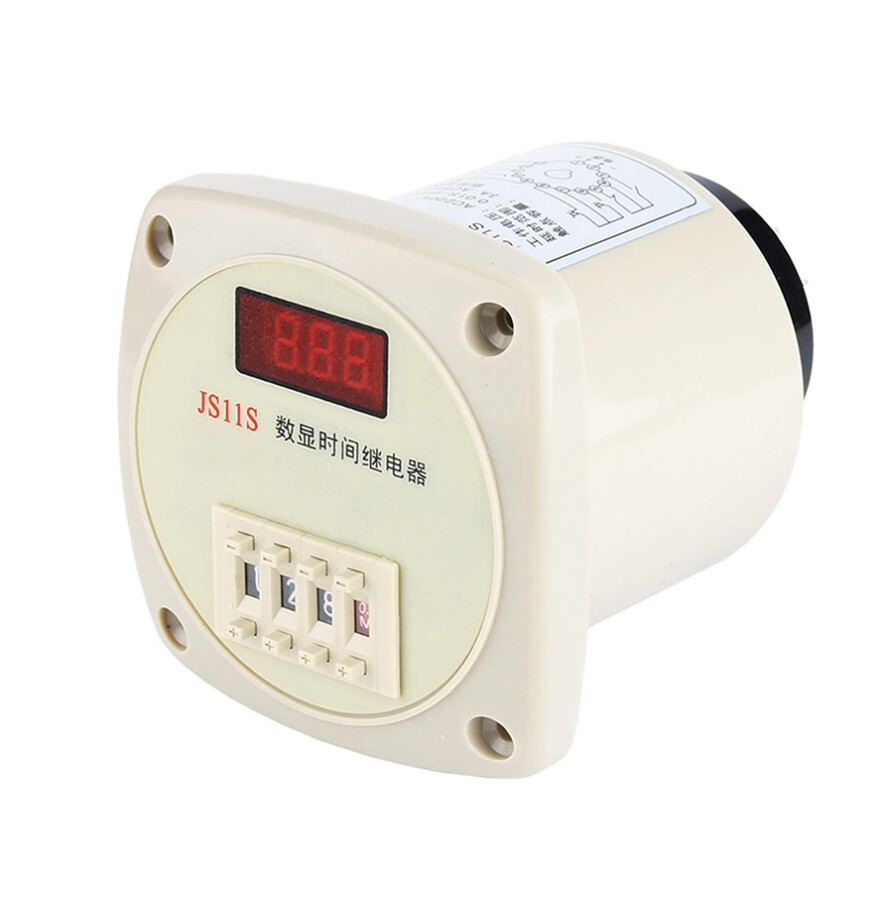

JS11S DC 24V Digital Display Time Relay 0.01 S ~ 999 H

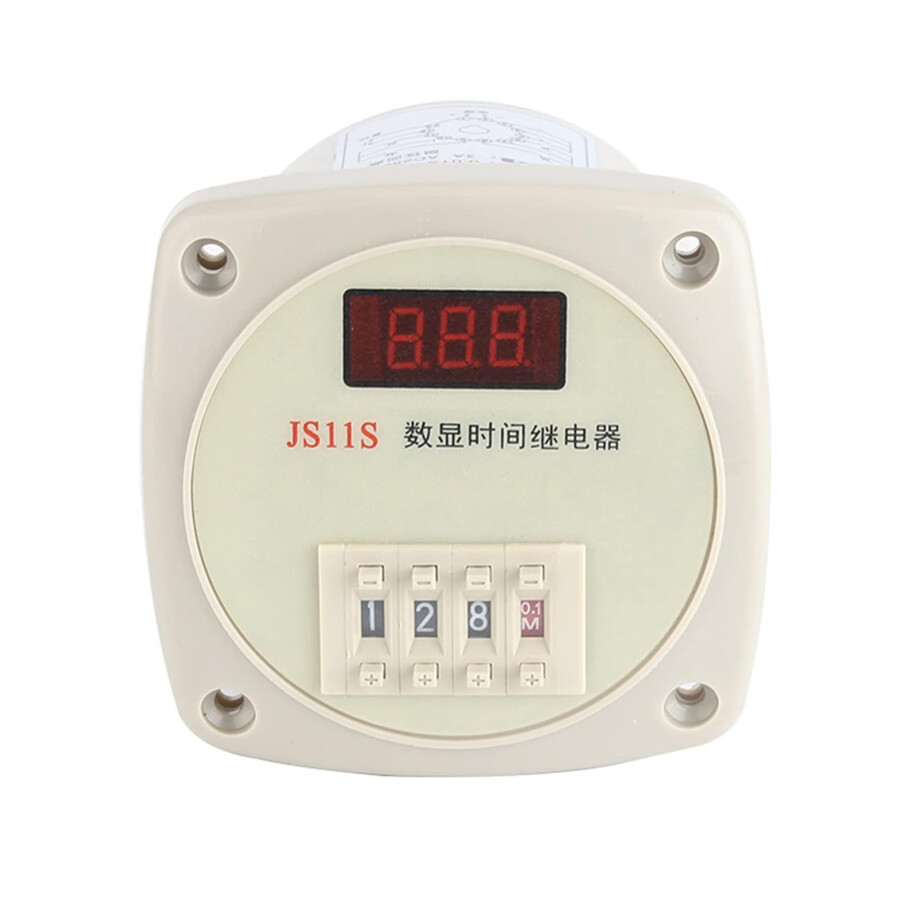

JS11S DC 24V Digital Display Time Relay 0.01 S ~ 999 H. It is a delayed time relay that can be adjusted between 0.01 seconds and 999 hours. It is analog adjusted. You can make adjustments with the buttons on it. You can view the remaining time on the digital screen.
It provides transition for the set time. Then it stops.

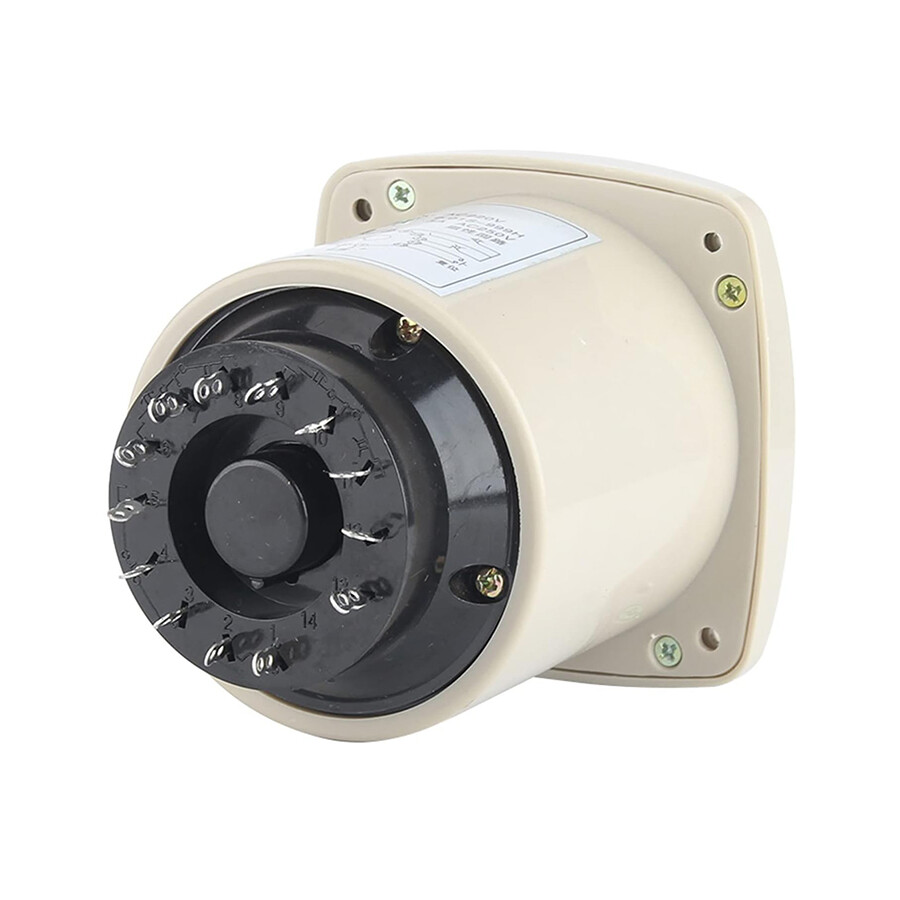

1. Pin is positive supply, 2. Pin is negative supply input. Pins 12 and 13 are reset trigger pins.
Technical Specifications
- Model:JS11S
- Adjustable Time: 0.1s - 999H
- Working Voltage: 24V DC
- Nominal Current: 5A
- Frequency: 50/60Hz
- Mounting Hole Diameter: 4mm
- Distance Between Mounting Holes: 70x70mm

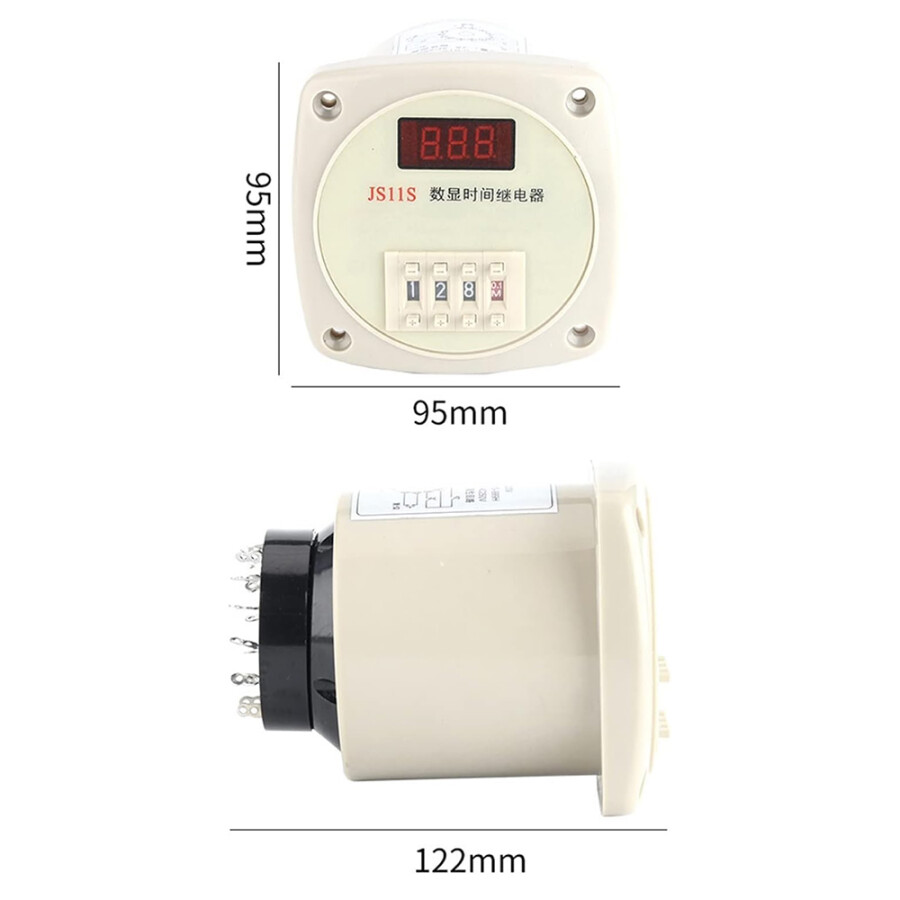

- Dimensions: 94x94x110mm
