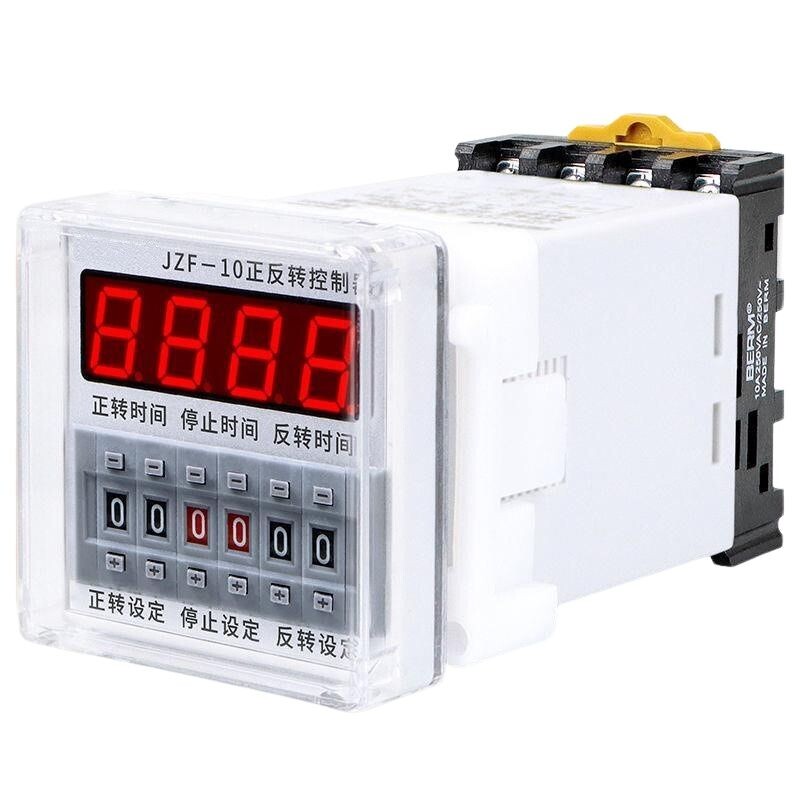

JZF-10 DH48S-S 24V Timed Relay Module - Double Time
JZF-10 DH48S-S 24V Timed Relay Module - Double Time. DH48S-S is a timed relay module with a digital display that works with 24V and can switch AC or DC. It is a circular delay type time relay, it opens and closes the circuit according to a preset cycle.
Circular Delay:
Applying the preset on-off time for the time relay cyclically when power is applied.

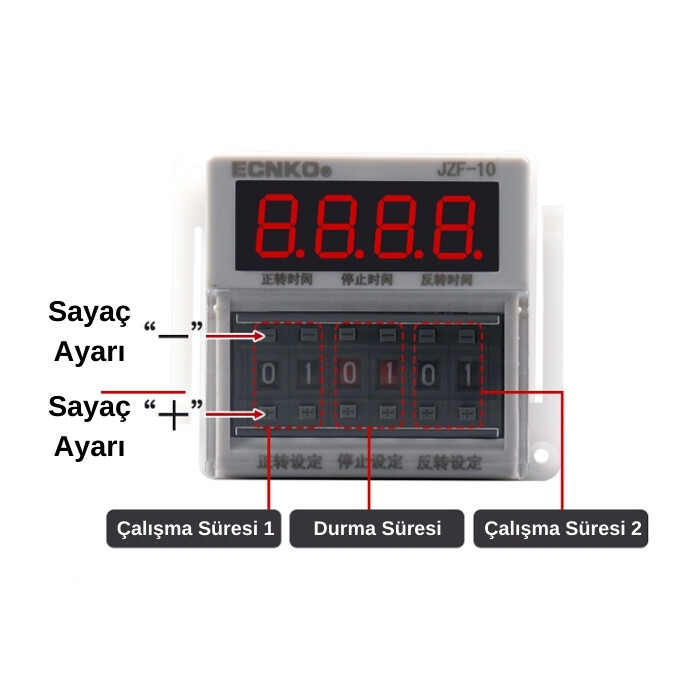

The first set time of the product is the first working time. After this time, it stops for the red time set in the middle. Then, it works for the second set time and stops again. This process continues in a loop. The product can be set to seconds. It can be set between 0 and 99 seconds.
Technical Specifications
- Operating Voltage: 24V DC
- Operating Mode: Circular Delay
- Adjustable Time: 0 - 99s
- Repetition Error: <1%
- Number of Contacts: 1
- Contact Capacity: 250V AC 5A / 24V DC 7A
- Operating Temperature Range: -5 ~ 45°C
- Electronic Life: >10⁵
- Mechanical Life: >10⁸
- Dimensions: 95x45x50mm
