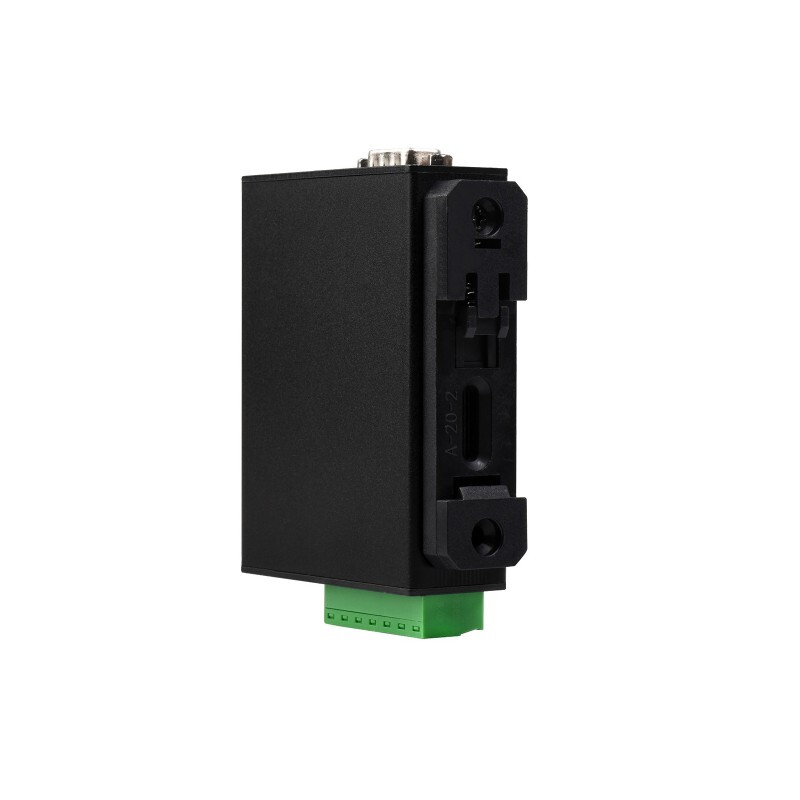

2 Channel RS485 - RJ45 Ethernet Module - PoE Ethernet Port, This is a 2 channel RS485 designed for industrial environment The device is a data collector / IoT gateway. Dual RS485 can work simultaneously without interfering with each other. It combines many functions into one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, and network switch. The module has dual RS485 and dual Ethernet ports, uses a DC port (outer diameter: 5.5 mm, inner diameter: 2.1 mm) and screw terminal for power input. The chassis with rail mounting bracket is small in size and easy to install. Suitable for applications such as data collection, IoT gateway, safety and security IoT and smart device monitoring.

Features

• Supply Options: DC 5.5 V Power input, 6 ~ 45V DC power input via terminal, PoE port
• Communication Interface: 2 RS485 Ports, 2 Ethernet Ports
• Isolation Protection: Power and signal isolation
• Ethernet: RJ45 with PoE support, IEEE 802.3af compliant
• Serial Port: Isolated RS485
• Baudrate: 300 ~ 115200bps
• Parity Bit: none , odd, even, mark, space
• Data Bit: 5 ~ 9 bit
• Protocol: ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
• Communication Method: TCP/IP, VCOM
• Operating Modes: TCP server, TCP client, UDP, UDP multicast
• Operating Temperature Range: -40 ~ 85°C
• Size: 78x72.5x24.2mm
