220V Time Adjusted Relay Module with Display
Timed relay module working with 220v. Lamp, motor, fan, etc. powered by 220v. Can be used with products. This product, where you can set the time from 1 second to 999 hours, has 6 different operating modes. It offers the opportunity to control products with a maximum power of 1100w by time setting.

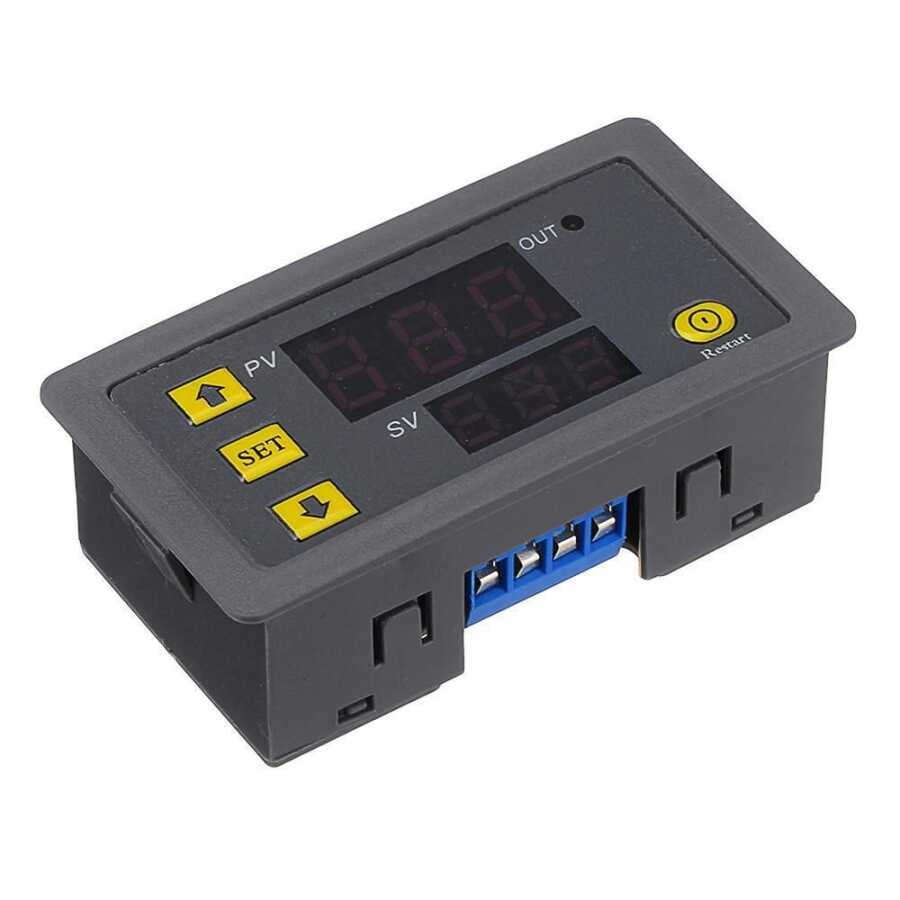

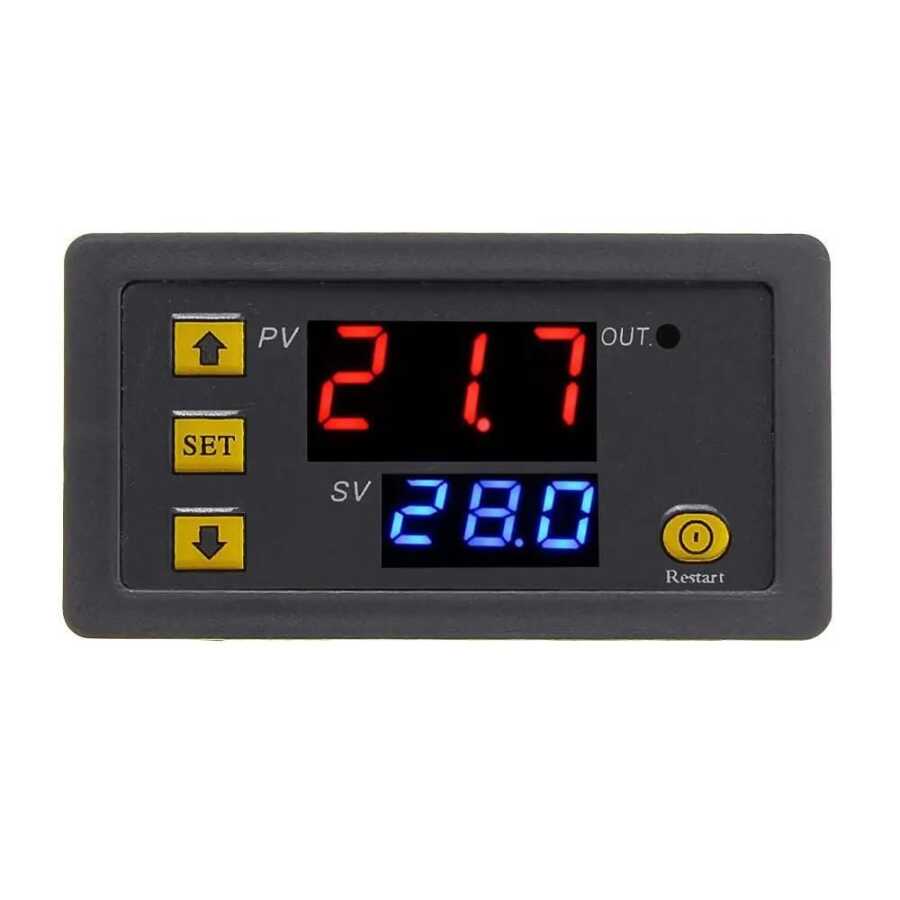

When the Set button is pressed once, the time setting section opens. The time shown on the red screen is T1, and the time shown on the blue screen is T2. When the Set button is pressed for a long time, the mode change screen becomes active.
Operating Modes:
- P0-0: Seconds mode 0- It can be used between 999 seconds.
- P0-1: Minute mode can be used between 0-999 minutes.
- P0-2: Hour mode can be used between 0-999 hours.
- P1-0: After waiting for the specified T1 time, the relay is activated and remains open. When the Restart button is pressed, the time starts again.
- P1-1: The relay remains open for the specified T1 time and closes when the time expires. It starts again when the Restart button is pressed.
- P1-2: The relay remains closed for the specified T1 period and then remains open for the T2 period. When the time expires, the process ends. This cycle starts again when the Restart button is pressed.
- P1-3: The relay remains open for the specified T1 time, and then remains closed for the T2 time. When the time expires, the relay remains open. The relay remains open and never closes until you press the Restart button.
- P1-4: The relay remains closed for the specified T1 period, and then remains open for the T2 period. This process repeats as an endless loop.
- P1-5: The relay remains open for the determined T1 time, and then remains closed for the T2 time. This process repeats in an endless loop.
