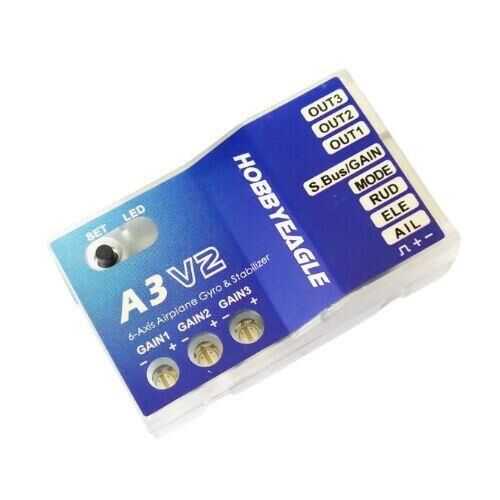

A3 V2 6 axis Gyro Fixed Wing Flight Controller

A3 V2 6 axis Gyro Fixed Wing Flight Controller. Easy to use, suitable for beginners. A3 V2 Flight Controller Its device is advanced version of A3-L gyro with high precision 6-axis (3 Gyro + 3 accelerometer) MEMS sensor.

The main advantage of a 6-axis gyro is that it provides smooth and stable flight in less than ideal flight conditions and also returns your aircraft to upright, level flight in the event of a possible reversal, thanks to its automatic recovery system.

After installing the gyro, the servos move more frequently than before, it is recommended to use a reliable UBEC or ESC to provide sufficient operating current for the servos and other devices, otherwise the gyro may become unstable with occasional voltage drops. To maintain voltage, it is recommended to use the large capacitor located in any free slot of the gyro or receiver.

Please review the datasheet for detailed information.

Datasheet

Specifications:

Operating Voltage: 5 ~ 8.4V
Gyroscope Scale Range: ± 2000 dps
Accelerometer scale range: ±4g
4 Flight Modes
Servo Frequencies: 50Hz/125Hz/250Hz
Operating Temperature: -40 ~ 85°C
Dimension: 43x27x14 mm
