Pixhawk 2.4.8 Flight Control Card Full Set
Pixhawk flight controller is an open source project from the rapidly developing and refined Ardupilot mega or 3DR robotics "APM" This flight controller allows the user to transform fixed-wing, rotary-wing or multi-wing vehicles (even boats and cars) into a fully autonomous vehicle that can even perform GPS missions programmed with waypoints with the optional GPS Module. It is a full autopilot capable of providing support for two-way telemetry with based navigation and radio telemetry modules.
Advantages of the Pixhawk system include integrated multi-threading, a Unix/Linux-like programming environment These advanced capabilities ensure there are no limitations with your autonomous vehicle. Pixhawk allows existing APM and PX4 operators to seamlessly migrate to this system.
Technical Specifications
GPS Holder
- Mounting rod diameter: 4mm
- Rod length: 140mm
- GPS plate diameter: 40 mm
- Base plate diameter: 35 mm
- Mounting hole spacing: 16-35mm
- Weight: 20g
- Color: Blue
- Note: Adhesive Pad not included.
Glass Fiber Flight Controller Anti-Vibration Shock Absorber Set
- Material: Glass fiber
- Suitable for flight control units such as APM 2.5 / 2.6 / 2.8, KK, MWC and Pixhawk 2.4
- Package Weight: 24 g
- Upper Frame size: 90x60x2 mm
- Bottom Frame Size: 100x70 x2 mm
- Shock Absorber Height: 10x12 mm

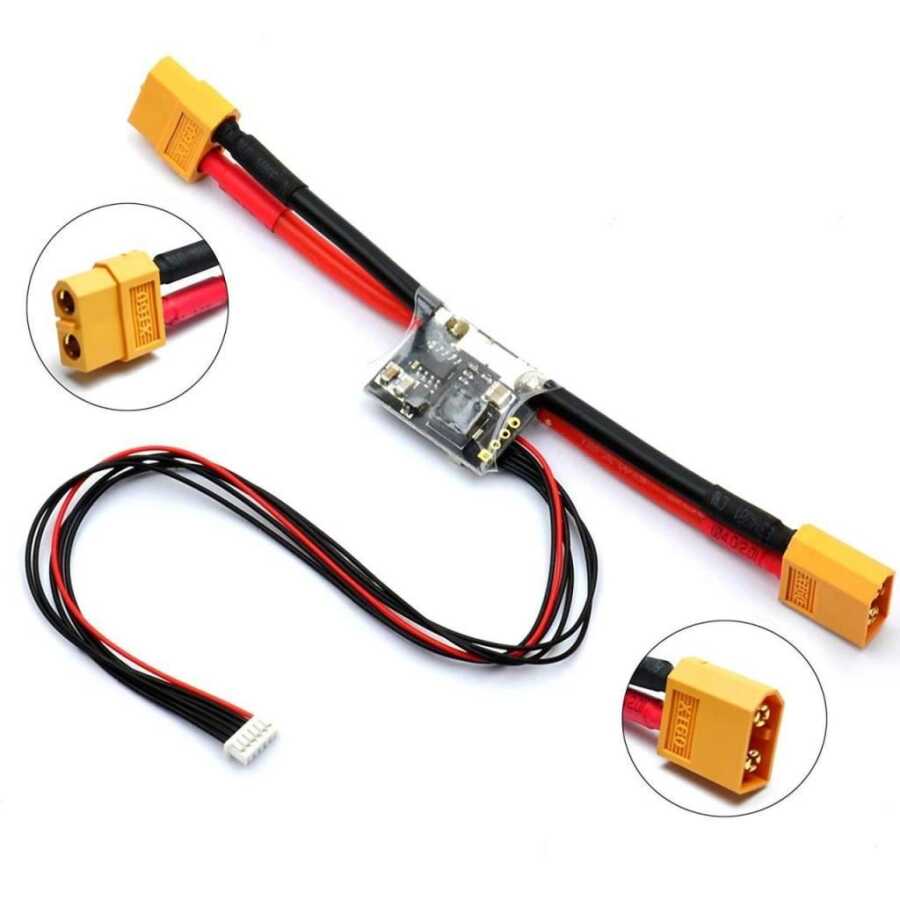

Power Module
- Maximum input voltage: 28V
- Maximum current detection: 90A
- Voltage and current measurement configured for 5V ADC
- Switching regulator output 5.3V and 3A max
- 6-pole DF13 cable plugs directly into 'PM' connector of APM 2.5
- 6S battery support

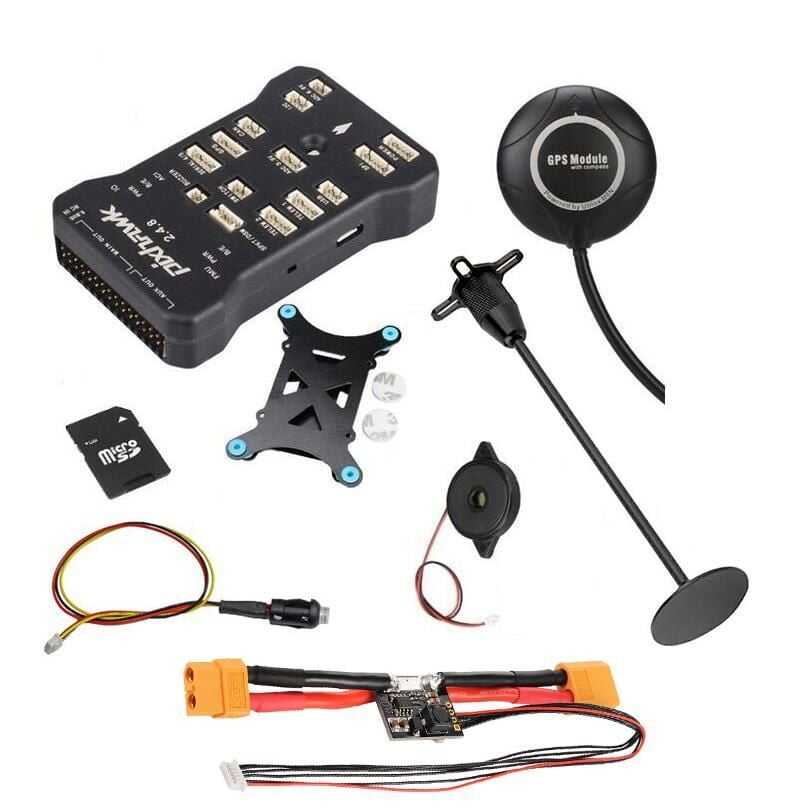

Package Content:

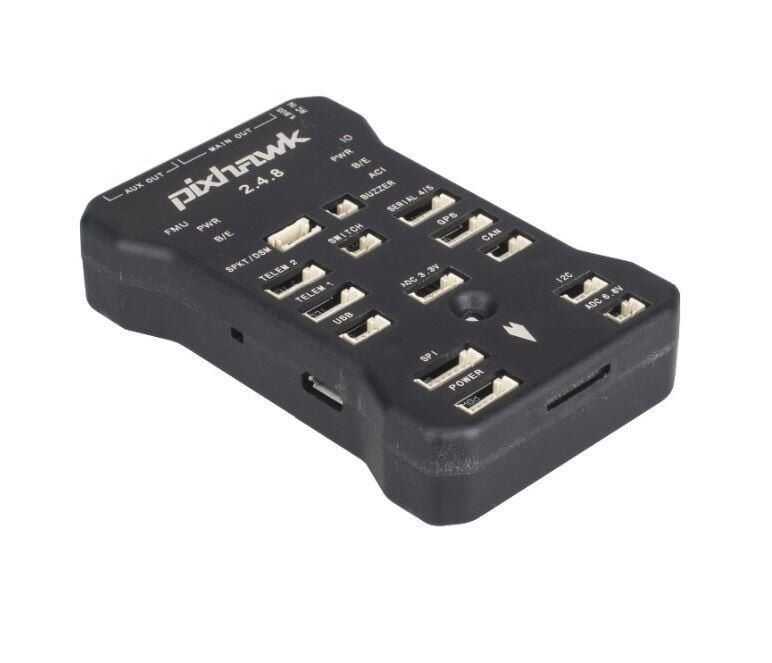

1 x Pixhawk PX4 Autopilot PIX 2.4.8 32 Bit Flight Controller
1 x Power Module

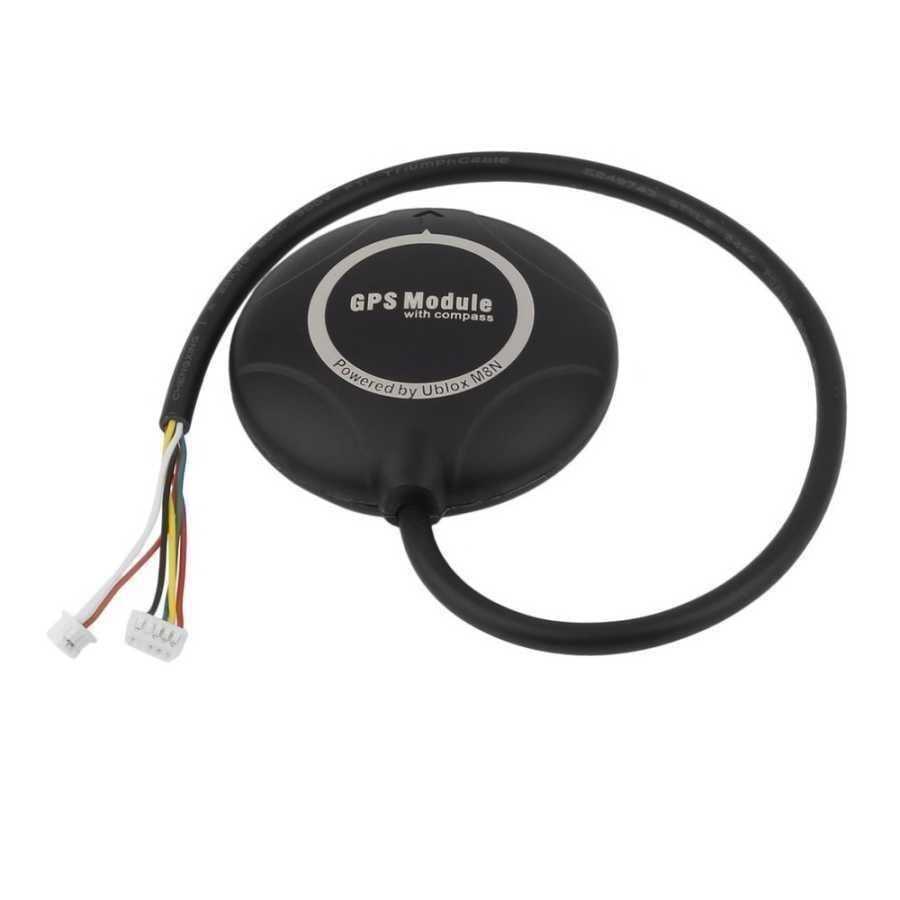

1 x GPS Module
1 x GPS Holder
1 x Buzzer
1 x LED Security Button
1 x Micro SD card adapter
1 x Fiber Flight Controller Anti-Vibration Shock Absorber Set
