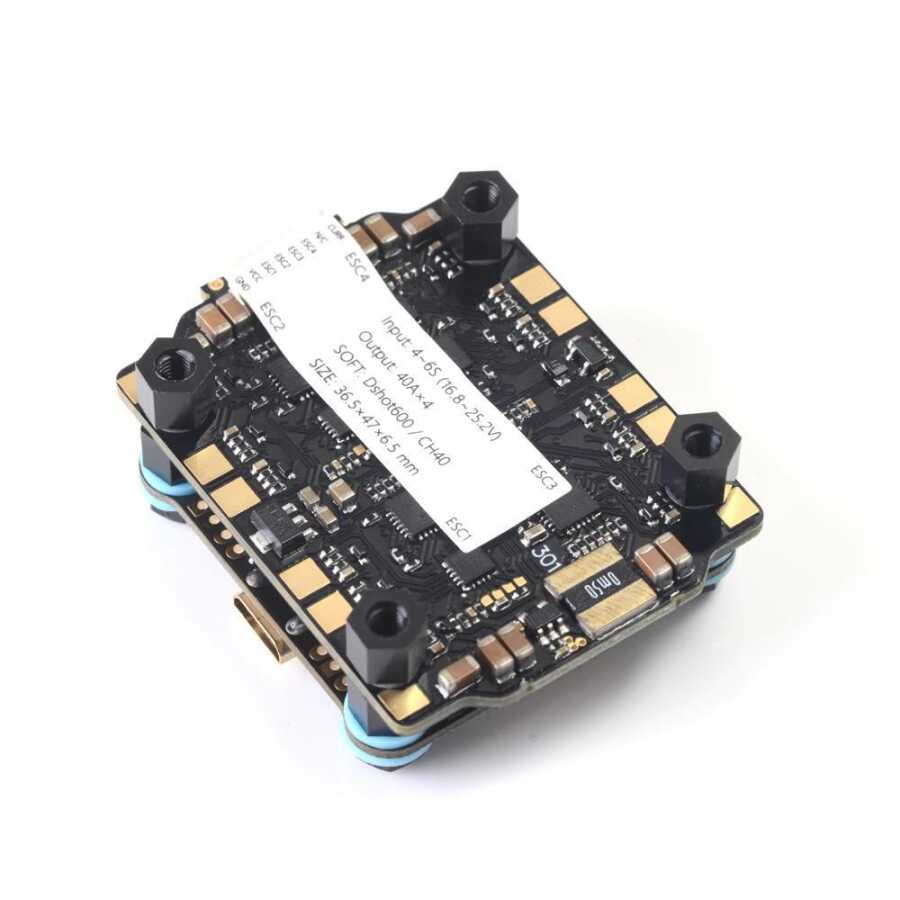

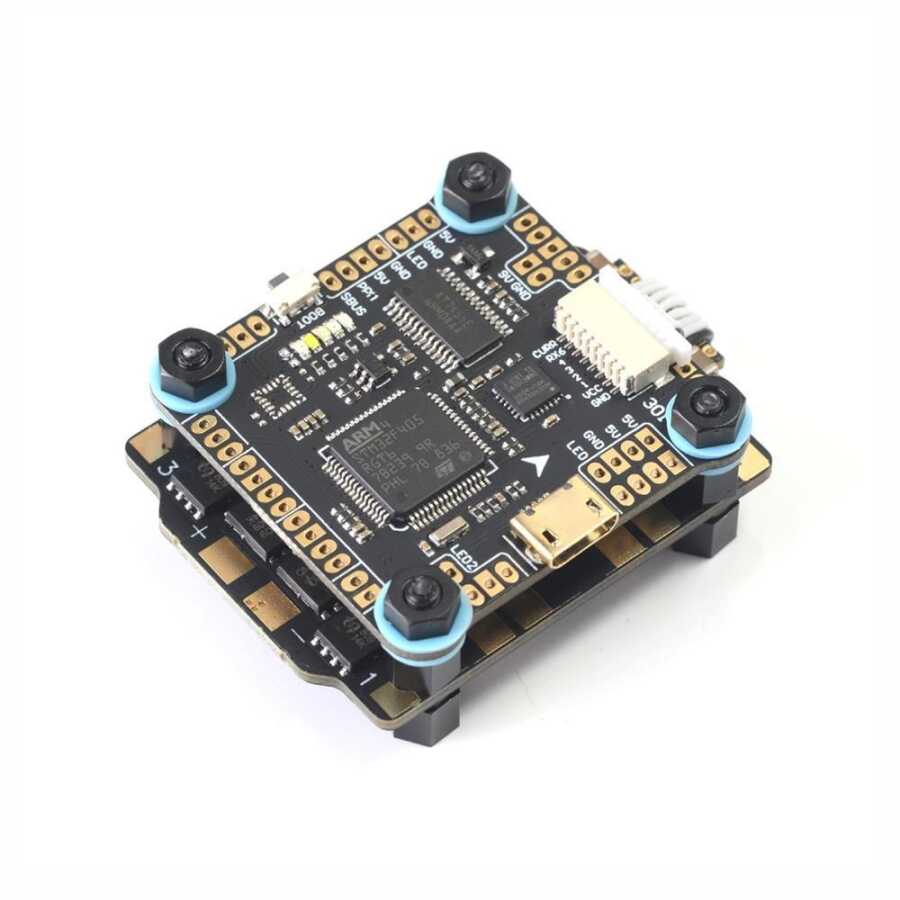

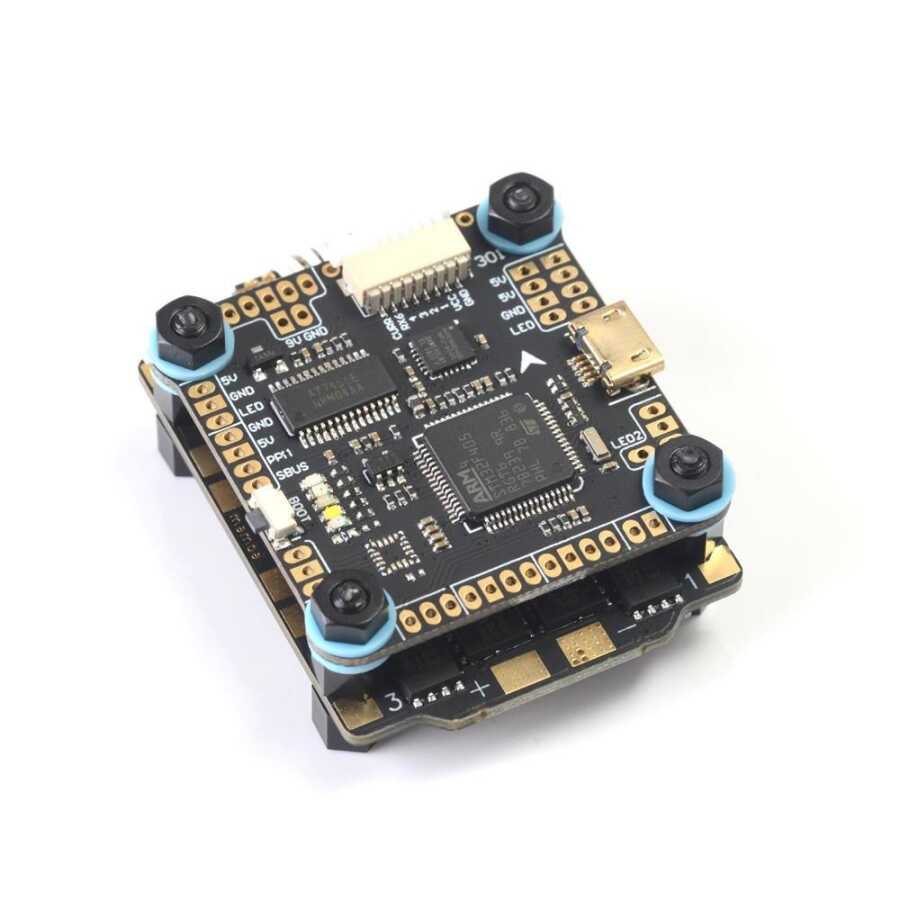

Mamba F405 Betaflight Flight Control Card is a flight control card that has a supply voltage between 4-6S (16.8-25.2V) and can output 4x40A. It is the controller card. This board is also an FC-ESC combination. In other words, it is both a power distribution card and a flight control card.
Mamba F405 Features:
Mamba F405 FC
Item name: F405 Betaflight Flight Controller
Input power: 16.8-25V (4-6S)
BEC: 5V / 1.5A
MCU: STM32F405
Gyro: MPU6000
Flash: 16 MB
OSD: AT7456
Mounting hole: M3
Weight: 6g
Mamba F40 ESC
Item name: Mamba F40HV ESC
Input voltage: 3-6S (12.6V ~ 25V)
Continuing current: 40A×4
Explosion current: 40/50A (6S)
BEC: NO
PERIOD: 169A
Capacity: Samsung 564UF (47UF × 12pcs)
About Current: 50A/4S OR 40A/5S (Same total power)
