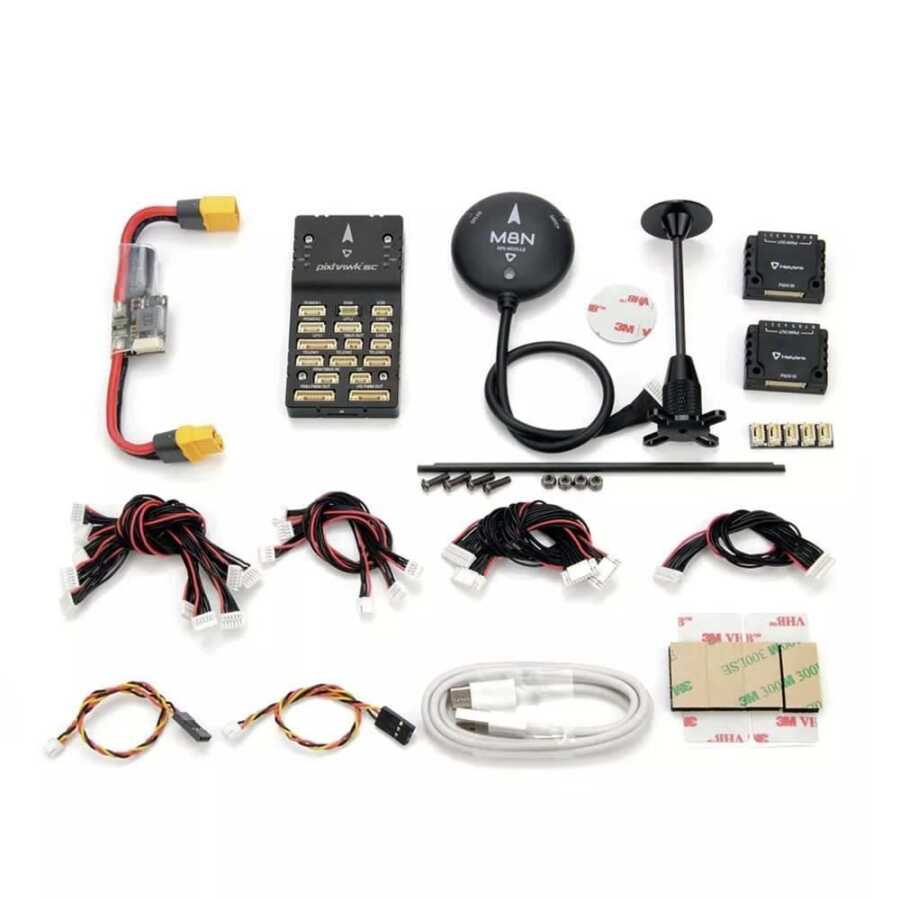

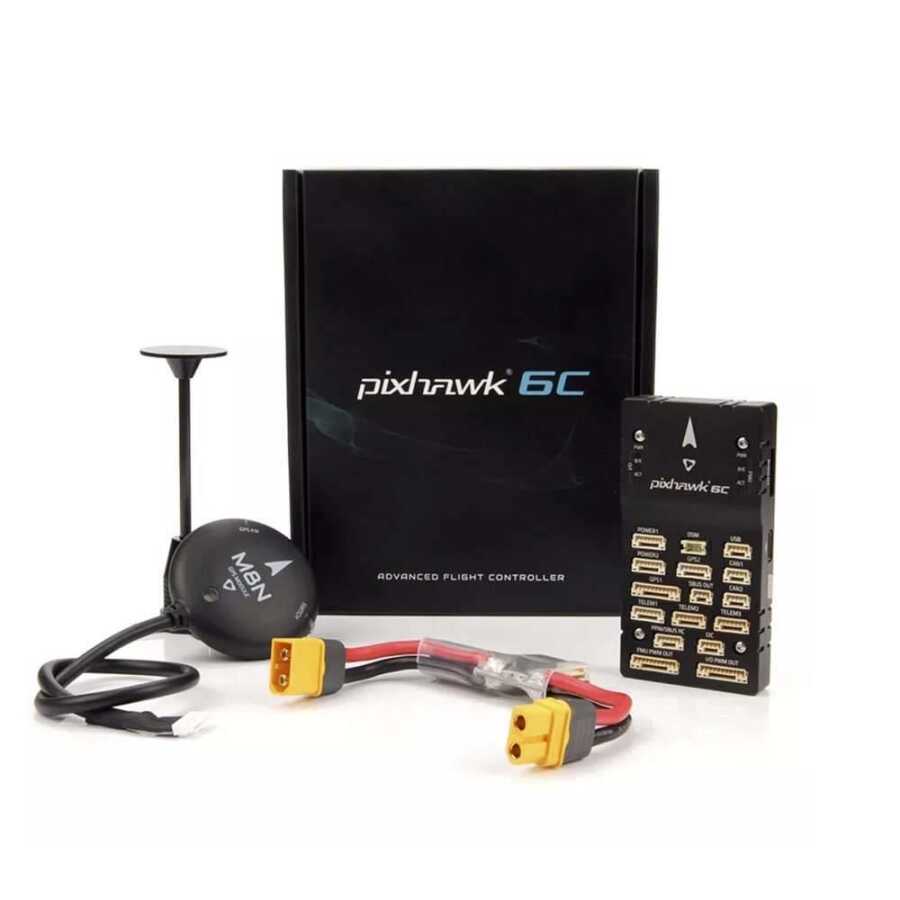

Pixhawk® 6C is based on the successful Pixhawk® FMUv6C Open Standard It is the latest update to the Pixhawk® family of flight controllers. It comes with PX4 Autopilot® pre-installed.
Inside the Pixhawk® 6C you can find the STMicroelectronics®-based STM32H743 paired with Bosch® & InvenSense® sensor technology; This gives you the flexibility and reliability to control any type of autonomous vehicle, suitable for both academic and commercial applications.
Pixhawk® 6C's H7 microcontroller It includes the Arm® Cortex®-M7 core running up to 480 MHz, has 2MB flash memory and 1MB RAM. With updated processing power, developers can be more productive and efficient with their development work, enabling complex algorithms and models.
The FMUv6C open standard is designed to be cost-effective while having IMU redundancy Includes onboard high-performance, low-noise IMUs. It is a vibration isolation system that filters out high-frequency vibration and reduces noise to provide accurate readings, allowing the instruments to achieve better overall flight performances.
Pixhawk® 6C was developed by developers at corporate research laboratories. , perfect for beginners, academics (research, professors, students) and commercial application.
PM02 V3 12S Power Module
PM02 Power Module is a simple way to provide clean power to your autopilot flight controller from a LiPo battery, as well as current consumption and battery voltage measurements via a 6-pole cable. The built-in switching regulator outputs 5.2V and a maximum of 3A for up to a 12S LiPo battery. The Power Module comes fully assembled with XT60 connectors and is shrink-wrapped for protection.
The Power Module houses an autopilot flight controller, an RC receiver, and APM accessories. Designed to power (GPS, radio). It is not designed to power servos. Use your aircraft's own ESC/BEC for this.
GH terminal is also compatible with Pix32, Pixhawk4, Pixhawk4 mini, Pix32v5 and Durandal.
M8N GPS
M8N GPS features a UBLOX M8N module, IST8310 compass, tri-color LED indicator and a safety switch. There are 3 different connector options for different purposes.
This module is shipped with a baud rate of 38400 5H.
