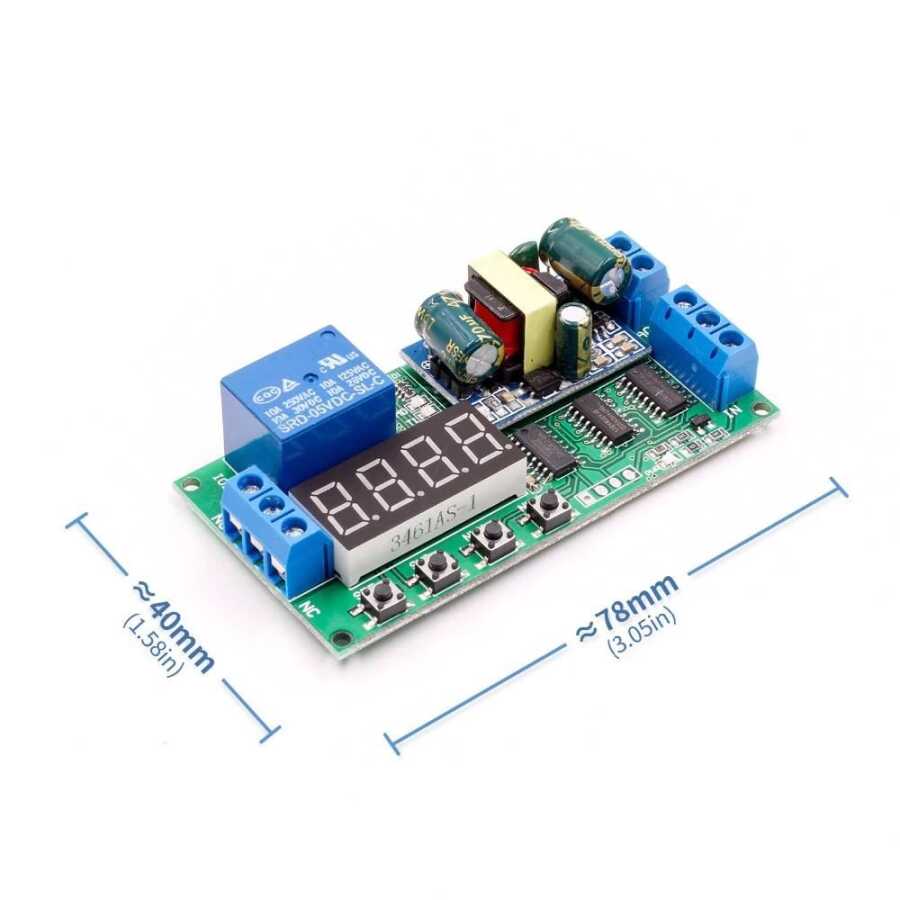

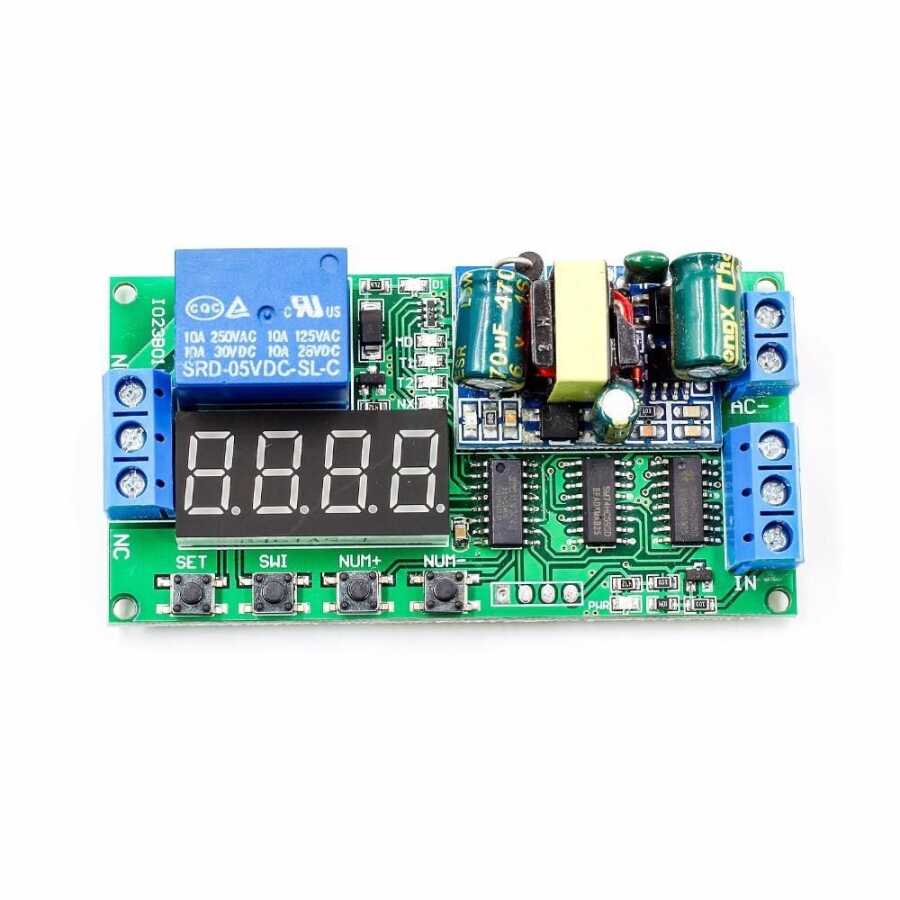

AC 220V Time Adjusted Relay Module PLC Compatible
Timed relay module with 16 different functions with a high voltage range that you can operate with AC 220v or DC 5V. Time setting can be made up to 270 hours.
AC Time Relay Functions:
Functions 1-8 are activated as soon as the power is supplied. A trigger signal is required for functions 9-18.
Function 1:
T1 Time is selected, the relay, which remains closed for T1 time, is then opened. It repeats when the signal arrives.
Function 2:
The relay remains open for T1 time and then closes. It repeats when the signal arrives.
Function 3:
The relay remains closed for the T1 period and then remains open for the T2 period. It repeats when the signal arrives.
Function 4:
The relay remains open for the duration of T1 and then remains closed for the duration of T2. It repeats when the signal arrives.
Function 5:
The relay remains closed for the T1 period and then remains open for the T2 period. It makes this loop an infinite number of times.
Function 6:
The relay remains open for T1 time and then remains closed for T2 time. It makes this cycle an infinite number of times.
Function 7:
The relay, which remains closed for the T1 period, then remains open for the T2 period. It repeats this cycle for the number of times you specify.
Function 8:
The relay remains open for the duration of T1 and then remains closed for the duration of T2. . It repeats this cycle the number of times you specify.
Function 9:
It is the version of Function 1 that is activated with a trigger signal.
Function 10:
It is the version of Function 2 activated by the trigger signal.
Function 11:
It is the version of Function 3 activated by the trigger signal.
Function 12:
It is the version of Function 4 activated by the trigger signal.
Function 13:
It is the version of Function 5 activated by the trigger signal.
Function 14:
It is the trigger signal activated version of Function 6.
Function 15:
It is the trigger signal activated version of Function 7.
Function 16:
Trigger signal of Function 8 This is the version activated by .
