Arkbird 5W 433MHz 10 Channel Receiver - Transmitter

Ratings & Reviews (0)
Comment
Show More: RF Transceiver
Brand: Motorobit
Product Code: KHB.RFM.01.000067
Stokta son 1 ürün
9,900.00 TL + VAT
VAT Included: 11,880.00 TL

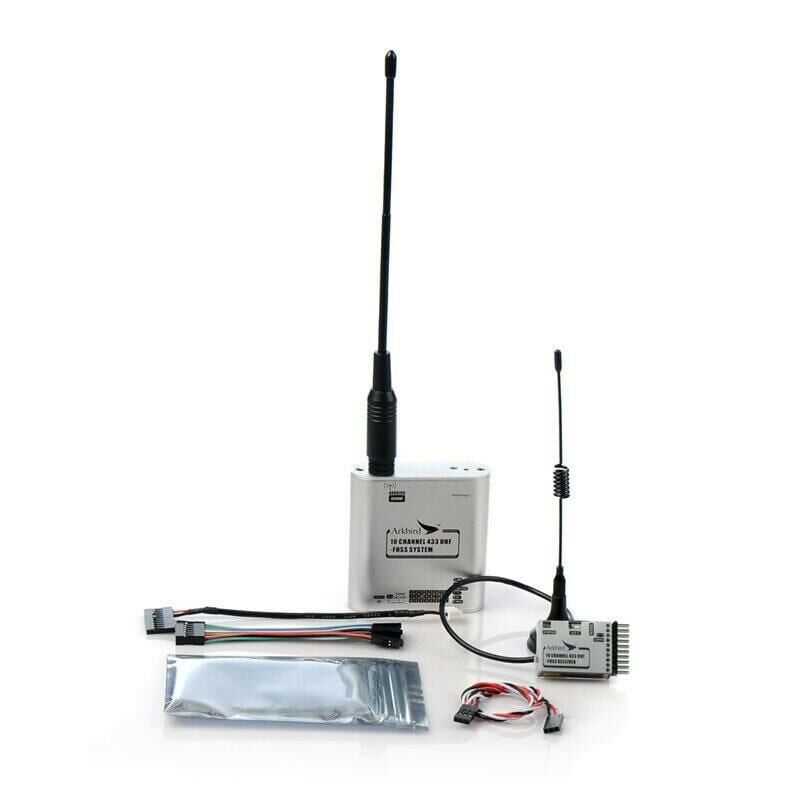

Arkbird 5W 433MHz Receiver - Transmitter


Arkbird-433UHF is one of the most advanced, stable long-distance 10-channel modules on the market. Receiver with PPM/RSSI output. Repeater mode can be compatible with all radio TXs. For long range FPV flight, Arkbird produced this module and repeater station radio system compatible with all transmitters. You can plug this transmitter into the module pins on the back of your PPM transmitter or use it as a repeater station by plugging it into any receiver, making it the most versatile and easy-to-use unit for long-range FPV flights. It has adjustable power output between 100mw-1400mw providing excellent range and operates in FHSS for effective frequency hopping.
Fully compatible with Arkbird autopilot and OSD system, 3-wire plug and provides full 10-channel functionality by converting existing Channels 1-4 into Channels 7-10. This will also allow the Arkbird unit to control a camera gimbal with adjustable stability boost (Arkbird OSD firmware needs to be upgraded to v3.1020 or newer). This unit truly is the easiest, most reliable and simple solution for long range FPV flying and since it is made by Arkbird you know it will work very well.


Features:

  • Dimensions (Transmitter): 73 x 70 x 24 mm
  • Antenna Length (Transmitter): 201mm
  • Weight: (Transmitter with Antenna): 116g
  • Dimensions (Receiver): 44 x 26 x 10.5 mm
  • Antenna Length (Receiver): 155mm
  • Weight (Receiver with Antenna): 26g
  • Frequency: 433MHz
  • Radio Output: 100mw-1400mw
  • Power Input (Transmitter): 2-3s (7-12.6v)
  • Power Input (Receiver): 2-3s (4-12v)
  • Peak Current (Transmitter): 400mA @ 12v
  • Peak Current (Receiver): 120mA @ 5v
  • Range: Full Range
Weight(Kg)
2
