ASY-3D AC 220V Delayed DPDT Digital Time Relay - 99.9M

Ratings & Reviews (0)
Comment
Show More: Timed Relay Boards
Brand: AHLV
Product Code: RLK.ZMN.01.000039
Stokta son 4 ürün
563.20 TL + VAT
VAT Included: 675.84 TL

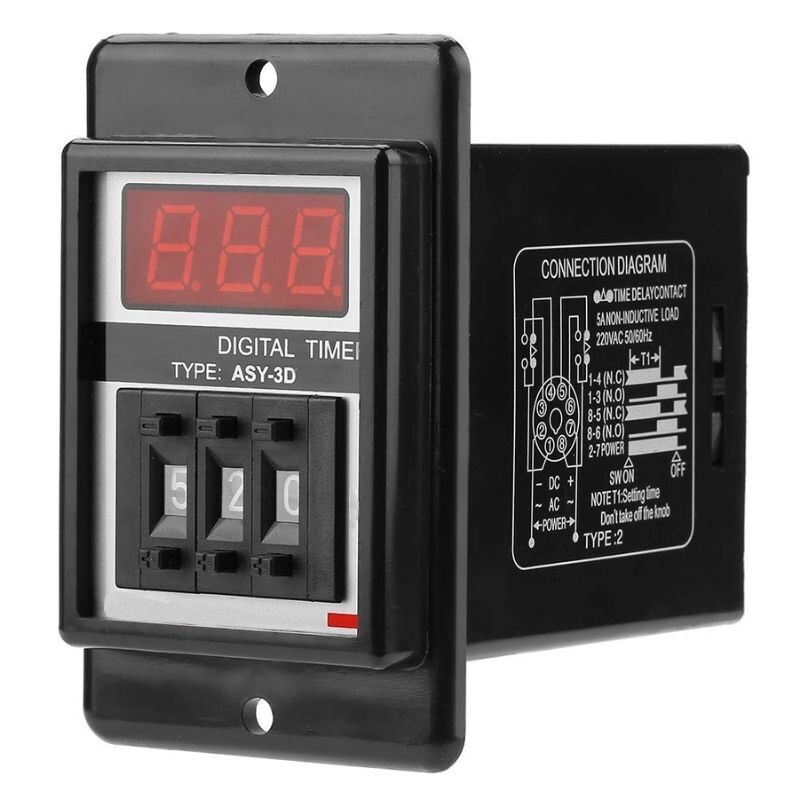

ASY-3D AC 220V Delayed DPDT Digital Time Relay - 99.9M


ASY-3D AC 220V Delayed DPDT Digital Time Relay - 99.9M. It is a delayed time relay that can be adjusted between 0 and 99.9 minutes. It has a digital display. Time adjustment can be made with the buttons at the bottom of the screen.

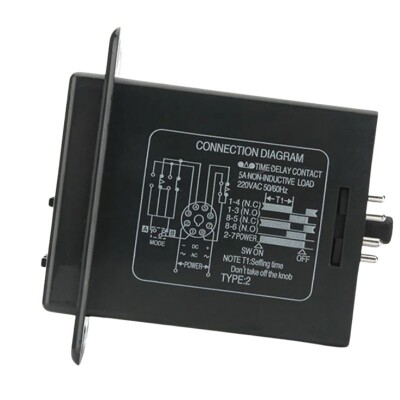

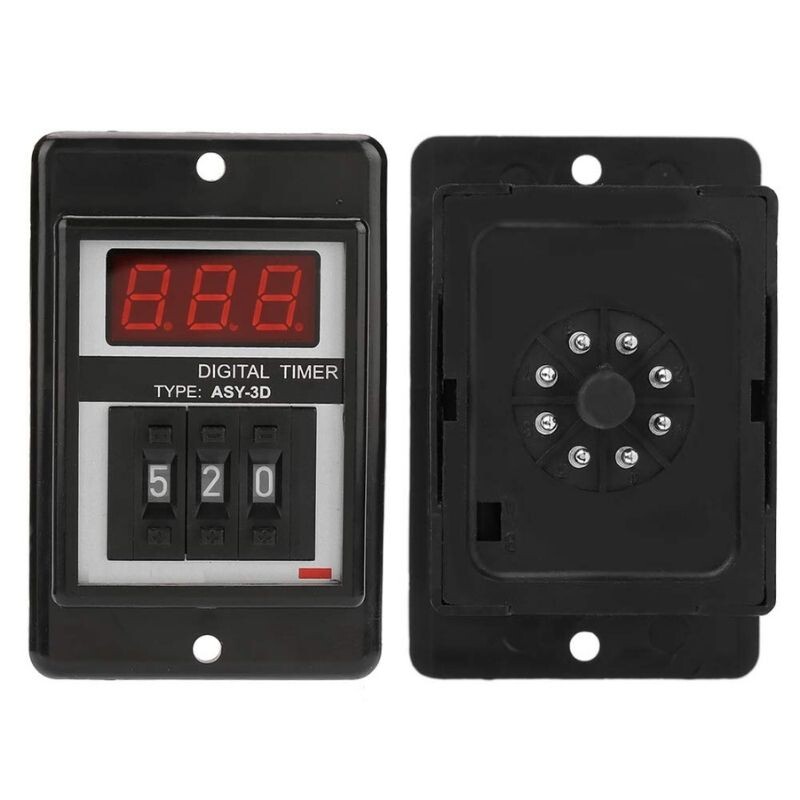

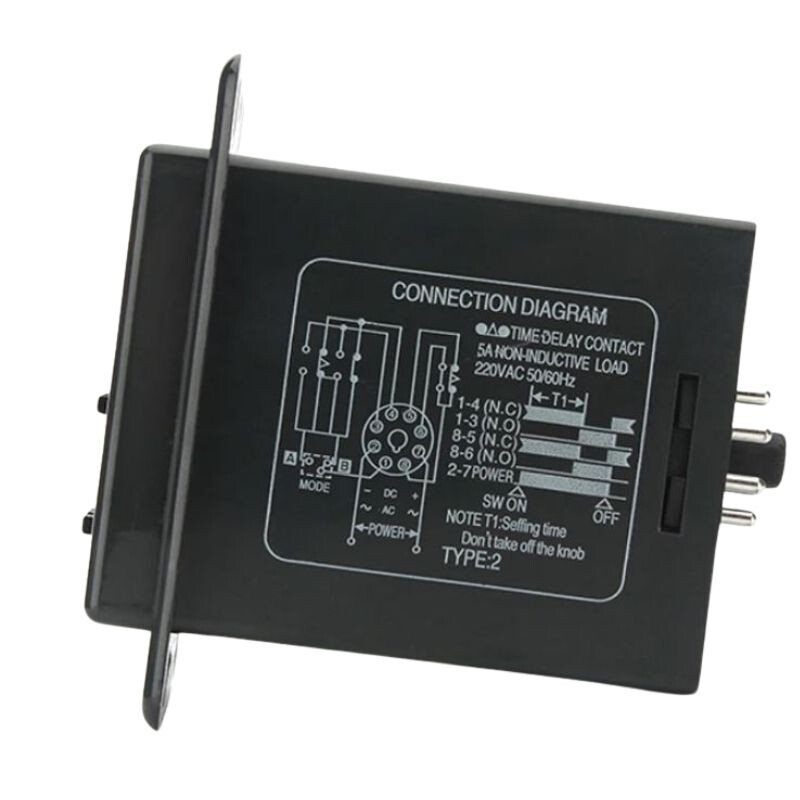

Adjustments such as delay or NO-NC contact are provided via connection. The product has 8 pins. Delay time or no-NC contact can be adjusted with different connections on 8 pins.

Technical Specifications

  • Model: ASY-3D
  • Adjustable Time: 0-99.9M
  • Operating Voltage: 220V AC
  • Contact Type: DPDT
  • Operating Mode: On-Delay
  • Rated Current: 10A
  • Power: 5VA
  • Frequency: 50/60Hz
  • Size: 85x57x86mm
Weight(Kg)
0.3
