ASY-3D DC 24V Delayed DPDT Digital Time Relay - 999S

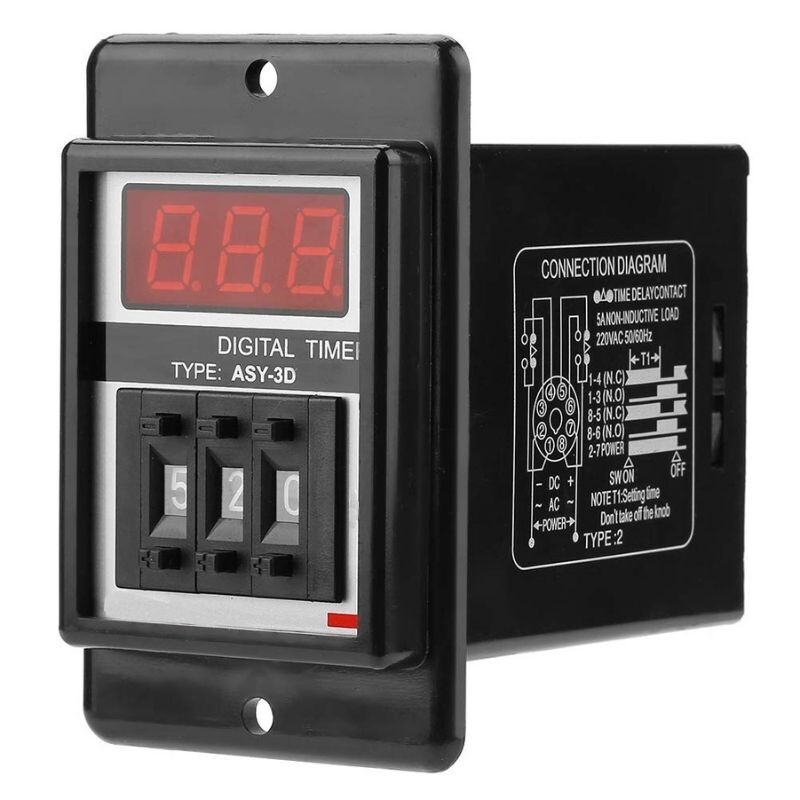

ASY-3D DC 24V Delayed DPDT Digital Time Relay - 999S. It is a delayed time relay that can be adjusted between 0 and 999 seconds. It has a digital display. Time adjustment can be made with the buttons at the bottom of the screen.

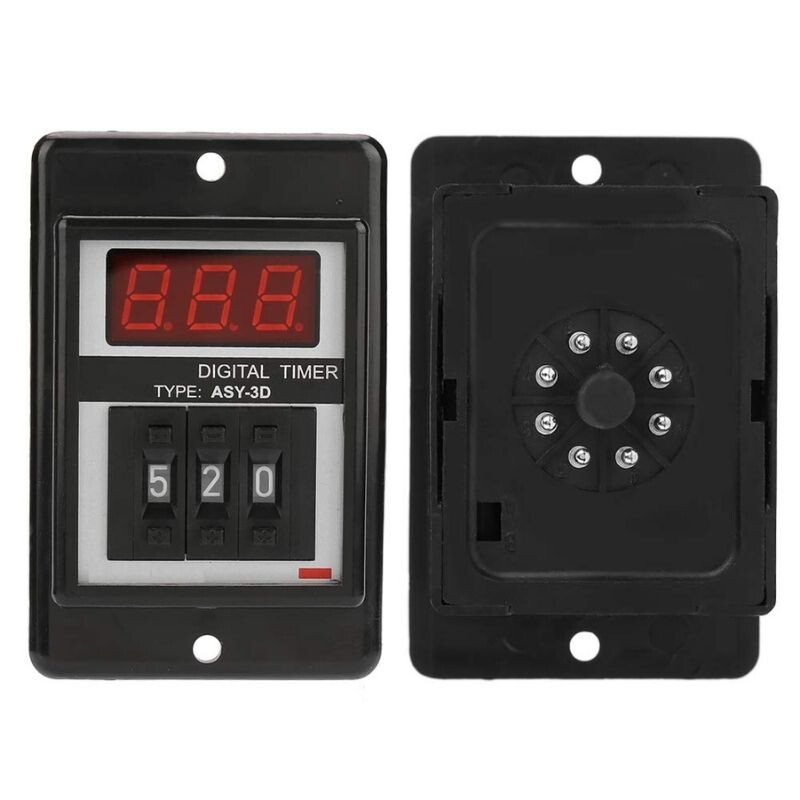

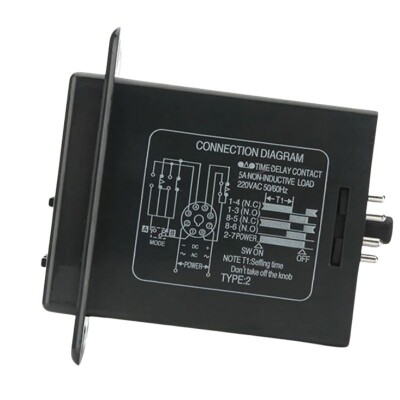

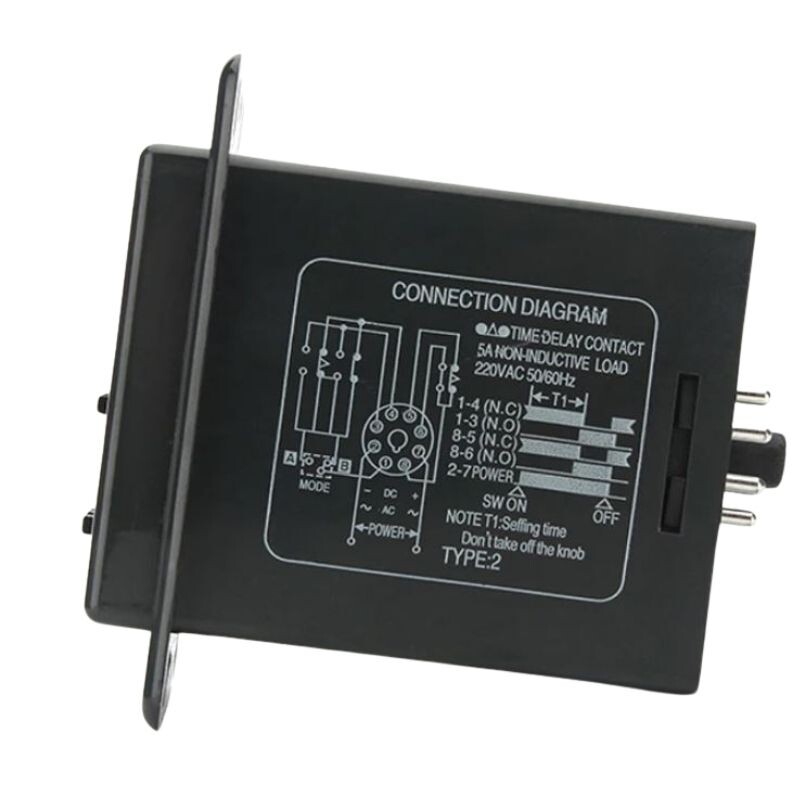

Adjustments such as delay or NO-NC contact are provided via connection. The product has 8 pins. Delay time or no-NC contact can be adjusted with different connections on 8 pins.
Technical Specifications
- Model: ASY-3D
- Adjustable Time: 0-999S
- Operating Voltage: 24V DC
- Contact Type: DPDT
- Operating Mode: On-Delay
- Rated Current: 10A
- Power: 5VA
- Frequency: 50/60Hz
- Size: 85x57x86mm
