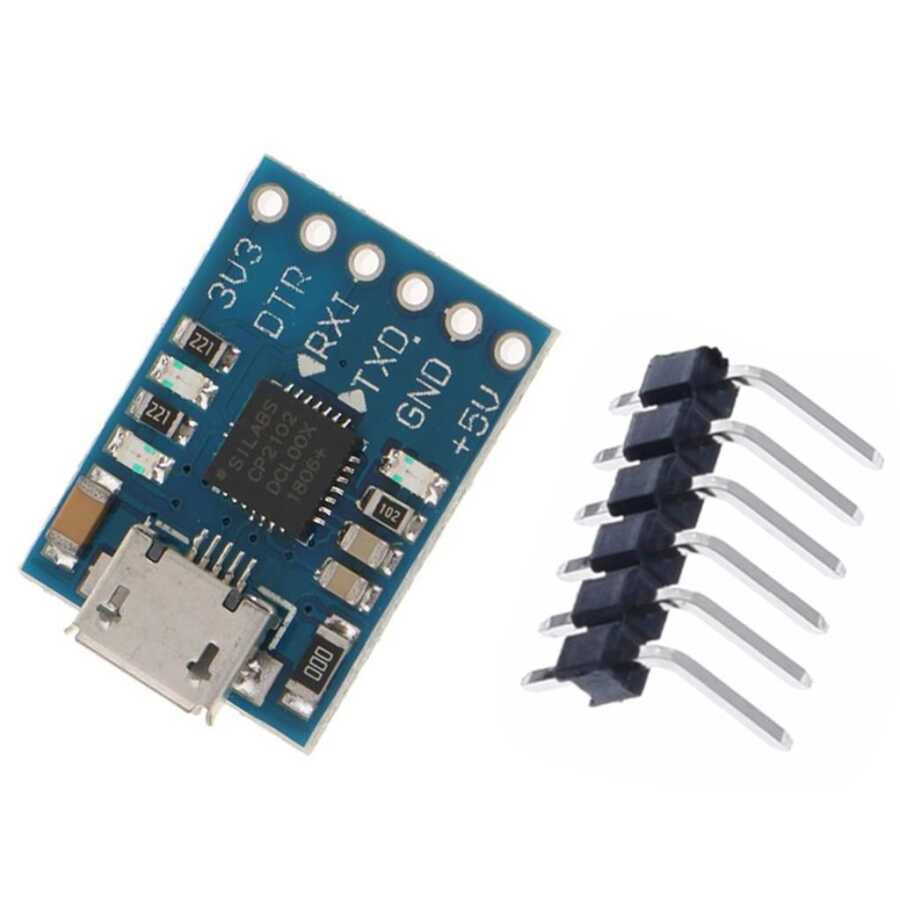

CP2102 Micro USB 2.0 UART TTL 6Pin Serial Converter Module
Rapid prototyping projects requiring RS232/PC interface to robotics and microcontroller-based projects using 3.3V or 5V TTL logic It is a small, useful module for This module converts signals between RS232 voltage levels and TTL voltage levels.
Technical Specifications:
5P – USB type A specification 2.0 compliant with full speed 12 Mbps
Standard USB type A male and TTL 5 pin connector
5 pin interface signals for 3.3V,TXD,RXD,GND and 5V
Baud rates: 300 bps to 1.5 Mbps
Receives byte buffer; 640 bytes transmission buffer
Hardware or X-On/X-Off negotiation supported
Event character support End of line transmission< /DIV>
- Windows 8.1 / 7 / vista / xp / 98, Mac OS-X / OS-9, Linux
Size: Approx. 20x16mm
