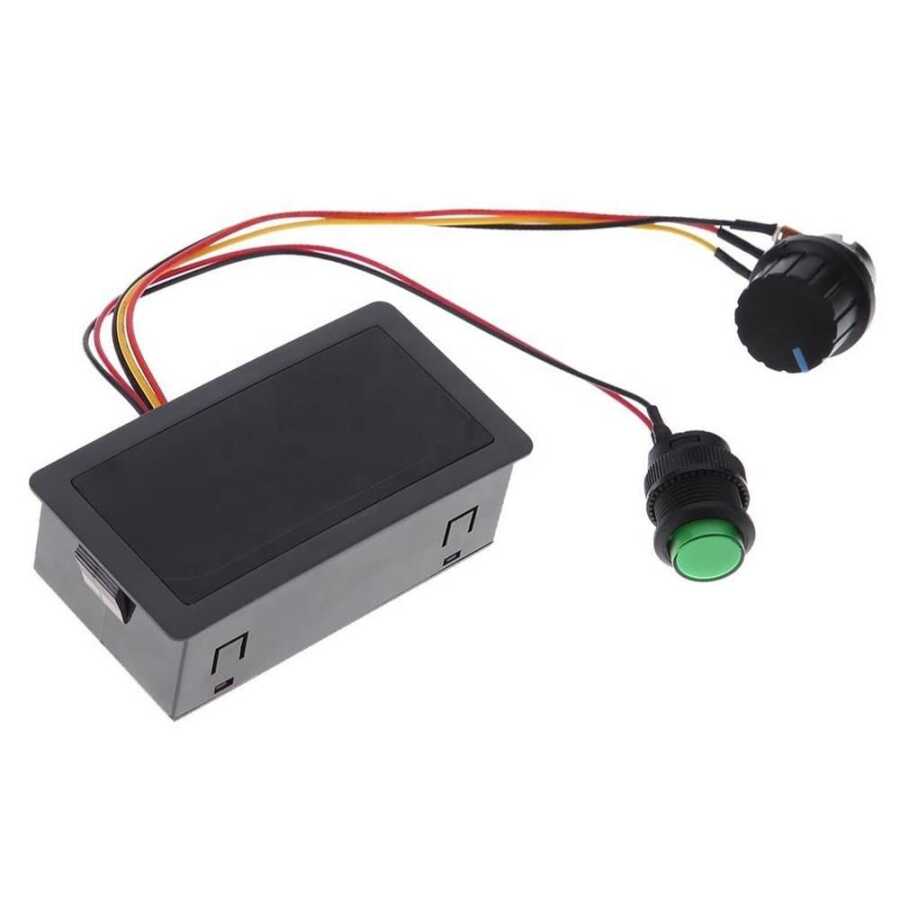

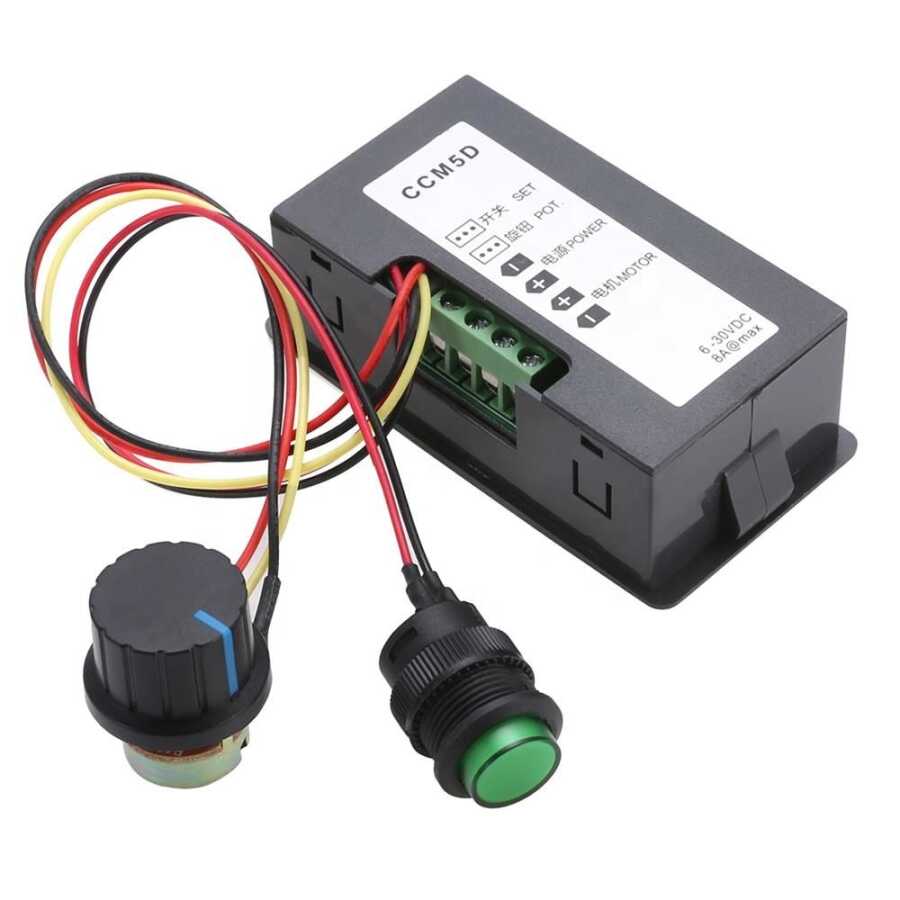

CCM5D DC Motor Speed Regulator, Pulse Width Modulated ( It controls the speed of a DC motor by adjusting PWM. Large 0.56 inch 3-digit LED display numbers allow viewing in the most adverse conditions. The display range of the 3-digit LED display is between "000” - "100”. (For example, when "60" is displayed, it means that the PWM output duty cycle is 60%).

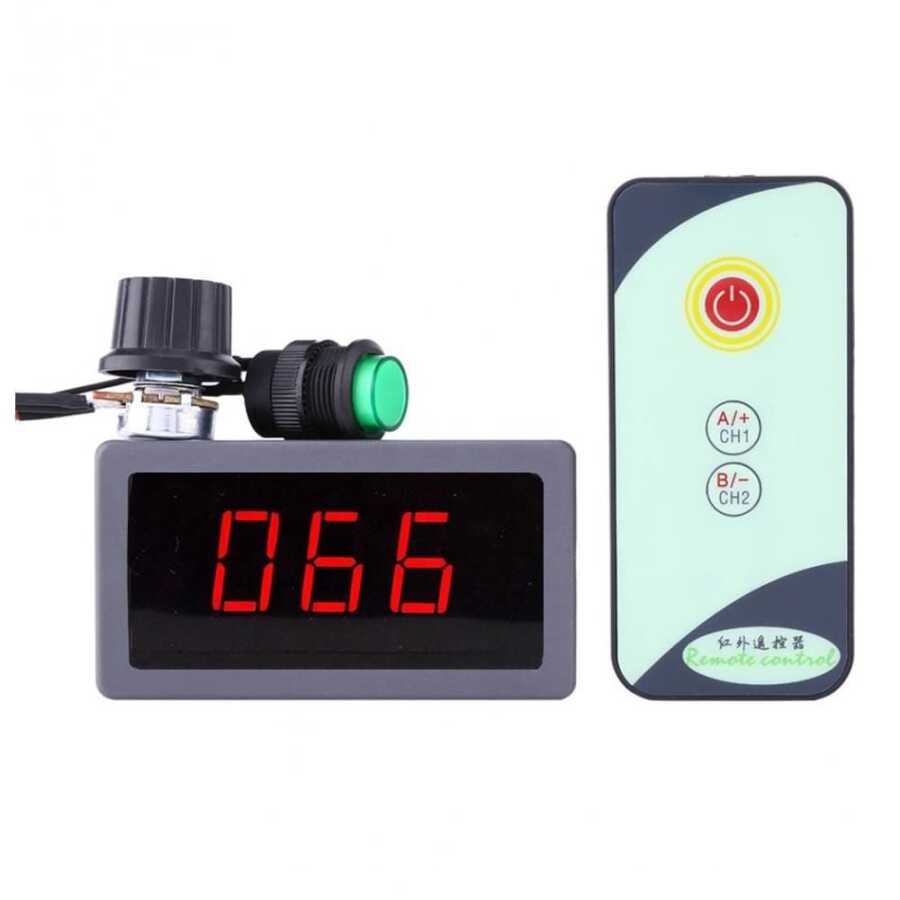

You can turn it on and off, increase or decrease the speed, with the remote control. Remote control distance is 3-4m is.
Technical Specifications
Input supply voltage range: DC 6V-30V
Rated current: 5A, Max 8A
PWM frequency: 16kHz
Adjustable speed range: 0-100%.
Product size: 79 x 42 x 24 mm
Potentiometer: resistor B100K; wire length 20cm
WARNING:
-Before trying to wire the drive make sure the power is off.
-DO NOT CONNECT THE POSITIVE AND NEGATIVE POWER LOADS REVERSELY, THIS WILL DAMAGE THE CONTROLLER.
-TO CHANGE THE DIRECTION OF THE MOTOR, SWITCH THE POSITIVE AND NEGATIVE CABLES OF THE MOTOR. DIV>
1. Connect the wires, refer to the “wiring diagram”.
2. Turn on the power and adjust the potentiometer.
3. The LED display shows the PWM output duty cycle.
