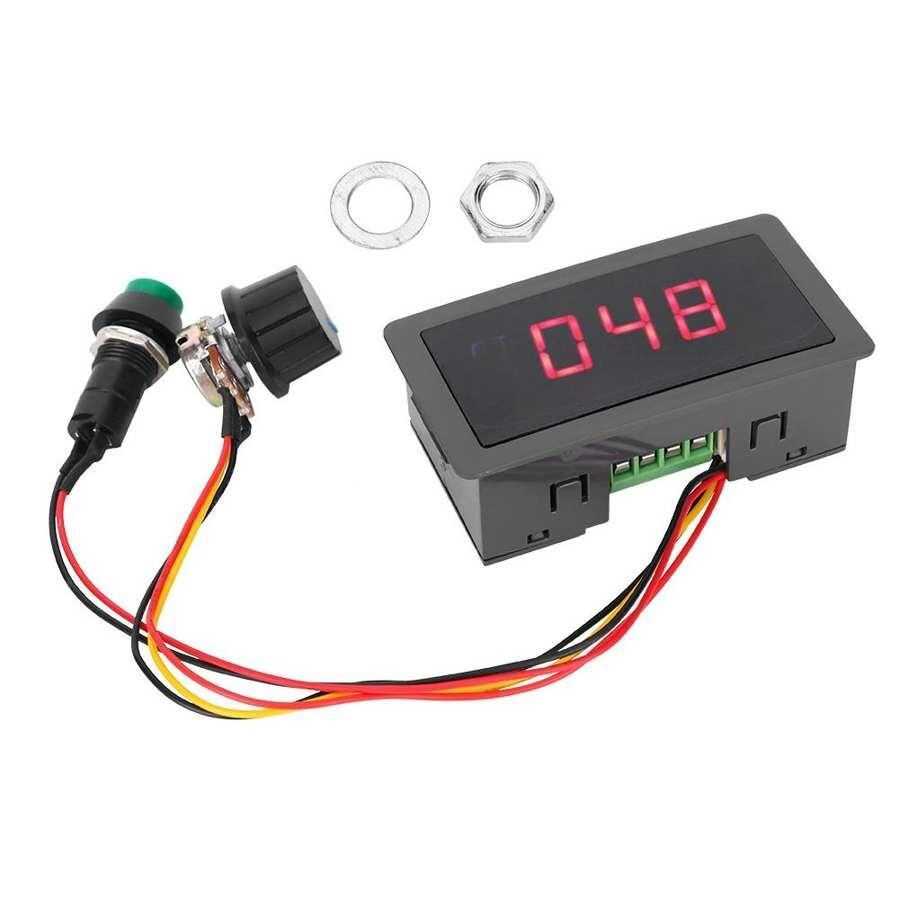

CCM5D DC Motor Speed Regulator with Pulse Width Modulation (PWM) by adjusting a DC controls the speed of the engine. Large 0.56 inch 3-digit LED display numbers allow viewing in the most adverse conditions. The display range of the 3-digit LED display is between "000” - "100”. (For example, when “60” is displayed, it means the PWM output duty cycle is 60%)
Specifications
Input supply voltage range: DC 6V -30V
Rated current: 5A, Max 8A
PWM frequency: 16kHz
Adjustable speed range: 0-100%.
Product size: 79 x 42 x 24 mm
Potentiometer: resistor B100K cable length 20cm
WARNING:
-Make sure the power is off before attempting to wire the drive.
-DO NOT REVERSE CONNECT THE POSITIVE AND NEGATIVE POWER LOADS THIS WILL DAMAGE THE CONTROLLER.
-TO CHANGE THE DIRECTION OF THE MOTOR, SWITCH THE POSITIVE AND NEGATIVE CABLES OF THE MOTOR.

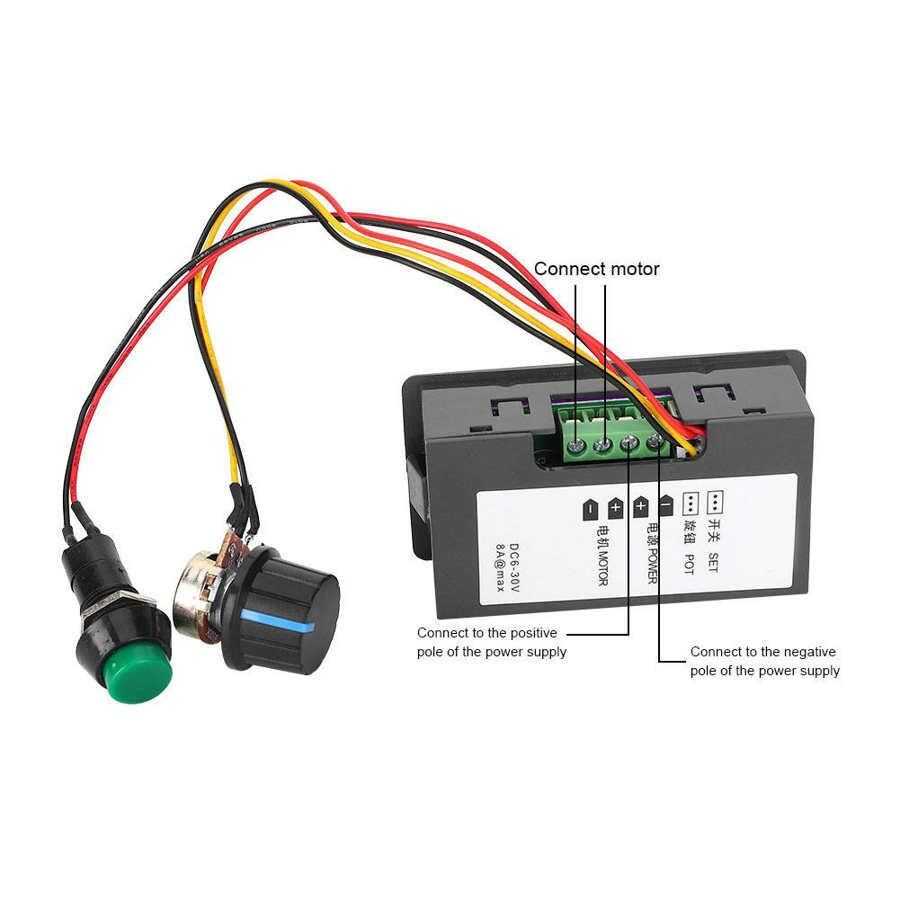

1. Connect the wires, refer to the "wiring diagram".
2. Turn on the power and adjust the potentiometer.
3. The LED display shows the PWM output duty cycle.
