DH48S-1Z 24V Timer Relay Module - With Reset and Stop Feature

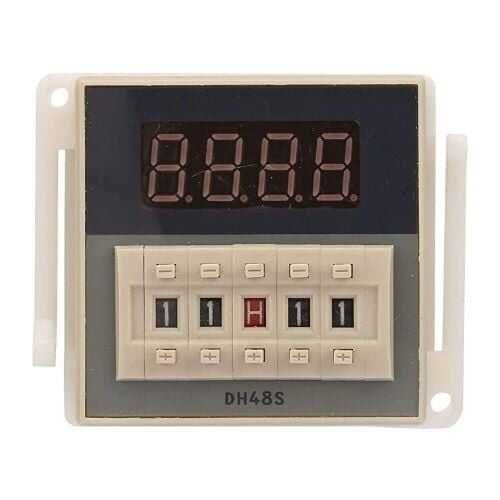

DH48S-1Z 24V Timer Relay Module - With Reset and Stop Feature.DH48S-1Z It is a timed relay module with Digital Display, working with 24V and capable of AC or DC switching. It is a circular delay type time relay, it opens and closes the circuit according to the preset cycle.
Circular Delay:
Applying the preset on-off time for the time relay cyclically when power is applied.
To use the Reset and Stop features, shown in the diagram below. It will be enough to connect the terminals together.
Do not apply voltage to the Reset or Stop terminals, otherwise the device will be damaged!
Technical Specifications
- Operating Voltage: 24V DC
- Operating Mode: Circular Delay
- Repetition Error: <1%
- Number of Contacts: 1
- Contact Capacity: 220V AC 5A / 30V DC 5A
- Operating Temperature Range: -5 ~ 45°C
- Electronic Life: >10⁵
- Mechanical Life: >10⁸
- Dimensions: 105x58x48mm
