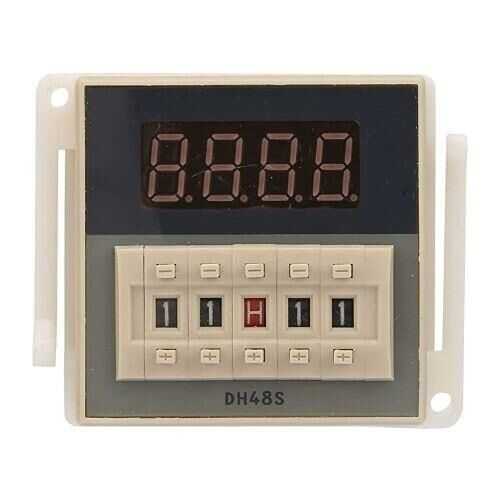

DH48S-2Z 12V Timer Relay Module - Dual Output
DH48S-2Z 12V Timer Relay Module - Dual Output.DH48S-2Z with Digital Display 12V It is a timed relay module capable of operating AC or DC switching. It is a circular delay type time relay, it opens and closes the circuit according to the preset cycle.
Circular Delay:
Cycically applying the preset on-off time for the time relay when power is applied.
Technical Specifications
- Operating Voltage: 12V DC
- Operating Mode: Circular Delay
- Repetition Error: <1%
- Number of Contacts: 2
- Contact Capacity: 220V AC 5A / 30V DC 5A
- Operating Temperature Range: -5 ~ 45°C
- Electronic Life: >10⁵
- Mechanical Life: >10⁸
- Dimensions: 105x58x48mm
Time Adjustment
Wiring Diagram
.png)
