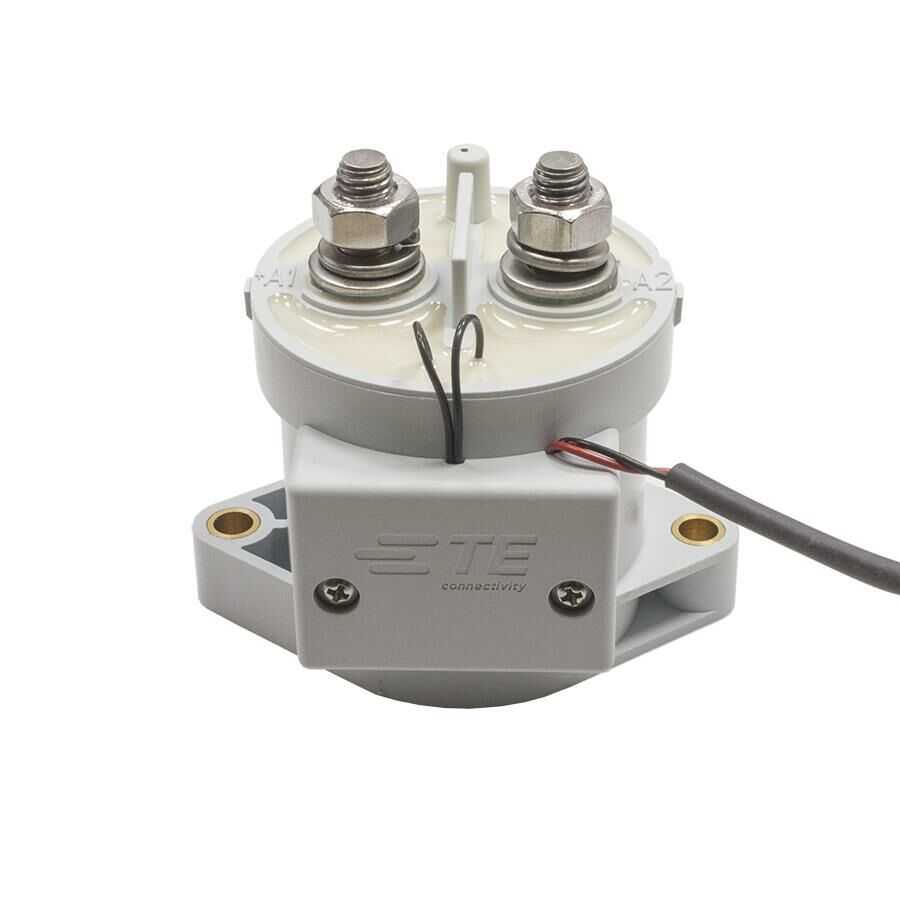

EVC500 12-24V High Voltage Relay - Contactor P/N 2098190-1
EVC 500 main contactors are used to connect the high voltage battery to the vehicle system quickly and easily in hybrid and electric vehicles. High voltage contactors provide current switching capabilities in harsh environments without oxidation or contamination of the contacts during long periods of non-operation. The EVC 500 contactor is designed with an optional built-in microcontroller or timer-based coil economizer.
Technical Specifications:
-
Coil Magnetic System: Monostable, DC
-
Coil Resistance (Ω): 3.14
-
Contact Switching Voltage (Max ) (VDC): 450
-
Rated Coil Voltage (VDC): 12
-
Rated Voltage (VDC): 450
-
Contact Limiting Breaking Current (A): 1560
-
Insulation Between Contacts and Coil Initial Dielectric (Vrms): 2920
-
Saving Coil Power Rating (Min) (mW): 1600
-
Contact Limiting Current (A): 650
-
Insulation Between Open Contacts Initial Dielectric Class (Vrms): 2920
-
Insulation Between Coil and Contact Class Initial Dielectric Class (V): 500- 1000
Usage Areas
-
DC high voltage - high current applications
-
Main contactors for hybrid, fully battery electric vehicles and fuel cell cars
-
Battery charging system
-
MKBMS Battery Management System
- Forklift
