HLK-7628N Serial WIFI OpenWrt Development Kit
HLK-7628N Serial WIFI OpenWrt Development Kit is an easy-to-use wifi with MT7628AN/MT7628NN chip that can be developed with Linux and OpenWRT operating systems. It is a development kit with module. With its rich interface and powerful processor, smart devices, cloud services, etc. It is widely used in applications. It has high data processing. MCU frequency is 580MHz. It supports IEEE802.11b/g/n as WIFI standard.

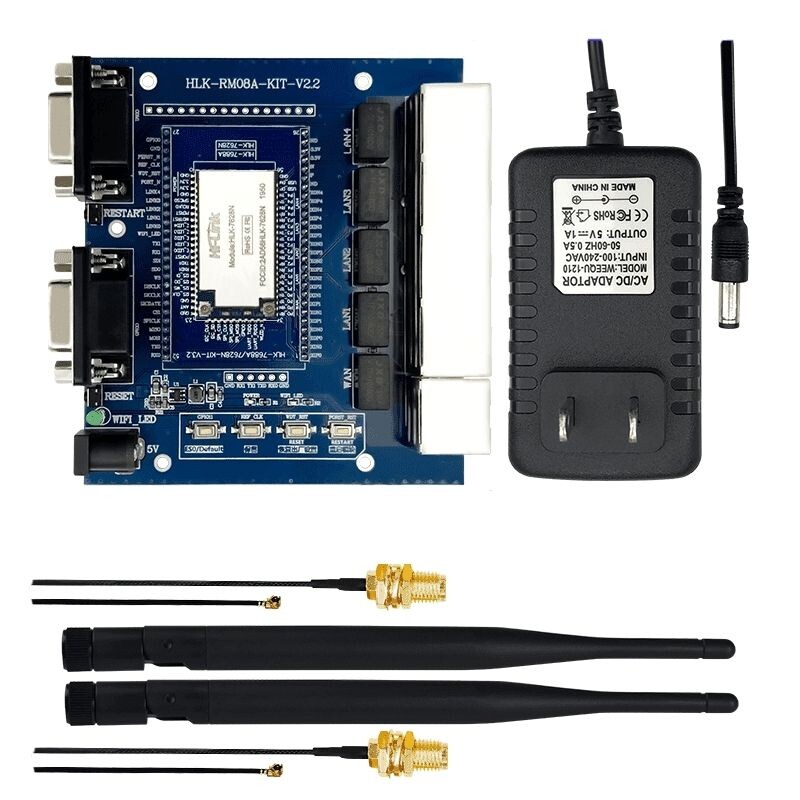

Kit Content
- HLK-7628N module
- 1x Adapter
- 2x Antenna
- 2x Sma to Ipex converter cable
Features
- Supply Voltage: 5V DC
- Processor: MT7628N / MT7628NN
- Kernel : MIPS24KEc
- Frequency: 580MHz
- RAM: DDR2 128MB
- Flash: 32MB
- 20/40 Channel
- 5 10/100M ethernet ports
- 300 Mbps IoT
- WIFI Standard: IEEE802.11b/g/n
- Interface: SPI/SD-XC/eMMC
- Peripheral Interface: WIFI, UART, SDIO, SPI, I2C, I2S, PWM, GPIO
- AP, STA and Router/Bridge support
- Linux, OpenWRT support
Product Block Diagram
Typical Application
