Industrial Isolated USB to RS232/RS485/TTL Multi-Bus Converter

Industrial Isolated USB to RS232/RS485/TTL Multi-Bus Converter

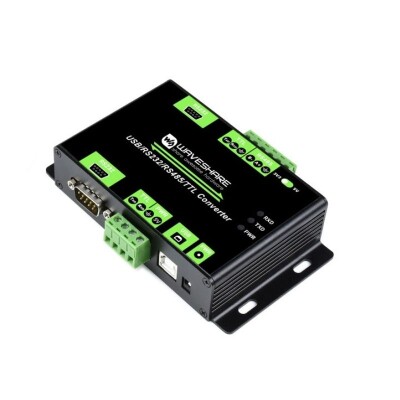

Industrial Isolated USB to RS232/RS485/TTL Multi-Bus Converter, Multibus Converter is an industrial-grade isolated converter that supports USB/RS232/TTL to RS232/485/TTL with internal power supply isolation, digital isolation and protection circuits such as TVS diode. It is easy to use and suitable for industrial control equipment or applications with high communication requirements.

For detailed information, please visit  wiki page.

Features

• Adopts original FT232RL for USB communication, fast communication, stable and reliable, better compatibility.
• SKU: 21411
• Built-in over-voltage, over-current protection circuits (no protection between the two power supplies of the main terminal).
• Built-in single-body power supply isolation, provide stable isolated voltage, isolated no extra power supply is required for the terminal.
• Built-in single-body digital isolation, to isolate the signal, reliable and jam-proof, low power consumption.
• Built-in TVS (Transient Voltage Suppressor) effectively suppresses the surge voltage and transient surge in the circuit, is lightning resistant and anti-electrostatic.
• Built-in resettable fuse and protection diodes ensure current/voltage stable output, provide overcurrent/overvoltage resistance and enhance shock resistance.
• Built-in TTL serial port 3.3V and 5V voltage level switch, allows the user to select the TTL level of Group B terminal.

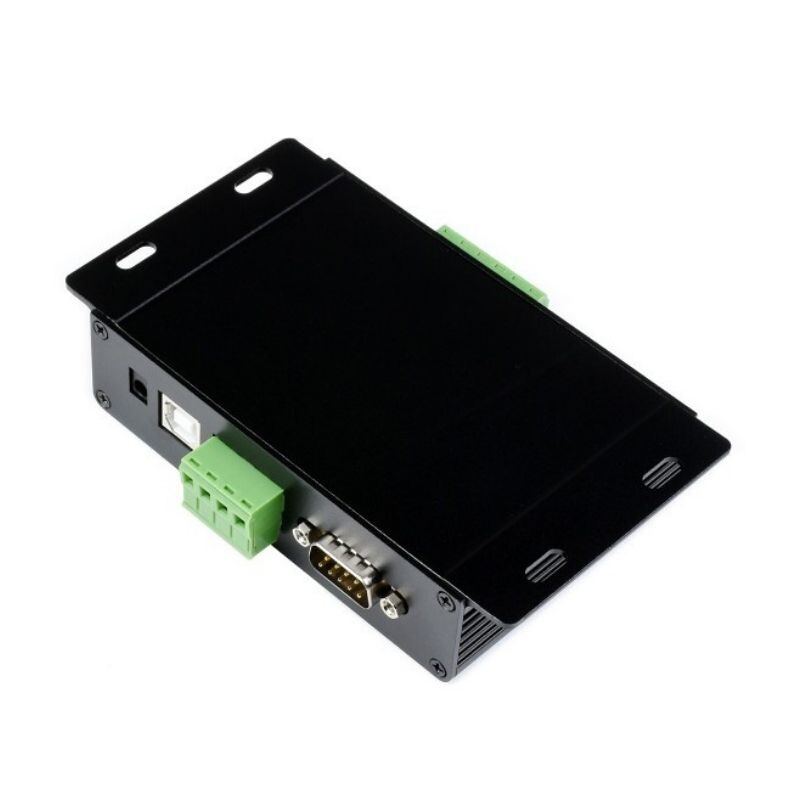

• Aluminum alloy housing with oxidized matte polished surface, sturdy and durable.
