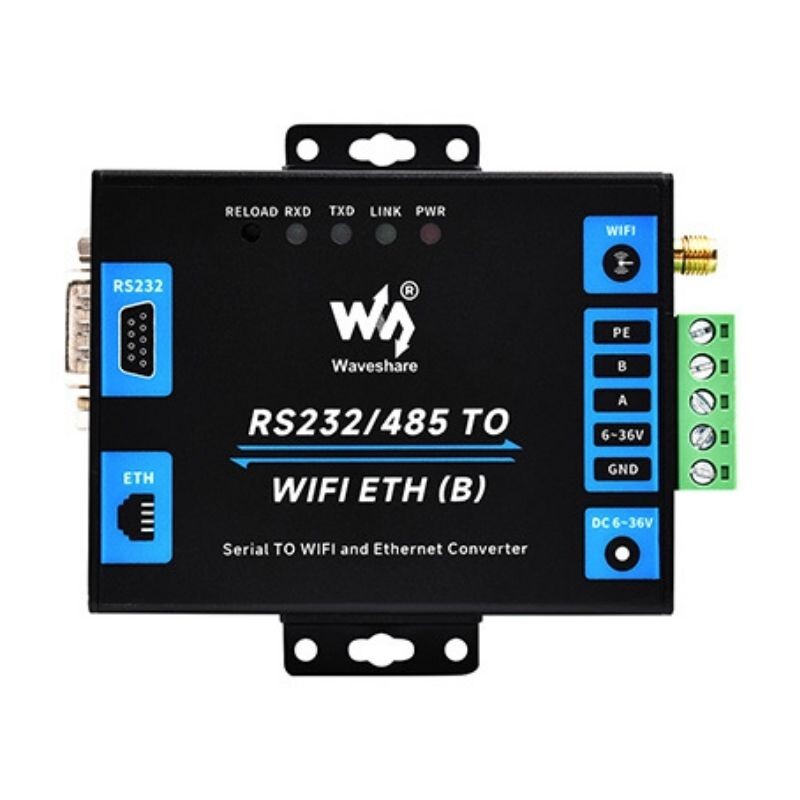

Industrial RS232/RS485 to WiFi and Ethernet Converter Module

Industrial RS232/RS485 to WiFi and Ethernet Converter Module

Industrial RS232/RS485 to WiFi and Ethernet Converter Module is an RS232 designed for Industrial environment /485 device is a data collector / IoT gateway. Serial server, Modbus gateway, MQTT gateway, serial port to HTTPD Client etc. It combines many functions in one, including: With RS232, RS485, WIFI and Ethernet interfaces, the module can realize functions such as serial port, serial port to WIFI. Ethernet to Ethernet, Ethernet to WIFI, etc. Built-in multiple power supply interfaces, support 6~36V wide range power supply. Industrial grade metal case design supports wall and rail mount installations, is small in size and easy to install. Suitable for applications such as data collection, IoT gateway, safety and security IoT and smart device monitoring.

Specifications

• Supply Voltage: 6~ 36VDC
• Ethernet: RJ45
• Wifi: 802.11b/g/n
• Uart:
  • RS232 ( ESD/EFT)
  • RS485 (ESD/EFT/Surge Protection)
• Frequency: 2.412 ~ 2.484GHz
• Wireless Network : Station / AP / AP+Station Mode
• Security: WPA-PSK / WPA2-PSK
• Encryption Type: TKIP / AES
• Transmission Power;
  • 802.11b: +19dBm (Max.@11Mbps)
  • 802.11g: + 18dBm (Max.@54Mbps)
  • 802.11n: +17dBm (Max.@HT20, MCS7); +17dBm (Max.@HT40, MCS7)
• Receiving Sensitivity;
  • 802.11b : -89dBm (@11Mbps)
  • 802.11g: -81dBm (@54Mbps)

  • 802.11n : -73dBm (@HT20, MCS7); -71dBm (@HT40, MCS7)
• Baudrate: 300~460800bps
• Parity Bit: none, odd, even, mark, space
• Data Bit: 5 ~ 9 bit
• Protocol: TCP / UDP / ARP / ICMP / DHCP / DNS / HTTP / MQTT
• Communication Method: TCP/IP , VCOM
• Operation Modes: Transparent transmission, serial command, HTTPD Client, Modbus TCP to Modbus RTU
• Operating Temperature Range: -40 ~ 85°C

For detailed information and software product guide.

Wiki

Size
