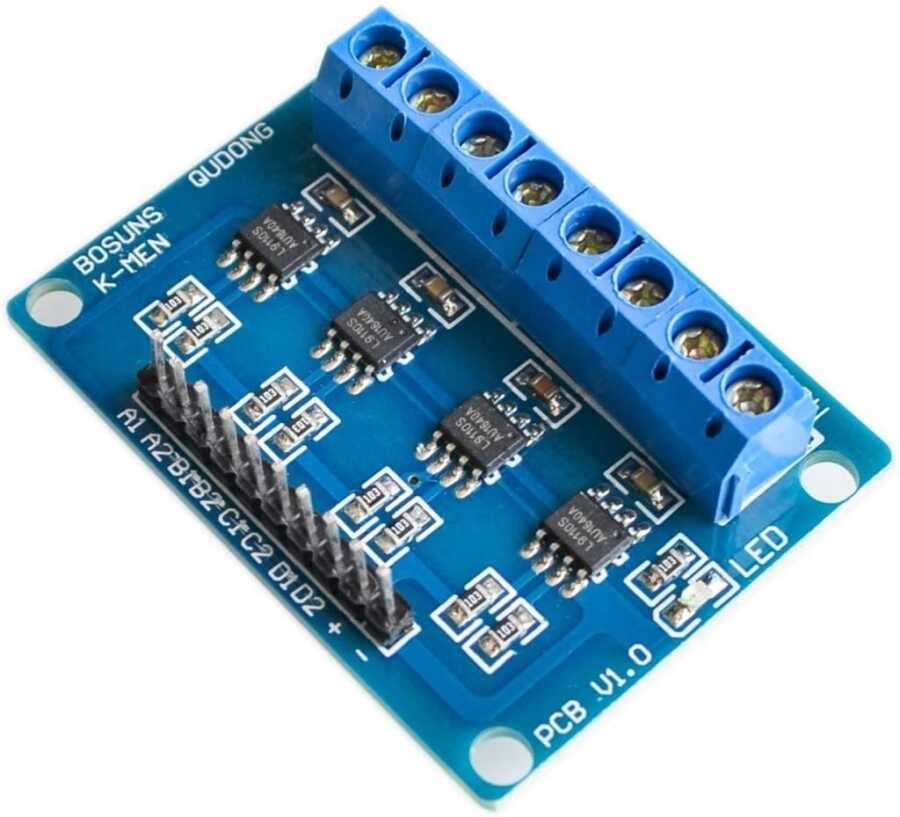

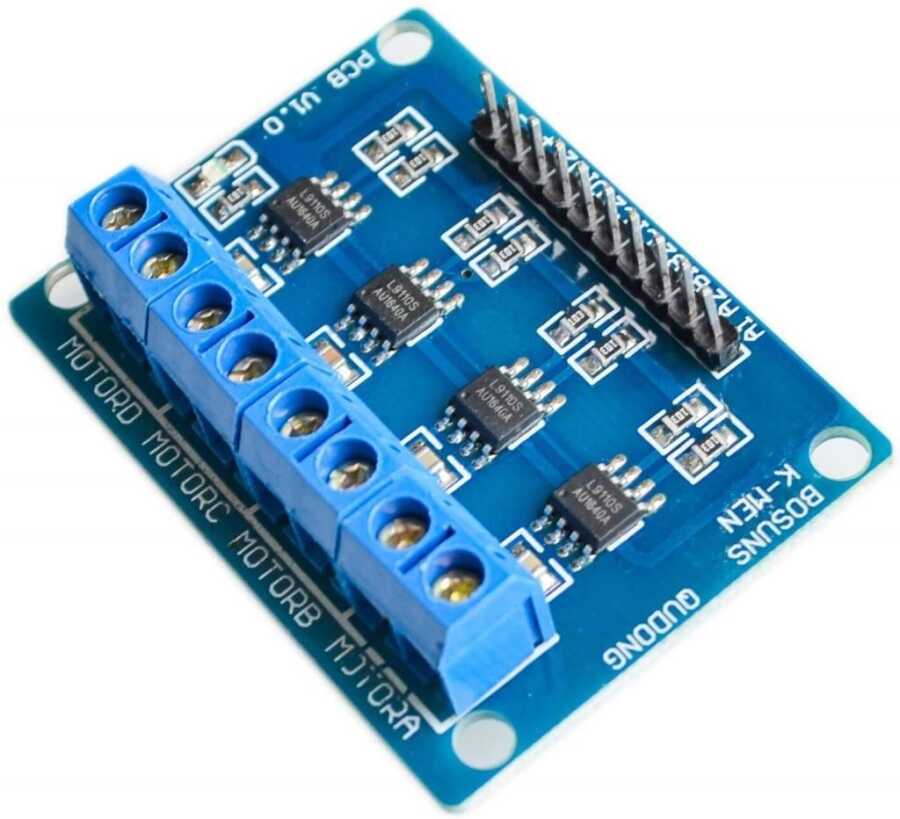

L9110 4 Channel Dc Motor Driver Card
L9110 4 channel motor driver is a circuit that allows you to control 4 motors through the same circuit. It is an ideal motor driver circuit, especially for use in 4wd vehicle construction. There are four L9110 motor driver ICs on the board. Four separate DC motors can be controlled in both directions with the driver card operating at input voltage between 2.5-12V.
Driver output voltage 7.6V. In this way, it is very easy to use with 6V motors. It can continuously deliver 800mA and instantaneous 2A per channel. Mini sumo can be easily used in line-following robots and a wide variety of motor control applications. There is no enable pin on the driver. Channels are constantly active. PWM can be applied directly to the input pins.
Pin Connections:
A1: 1.motor 1.input
A2: 1st engine 2nd input
B1: 2nd engine 1st input
B2: 2nd engine 2nd input
C1: 3rd engine 1st input
C2: 3rd engine 2nd input
D1: 4th engine 1st input
D2: 4th. motor 2nd input
GND: Ground connection
Vcc: Supply Voltage
Technical Specifications
It can control two separate motors independently of each other.
- It can provide 800mA current per channel.
- It can provide 7.5V voltage per channel.
- Dimensions: 31 mm x 22 mm
- Weight : 7 g
