Open-Smart 6 Channel 2.4GHz Receiver and Transmitter Switch Module

Ratings & Reviews (0)
Comment
Show More: RF Transceiver
Brand: Motorobit
Product Code: KHB.RFM.01.000066
Stokta 10+ ürün
387.20 TL + VAT
VAT Included: 464.64 TL

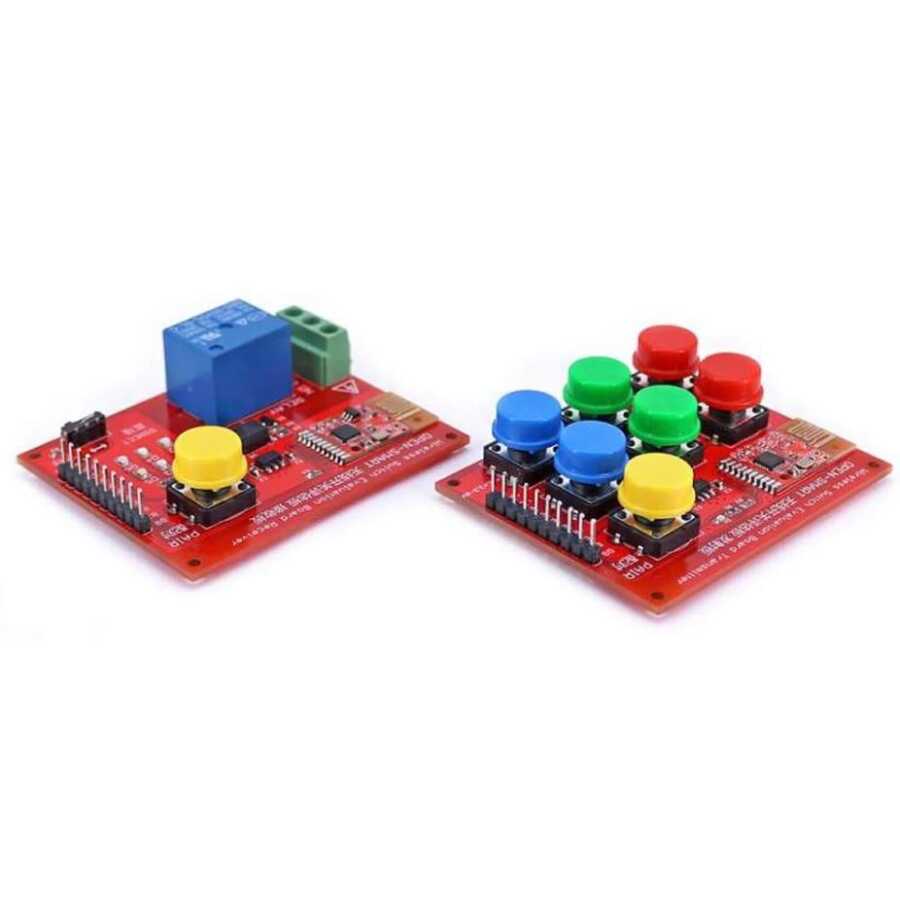

Open-Smart 6 Channel 2.4GHz Receiver and Transmitter Switch Module


Open-Smart 6 Channel 2.4GHz Receiver and Transmitter Switch Module. You can use this module in your DIY projects without programming. Once you pair the receiver and transmitter, then You don't need to do it again. Remote control systems, wireless doorbell, etc. used in applications.

Features (Transmitter)

  • Number of Channels: 6 Channels
  • Operating Voltage: 3.1-5.3VDC
  • Working Current: 0-25mA
  • Operating Frequency: 2.4GHz
  • Maximum transmission distance (Open Area): 80mt

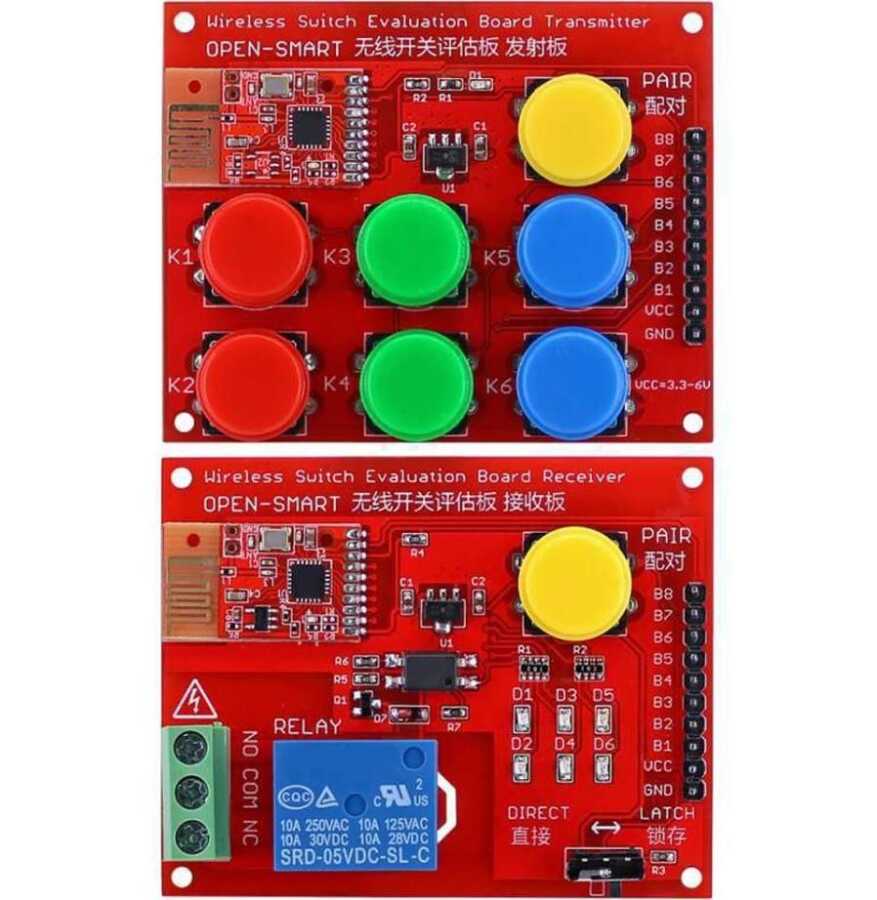

Transmitter Guide

  • D1 LED: Pairing LED
  • Pair Button (Yellow Cover): Pairing Button
  • K1-K6 Buttons: Controlling the 6 outputs of the RX module
  • Internal PCB Antenna


Features (Receiver)

  • Number of Channels: 6 Channels
  • Output Port Current: 5mA (max)
  • Operating Voltage: 3.1-5.3VDC
  • Operating Current: 25mA
  • Operating Frequency: 2.4Ghz

Pairing

  1. Apply power to both modules
  2. Press and release the pairing button of the receiver module, then the D6 LED turns on and enters the pairing mode.
  3. Press and release the pairing button of the transmitter module, pairing will be completed when the LED flashes for a while and then turns on continuously.

Guide

Weight(Kg)
0.1
