PG164140 Pickit4 MCU Programmer

Ratings & Reviews (0)
Comment
Brand: Microchip
Product Code: ELK.PRK.01.000028
6,336.00 TL + VAT
VAT Included: 7,603.20 TL

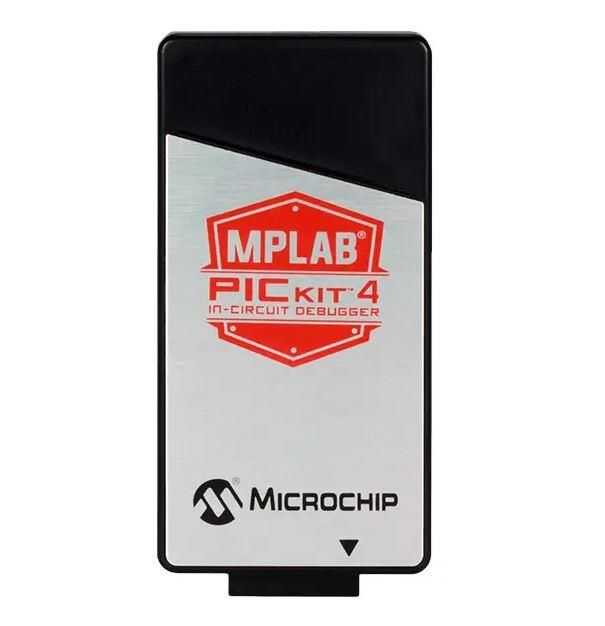

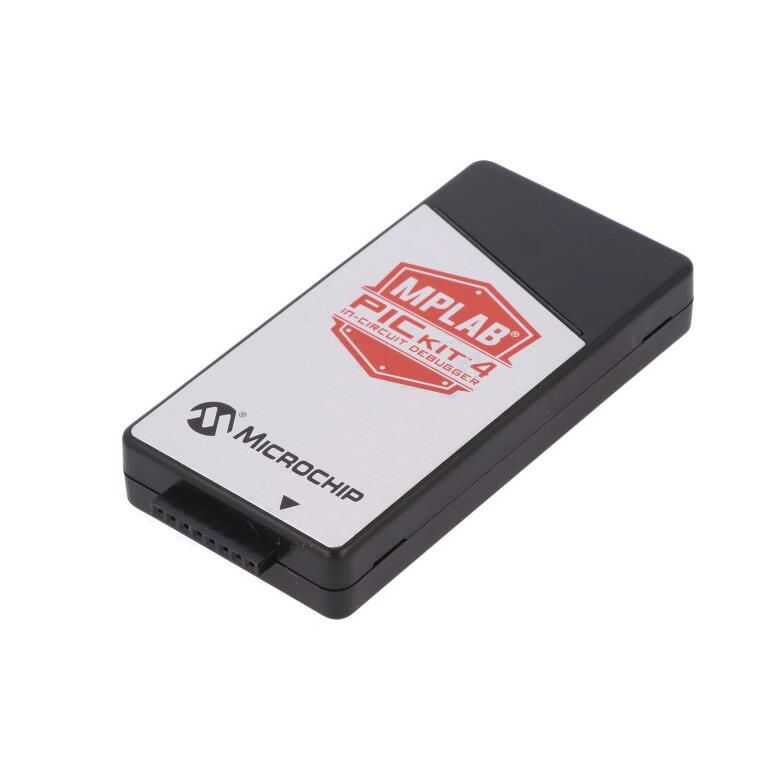

PG164140 Pickit4 MCU Programmer


MPLAB PICkit 4 now supports 8-bit, 16-bit and 32-bit PIC MCUs and dsPIC 's and also features Programmer-to-Go functionality for SAM MCU devices.
MPLAB® PICkit™ 4 In-Circuit Debugger/Programmer, MPLAB X Integrated Development Environment (IDE), starting from version 4.15. MPLAB PICkit 4 connects to the design engineer's computer using a high-speed 2.0 USB interface and can be connected to the target via an 8-pin Single Inline (SIL) connector. The connector uses two device I/O pins and reset lines to implement in-circuit debugging and In-Circuit Serial Programming™ (ICSP™). An additional micro SD card slot and the ability to self-power from the target means you can take your code with you and program on the go.
MPLAB PICkit 4 is a powerful 32, bit It programs faster than its predecessor with the 300MHz SAME70 MCU and comes ready to support PIC®, AVR, SAM and dsPIC® MCU devices and MPU devices. Along with a wider range of target voltages, PICkit 4 supports advanced interfaces such as 4-wire JTAG and Serial Cable Debugging with streaming Data Gateway, while being backward compatible for demo boards, headers and target systems using 2-wire JTAG and ICSP. PICkit 4 also features unique programmer-to-go functionality with the addition of a micro SD card slot to hold project code and the ability to be run by the target board.


Specifications

Matches silicon clock speed, programming as fast as device allows
Wide target voltage range from 1.2V to 5.5V
Can power up to 50mA
Portable USB powered with high-speed USB 2.0, no external power required
Can power the target to the program in the field
CE and RoHS compliant
Supports advanced interfaces such as 4-wire JTAG and serial cable debugging with data stream gateway
2-wire Backwards compatible for demo boards, heads, and target systems using JTAG and ICSP
Programmer-Go (PTG) support
Ease of maintenance and feature upgrades


Weight(Kg)
0.2
