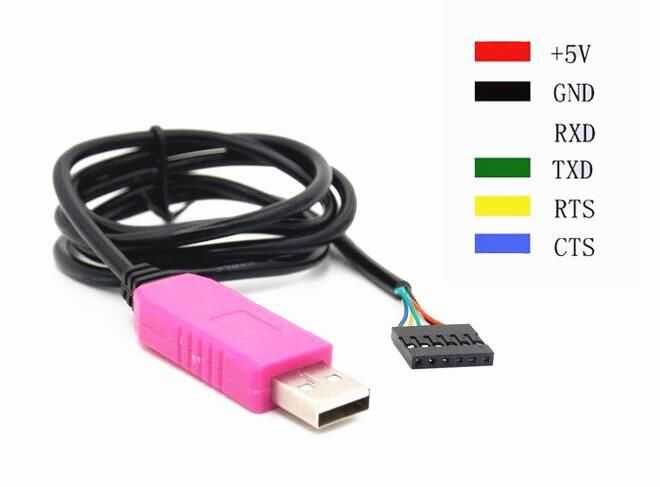

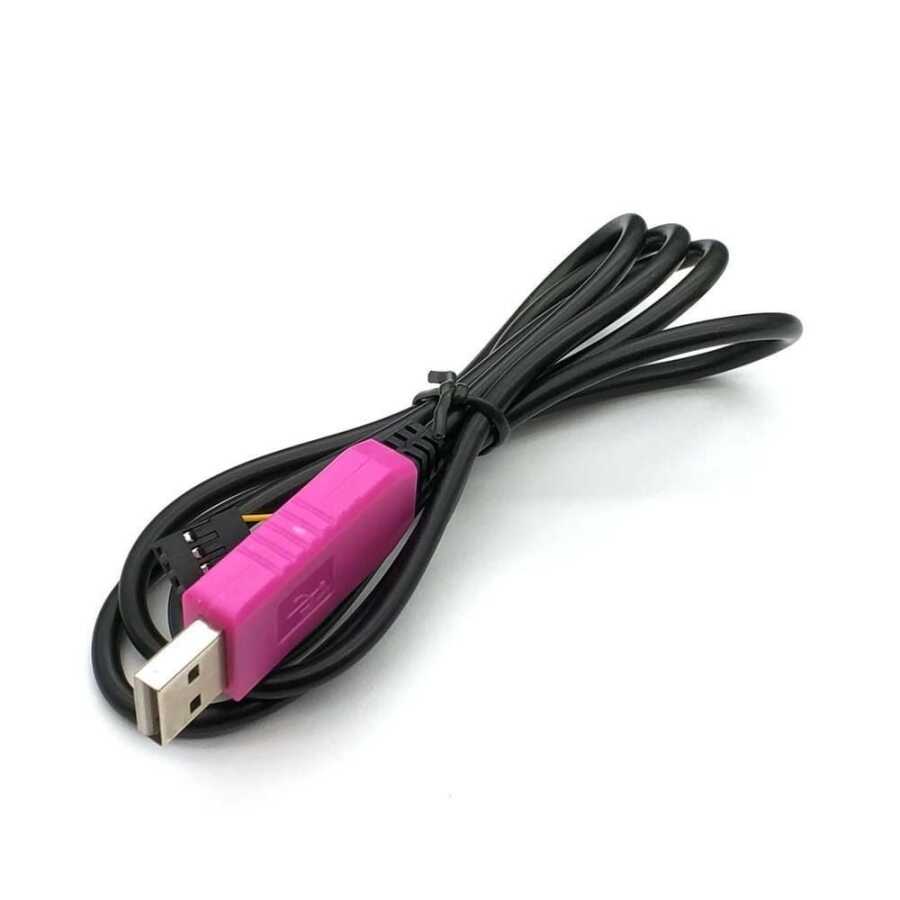

PL2303HXD 6 Pin USB-TTL Serial Converter Cable

PL2303HXD 6Pin USB TTL RS232 Serial Converter is a low-cost and high-performance USB-Serial Bridge Controller . The PL-2303HXD's highly compatible drivers can emulate the traditional COM port on most operating systems. This allows existing applications relying on the COM port to easily migrate and become USB ready. This product is designed for laboratory, product testing, low-cost MCU communication and other applications.



• Single-chip upgrade solution to USB interface for Legacy RS232 devices
• USB to RS232 converters / cables / dongles
• Health / Medical USB Interface Data Transfer Cable
• Placing Personal Information / Media Player USB Interface
• Cellular / PDA USB Interface Data Transfer Cable
• Serial Wireless Solution over IP
• USB Barcode / Smart Card Readers
• GPS / Navigation USB Interface
• Point of Sale (POS) Terminals / Printers
• PC Docking Station / Port Replicators
• Industrial / Appliance / Automation Control USB Interface
• USB Modem / Wireless / Zigbee USB Interface

Technical Specifications:

• Supports RS-232 serial interface with Programmable baud rate from 75 bps to 12 Mbps
• Compatible with RS422 / RS485 interface
• Comprehensive flow control mechanism such as adjustable high/low watermark level, automatic hardware or software flow control and incoming data buffer overflow detection.
• Cables, TTL level serial provides a quick and simple way to connect devices with a USB interface

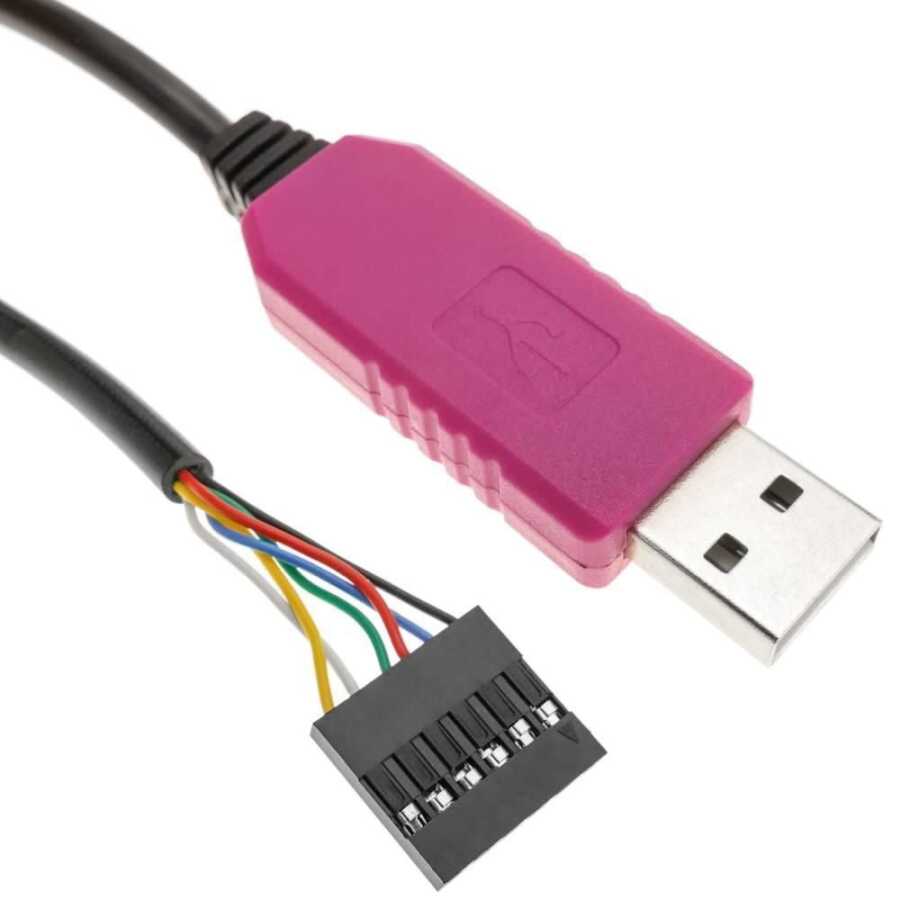

• Cables available with 6-way SIL, 0.1″ connector
• TTL level 3.3V
• TTL-232R cables are a family of serial USB to TTL to serial UART converter cables that connect FTD's FT232RQ USB to Serial.
• UART interface IC device that handles all USB signals and protocols.
• The other end of the cable features different connectors that support a variety of applications
• The cables are FCC, CE, RoHS compliant and available in TTL 3.3V levels.
• The cable is 6-way SIL Available with 0.1 pitch connector, 3.5 mm audio jack, 8-way and 2 mm switch connector (specifically applicable for use with VMUSIC2 or VDRIVE2) or bare, tinned cable end connection.
• USB 2.0 full speed compatible. The USB side of the cable is USB powered.
• Each cable is 97 cm (38.19″) long and supports data transfer rates up to 3 Mbaud.
