Pololu TB6612FNG Dual Motor Driver Board

Ratings & Reviews (0)
Comment
Show More: Dc Motor Drivers
Brand: Pololu
Product Code: MSK.DCM.01.000034
151.36 TL + VAT
VAT Included: 181.63 TL

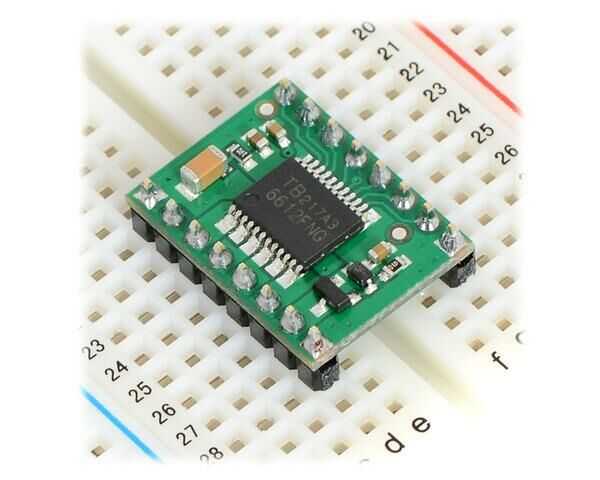

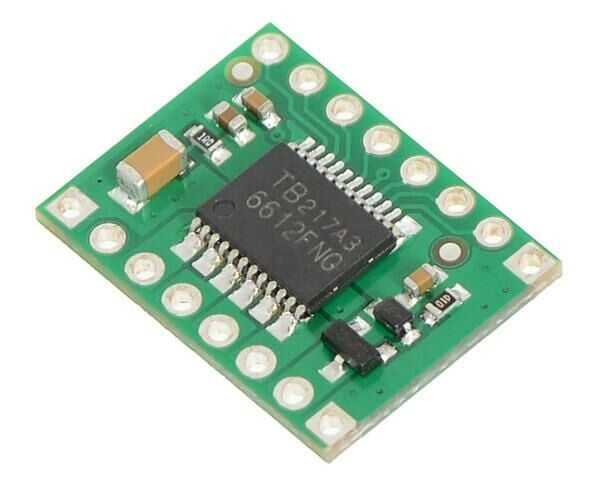

Pololu TB6612FNG Dual Motor Driver Board

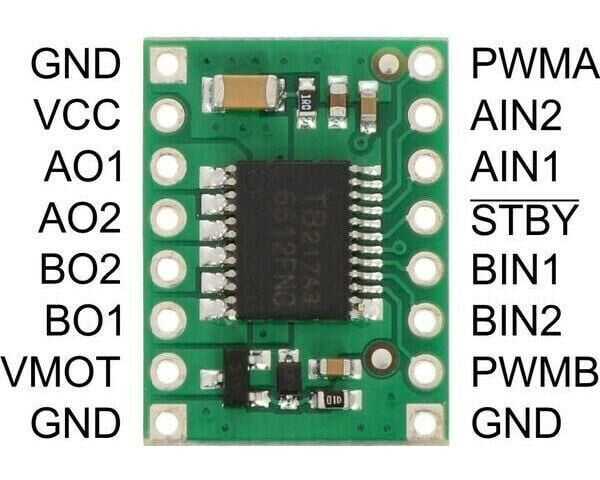

This small board integrates Toshiba's TB6612FNG dual motor driver, which can independently control two bidirectional DC motors or one bipolar stepper motor. It is an easy way to use. Recommended motor voltage of 4.5 V to 13.5 V and peak current output of 3 A per channel (1 A continuous) make this a great motor driver for low power motors.

TB6612FNG Features

  • Dual-H-bridge motor driver: can drive two DC motors or one bipolar stepper motor
  • Recommended motor voltage (VMOT): 4.5 V to 13.5 V (can operate up to 2.5 V with reduced performance)
  • Logic voltage (VCC): 2.7 V to 5.5 V
  • Output current maximum: 3 A per channel
  • Continuous output current: 1 A per channel (can be connected in parallel to provide 2 A continuously)
  • Maximum PWM frequency: 100 kHz
  • Internal thermal shutdown circuit
  • Filtering capacitors on both supply lines
  • Reverse power protection on motor supply
Weight(Kg)
0.05
