ST3PA-F AC 220V Delayed Time Relay - 20M

Ratings & Reviews (0)
Comment
Show More: Timed Relay Boards
Brand: CNAOM
Product Code: RLK.ZMN.01.000095
Stokta son 5 ürün
312.00 TL + VAT
VAT Included: 374.40 TL

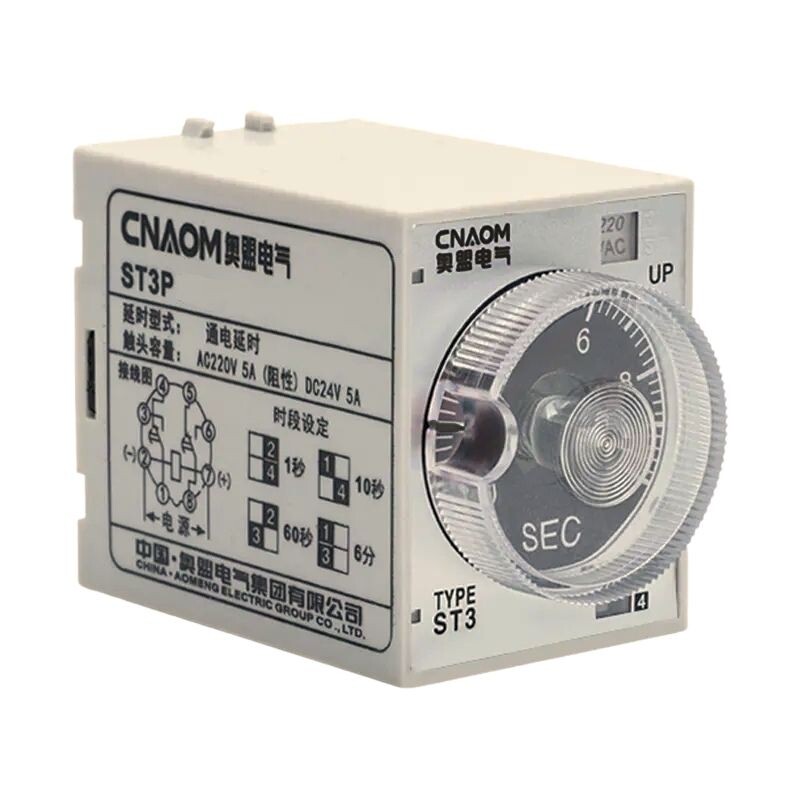

ST3PA-F AC 220V Delayed Time Relay - 20M

ST3PA-F AC 220V Delayed Time Relay - 20M. It is a delayed time relay that can be adjusted between 0 and 20 minutes. It is analog adjustable. You can adjust it with the potentiometer on it.
Adjustments such as delay or NO-NC contact are provided through the connection. The product has 8 pins. Delay time or no-nc contact can be adjusted with different connections on 8 pins.
Visual Representation. The relay with the time setting in the product title will be sent.

Technical Specifications

  • Model: ST3PA-F
  • Adjustable Time: 0-20M
  • Working Voltage: 220V AC
  • Working Mode: On-Delay
  • Nominal Current: 5A
  • Dimensions: 40x50x59mm

Connection

st3p-connection

Weight(Kg)
0.2
