Time Adjusted 12-16V Countdown Voltage Cut Relay Circuit

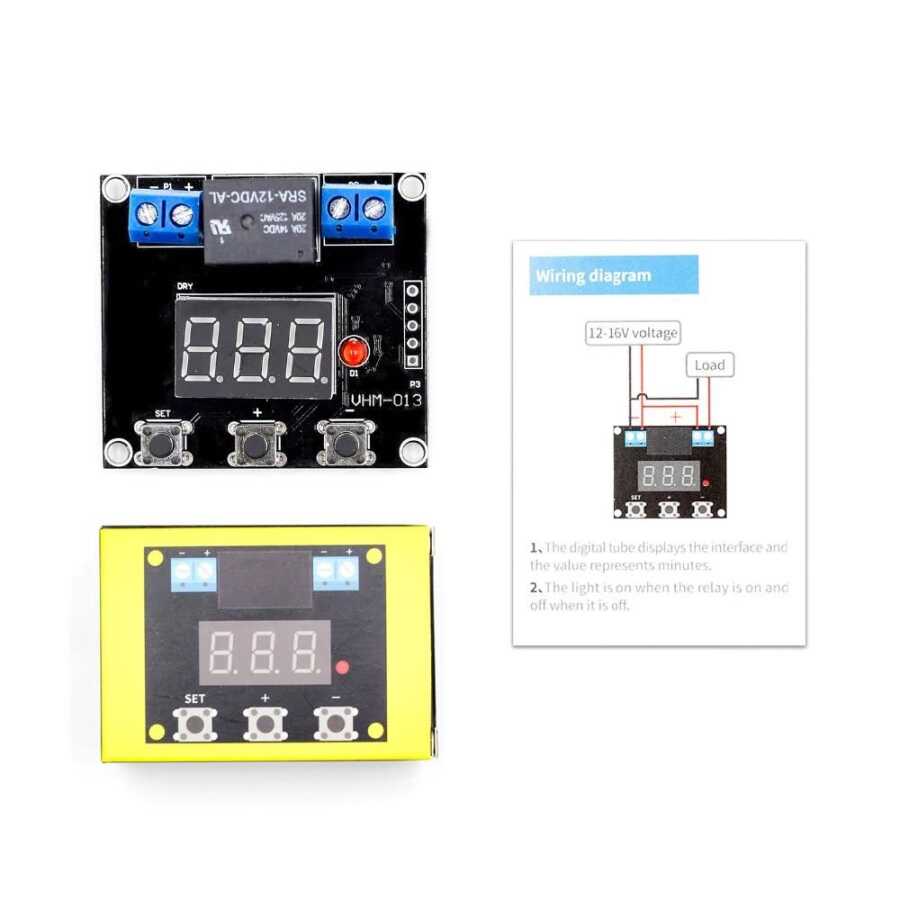

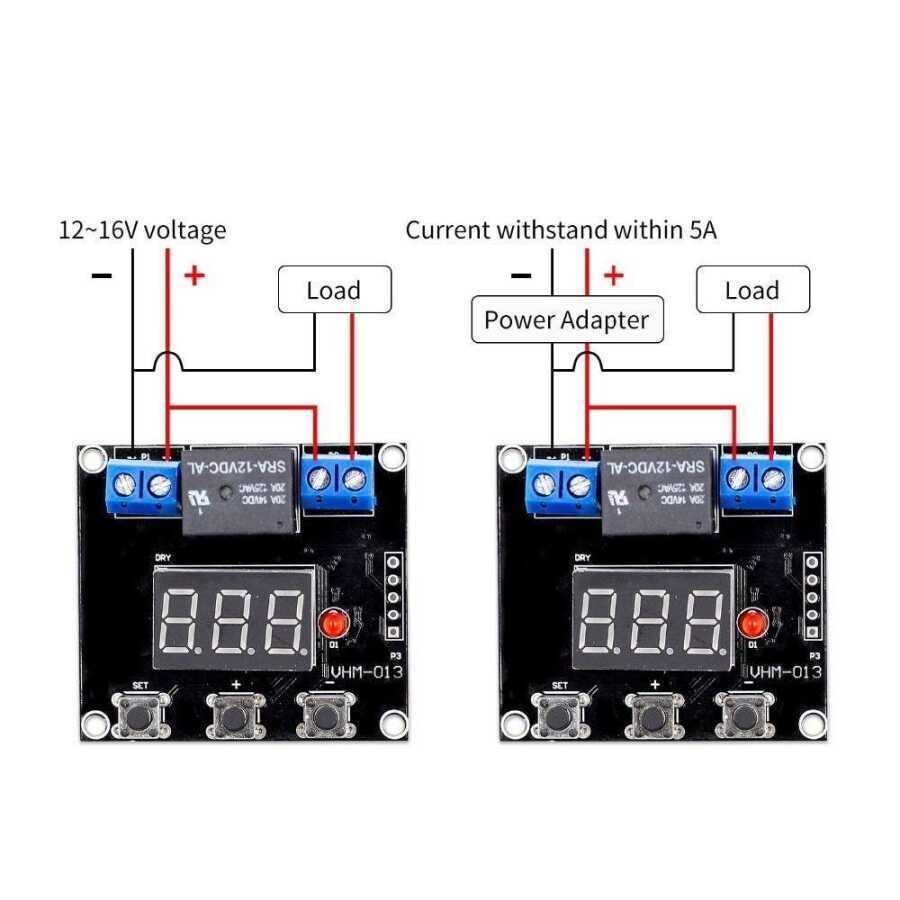

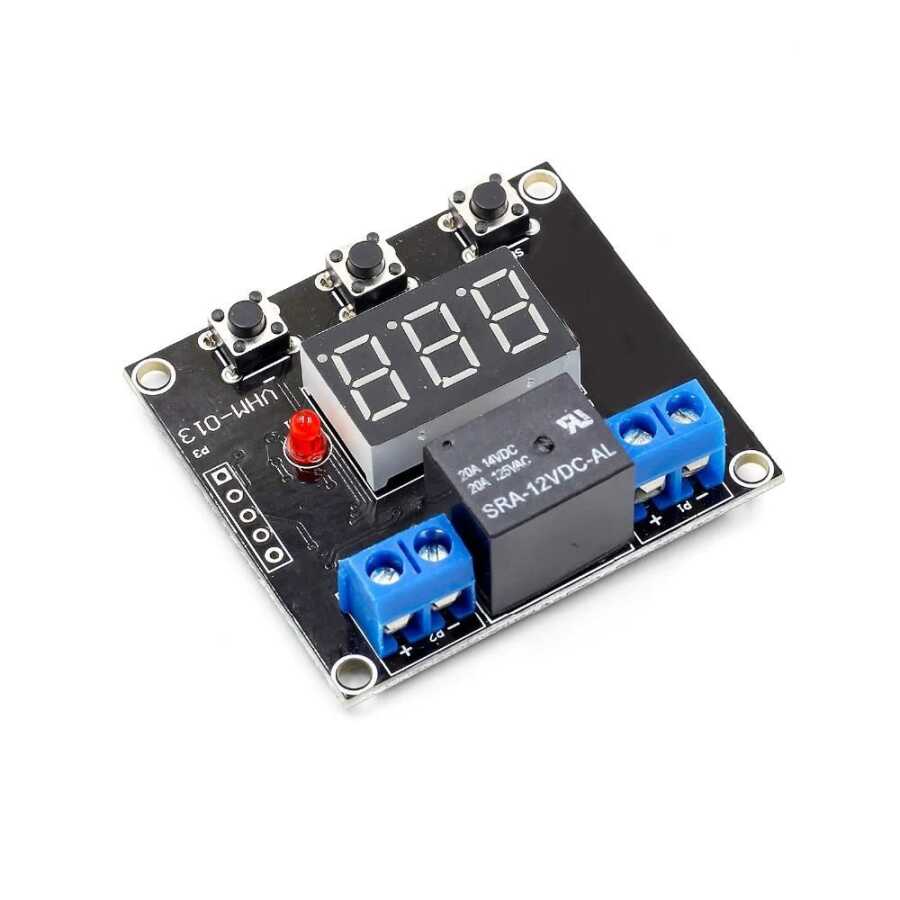

VHM-013 is used to close or open the circuit by counting down between 1-999 minutes when the time is up. It is a module. It withstands up to a maximum of 5A between 12-16V. Circuit size is 47x43x18mm. Time setting is between 1-999 minutes.



The product is controlled with the SET, + and - buttons on it. The mode is selected by long pressing the SET button.

In Mode1, the relay opens at the end of the time.

In Mode2, the relay closes at the end of the time.
