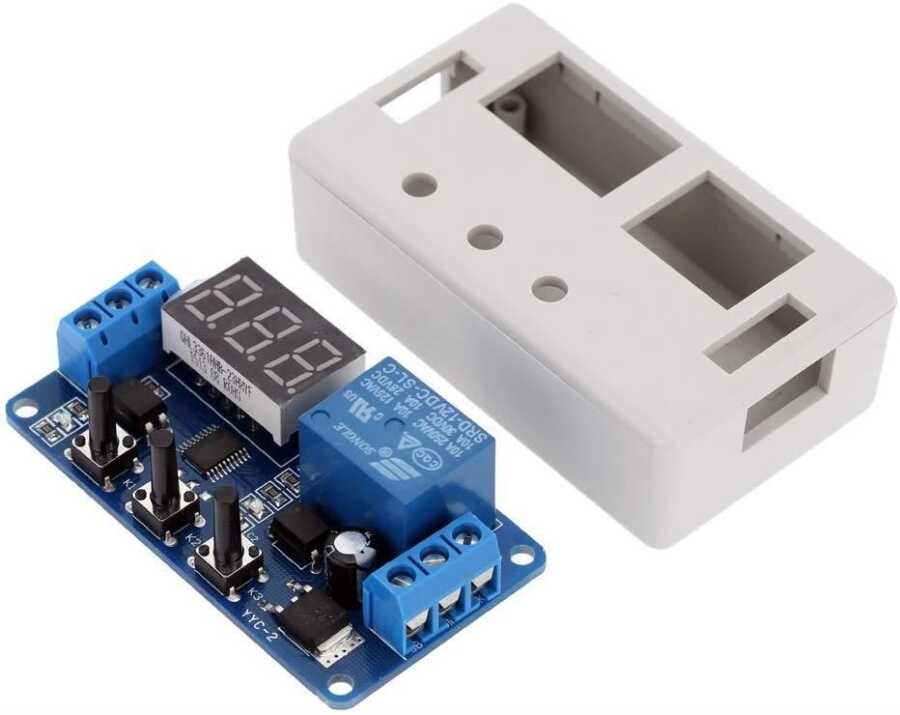

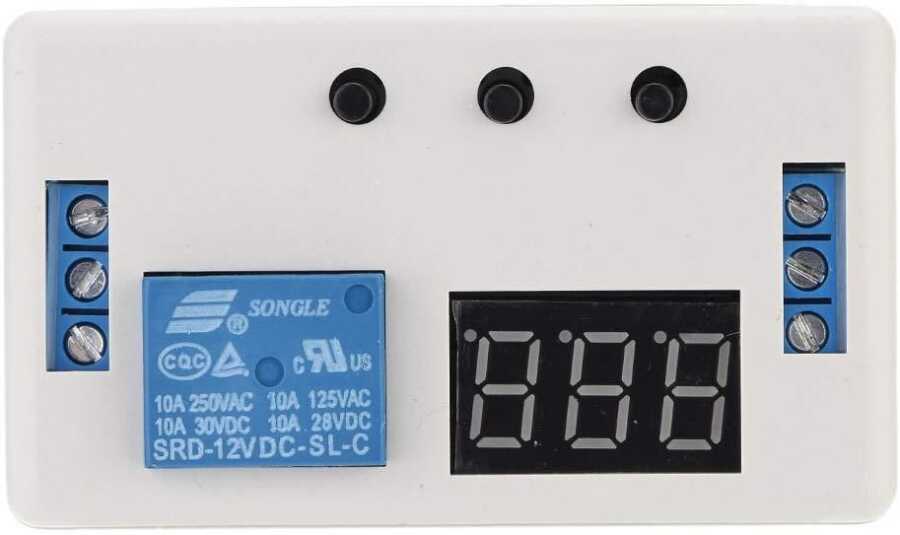

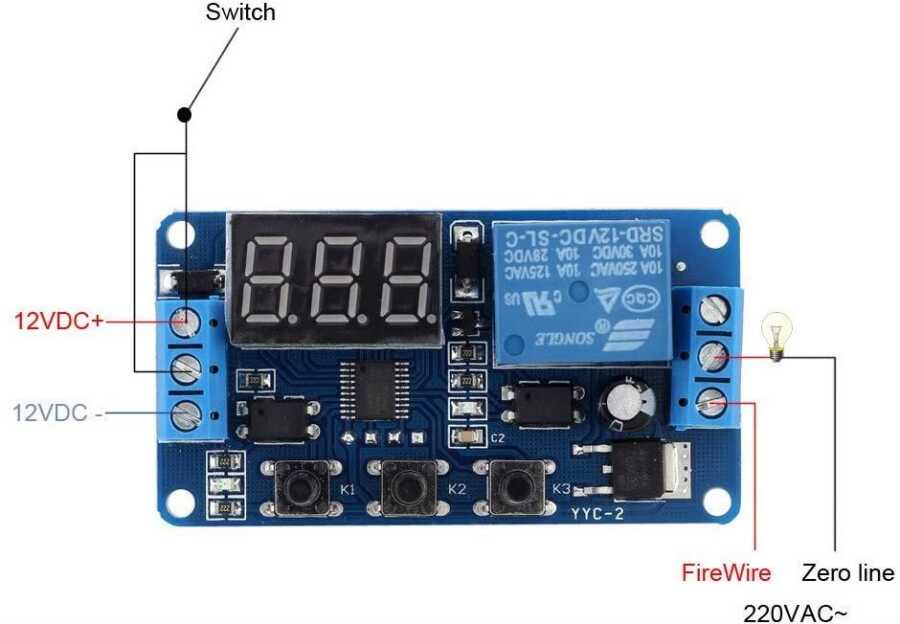

Time Adjusted Relay Module with 12V Protection Box
Timed relay module with protective box, working with 12v. It has 4 different usage functions. The relay module on it can withstand up to DC 30V 10A or AC 250V 10A.

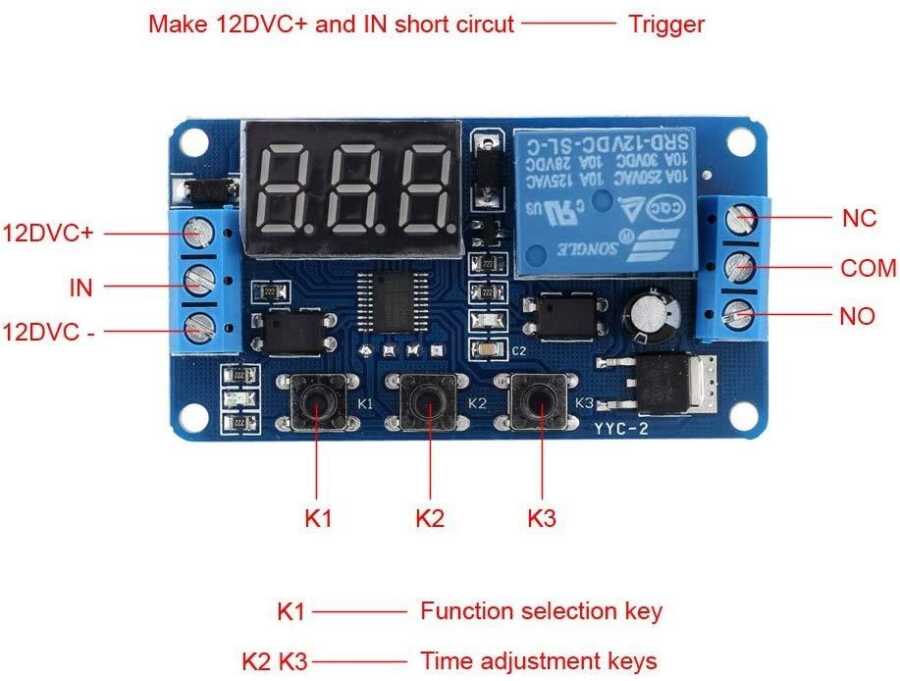

Functions of the Keys:
K1: It is the mode changing key. The mode changes every time K1 is pressed.
K2: It is the time setting button. When you first press k2, the first digit starts to blink. If we want it to remain zero, we need to press k2 again. When pressed again, the middle digit lights up. Each time k3 is pressed, the number between 0 and 9 increases one by one, and when it reaches the number we want, we can move to the next digit by pressing k2 again.
K3: Changes the numbers when inside k2, and replaces the dot when outside k2. changes. Minutes, seconds and hours are changed by changing the position of the dot with this function.
Operating Modes:
P-1: Trigger signal After it arrives, it turns on the relay for the specified period of time. When the time runs out, the science ends. When the trigger signal is given, the process starts again. Select the mode with the K1 button and then press the K2 button to access the time setting screen.
P-2: In this mode, 2 different time values are entered. Our first time value is the waiting time. The second time value is the open time of the relay. After the trigger is given, the relay waits for the first time. Then it stays on for the second determined time value.
P-3: In this mode, two different times are determined. However, differently, no trigger signal is required. The relay remains open for the first determined time, and remains closed for the second specified time, and this cycle repeats continuously.
P-4: This mode is similar to P1, but in one respect. It is different. The time starts when the trigger signal comes on P1. In this mode, it starts as soon as the trigger signal is cut off. So let's assume that we receive the signal from the button. The trigger will not start as long as we keep the button pressed. It begins the moment we remove our finger.
