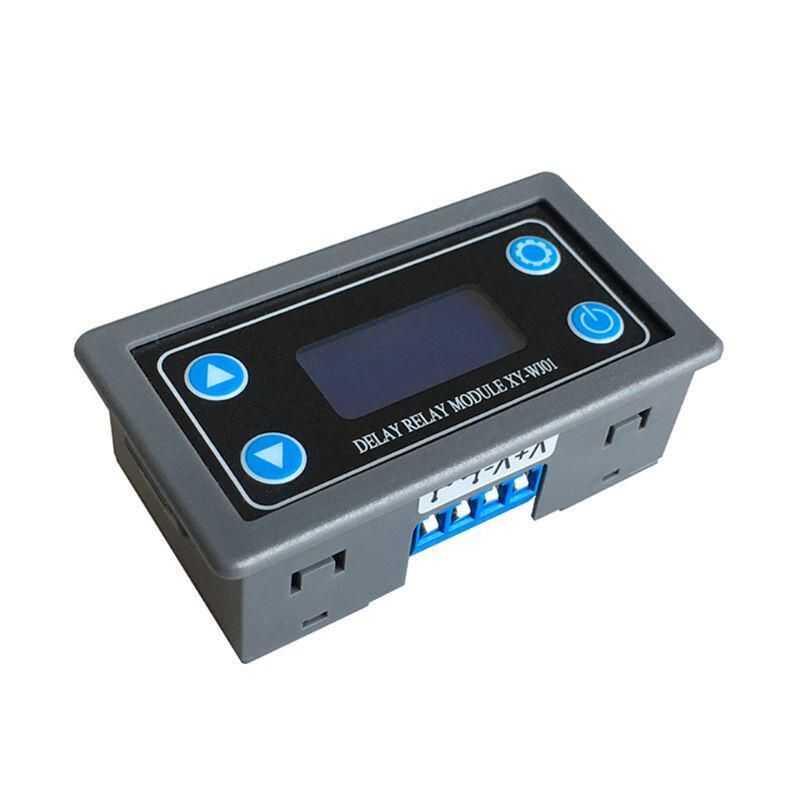

Time Adjusted Relay Module XY-WJ01

P1: After the signal is triggered, the relay conducts OPTime then cuts off;OPTime, the signal triggers a new timer. disconnected and stop timing.

P3: after the signal is triggered, the relay disconnects CLTime and then the relay conducts.



P4: after the signal is triggered, the relay conducts OPTime and then the relay disconnects the CL time and then loops the above action, signals again in the loop, the relays are disconnected, stopping the timer; and number of cycles (LOP) Adjustable; the end of the loop, keep the relay disconnected; stops the timer; and number of cycles (LOP) Adjustable; end of the cycle, keep the relay conduction;

P6: There is no trigger signal after power on, after the relay conducts OPTime, the relay disconnects CLTime, and then cycles the above action, the signal is invalid in the cycle, the number of cycles (LOP) Adjustable; end of the loop, keep the relay disconnected;



P6: no trigger signal after power on, after the relay disconnect CLTime, relay conductOPTime, and then loops the above action, the signal is invalid in the loop, loop count (LOP) Adjustable; end of loop, maintain relay conduction;



P8: signal retention function: signal retained, timing cleared and relay conduction; When the signal disappears, the relay cuts off after timingOP; There is another signal during timing and the timing is cleared;

P9: signal hold function: the signal is retained, the timing is cleared and the relay is disconnected; When the signal disappears, the relay conducts after timing CL; There is another signal during timing and the timing is cleared;



Specifications:

Timing range: 0.01 sec ~ 9999 min

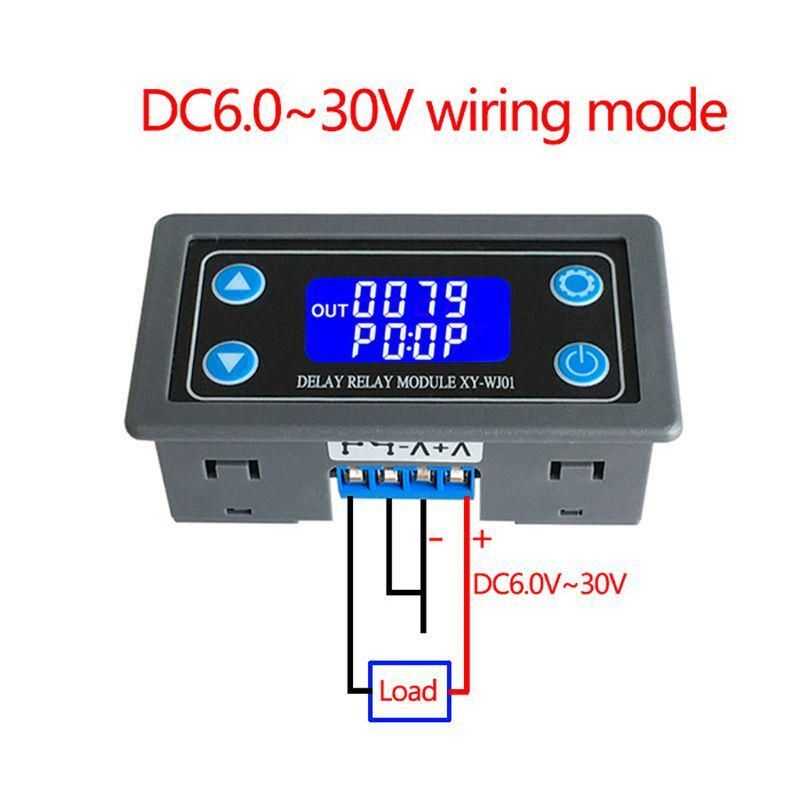

Power supply: 6V ~ 30V

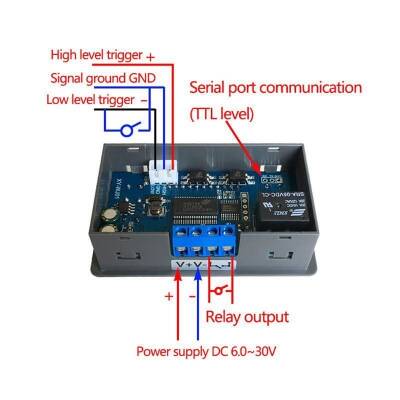

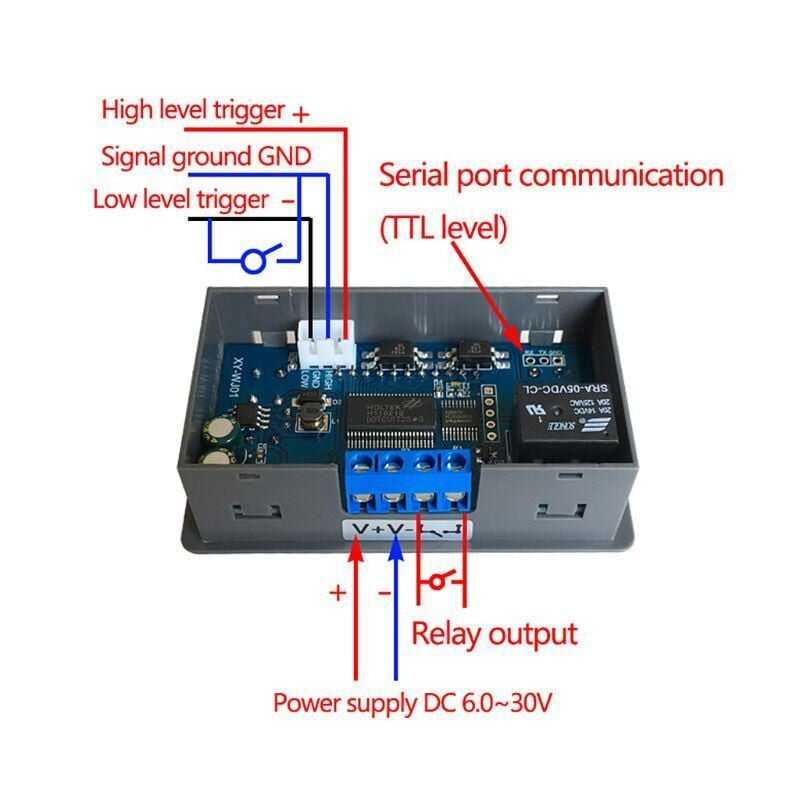

Trigger signal source: High level(3.0V ~ 24.0V), Low level(0.0V ~ 0.2V), Signal passthrough

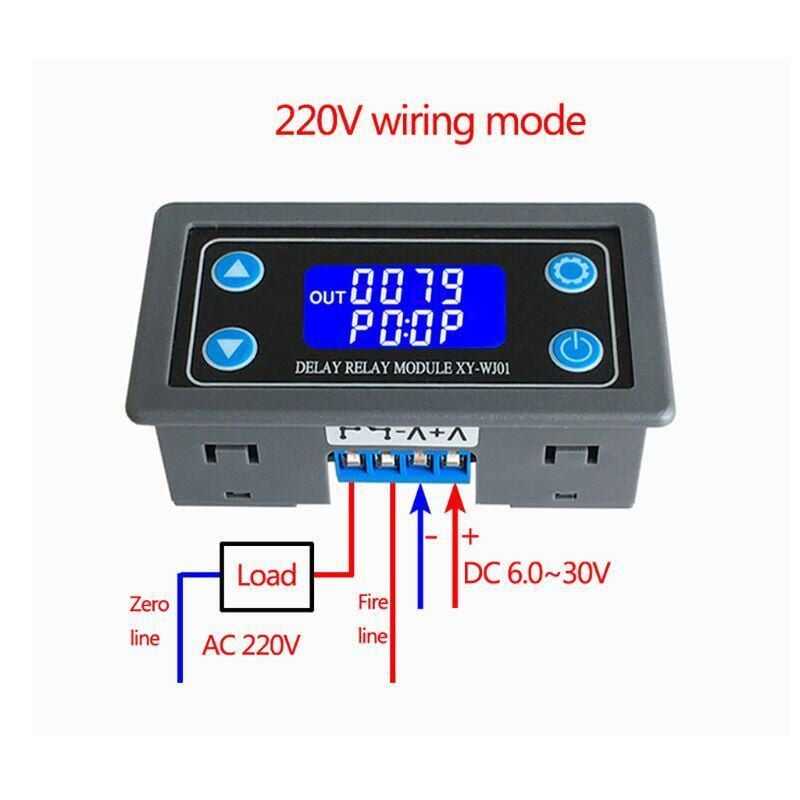

Maxmum output load: DC 30V 5A and AC 220V 5A

Static current: 15mA operating current: 50mA

Service life: more than 100,000 times;

Operating temperature: -40-85° C

Size: 8 x 3.8 x 1.9cm/3.15 x 1.5 x 0.75 inc
