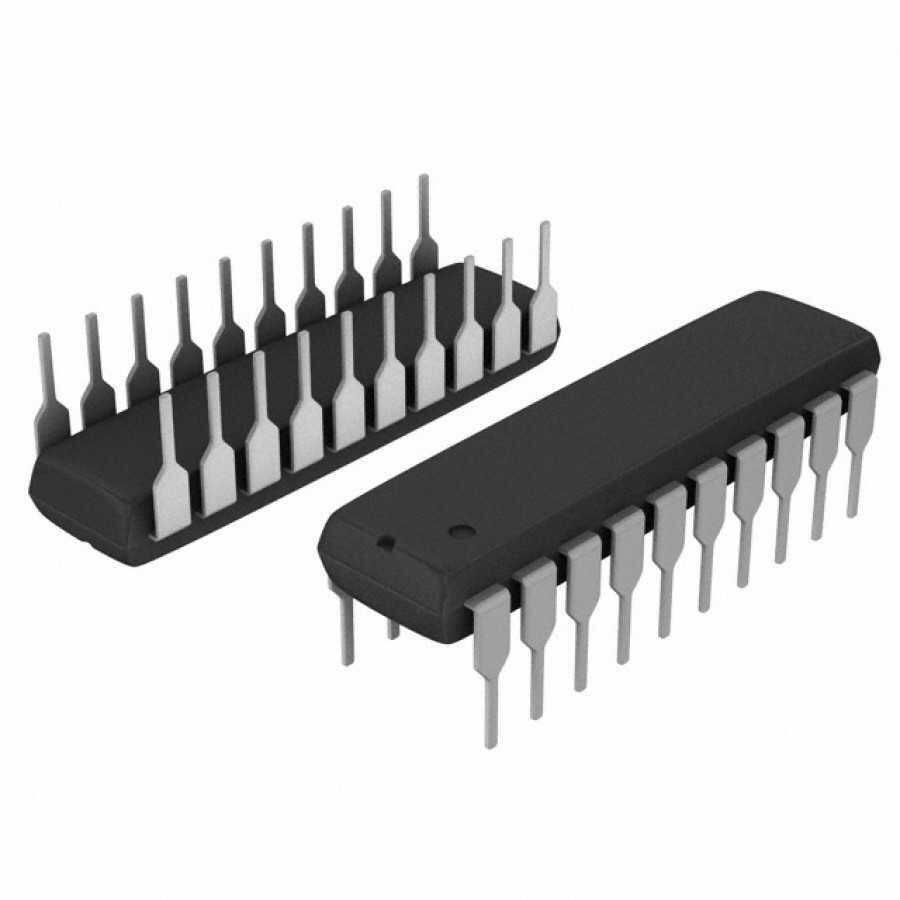

TPIC6B595N DIP-20 Shift Register IC
TPIC6B595N is an 8-bit Monolithic High Voltage Power Logic Shift Register designed for use in systems requiring relatively high load power. . The device includes a voltage clamp built into the outputs for inductive transient protection. Power drive applications include relays, solenoids and other medium current or high voltage loads. This device contains an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register.
Areas of Use
Instrumentation Clusters
Fairy Tale Lamps
LED Lighting and Controls
Automotive Relay or Solenoid Drivers
| Series |
TPIC6B595N |
| Operating Supply Voltage |
4.5-5.5 V |
| Number of Circuits |
1 |
| Number of Bits |
8 bit |
| Propagation Delay Time |
150 ns |

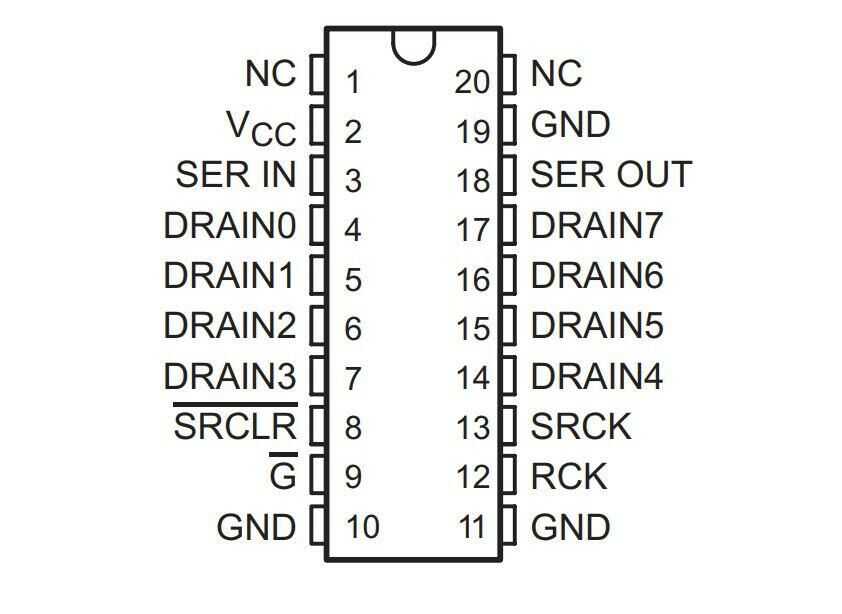

| Number of Pins |
20 |
| Package Type |
DIP-20 |
