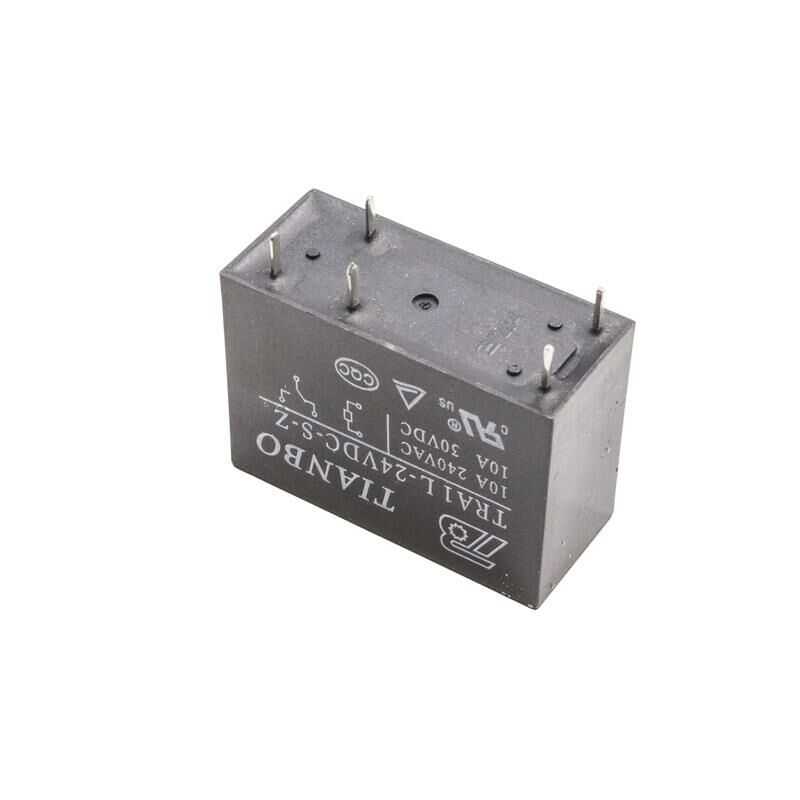

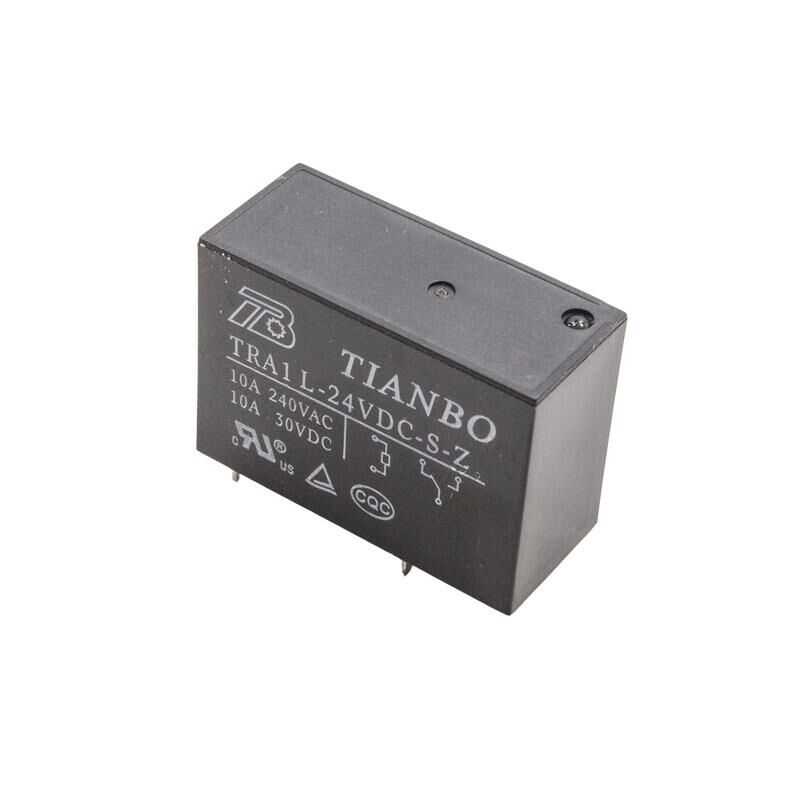

TRA1 L-24VDC-S-Z 24V DC 10A 5-pin Relay
Product model: TRA1 L-24VDC-S-Z
Coil nominal voltage: 24 V DC
Control mode: monostable, 1 coil
Resistance (coil): 1050 Ω
Coil voltage rating : 0.54 W
Contact type: 1 switching
Switching voltage (max.): 30 V DC, 250 V AC
Switching current (max. ): 10 A
Response time: 20 ms
Dimensions: 29 x 12.7 x 21 mm
