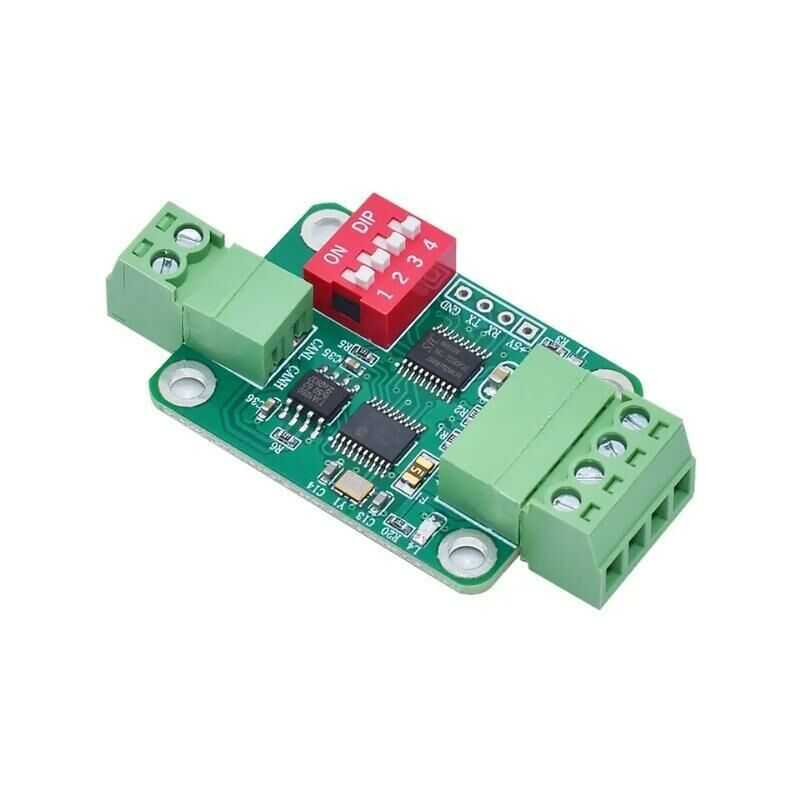

TTL to CAN Bus Converter TTL-RS232

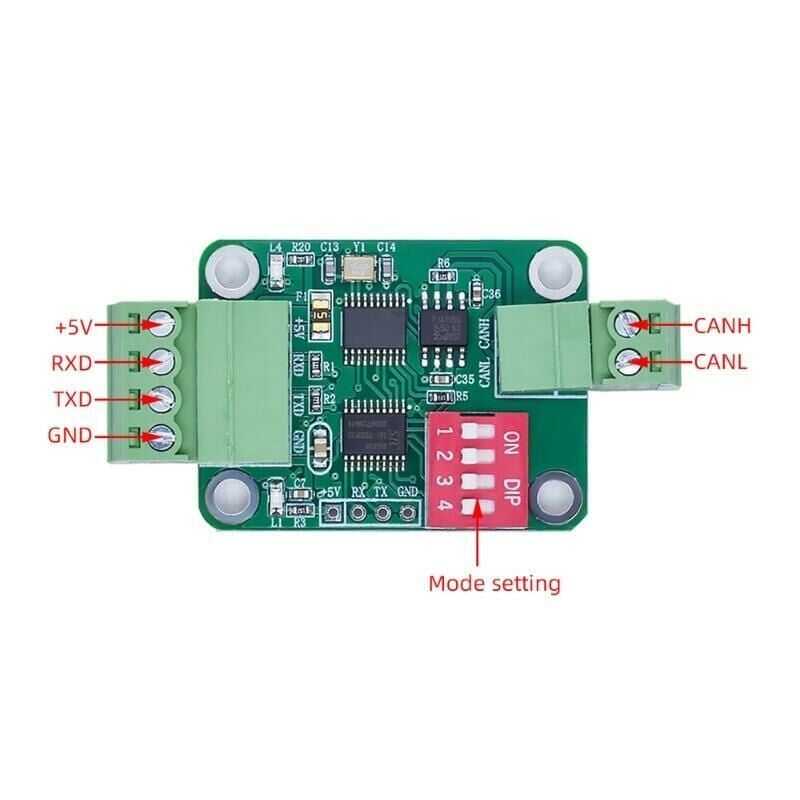

TTL to CAN Bus Converter TTL-RS232. Mode adjustment can be made with the dip switches on it.
SW1: For frame format selection. When it is turned on, it switches to the extended frame, and when it is turned off, it switches to the standard frame.
SW2 and SW3 are related to the baud rate.
SW2 | SW3 | Baud rate |
OFF | OFF | 500 thousand |
ON | OFF | 1 million |
OFF | ON | 250 thousand |
ON | ON | 100 thousand |
SW4 records the data without using ID. It is for setting.
