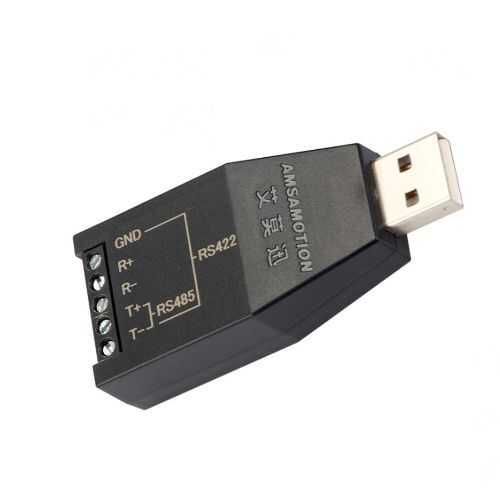

USB To RS422/RS485 Serial Communication Module
It is a kind of industrial grade converter that can extend RS422/485 Interface via USB port. It allows easy connection of RS422/485 device via USB port. It is generally suitable for cash register, plc, access control system, barcode printer, scanner, CNC slot, industrial instrument and many other fields.
Technical Specifications
Product Name: USB-422/485 Converter
Power supply: Direct USB without external power supply
System: WIN7/8/9/10 , MAC OS 8.6
Baud rate: 300bps-128000bps
Interface: 5-pin terminal Wiring
422 signal: GND, R+, R-, T+, T-
RS-485 signal: T+, T-
Support USB Port:USB2.0, Compatible USB1.1
Size:6.32*2.73*13.8 cm
