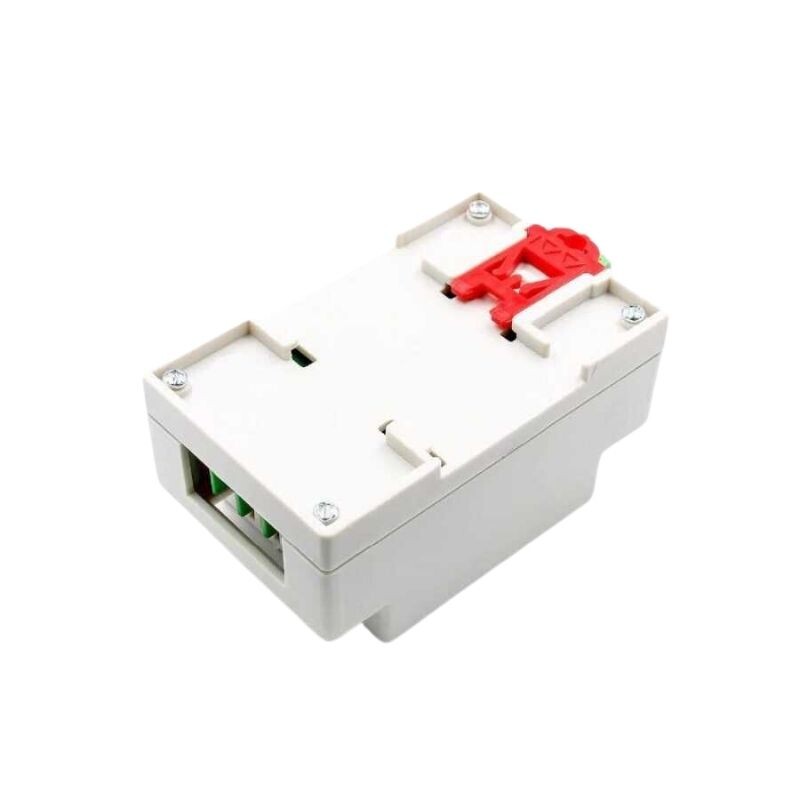

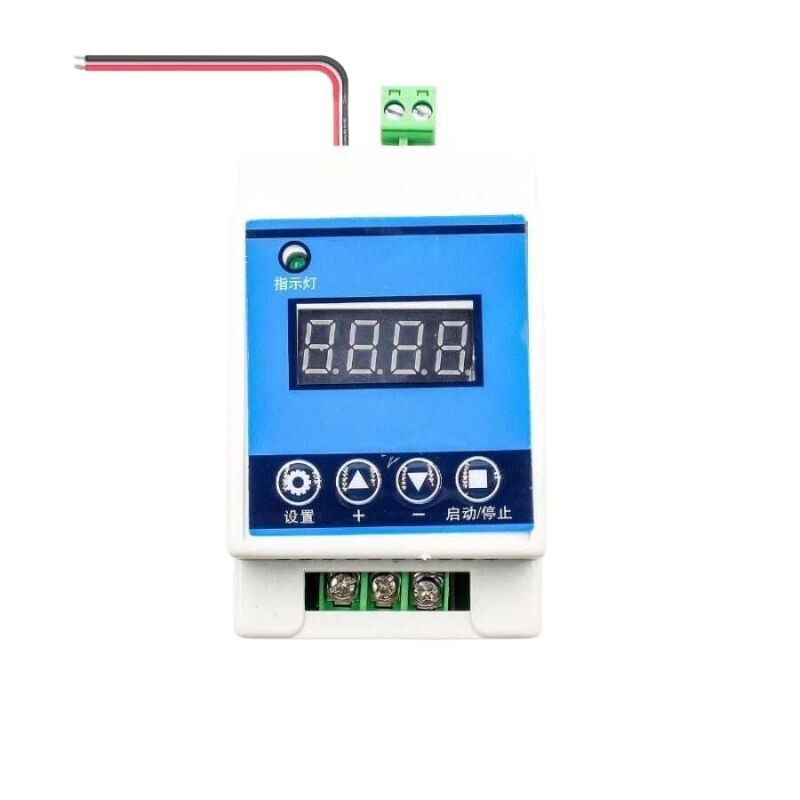

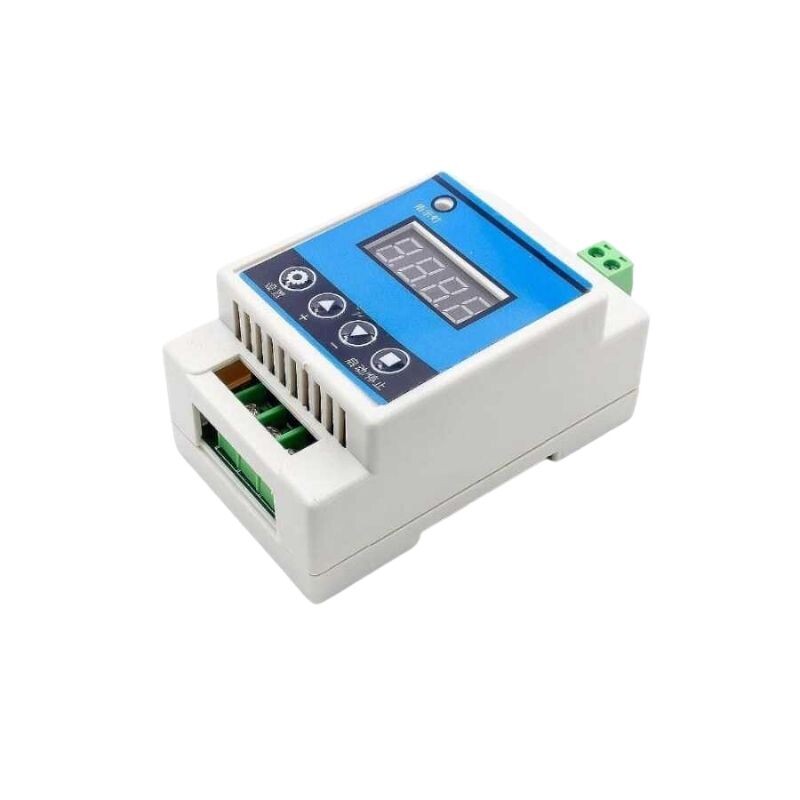

YYC9 30A Time Adjusted Relay Module
Timed relay module with 12V supply voltage, which can turn on and off AC or DC voltage. It can support high power up to 30 amps. It has a wide usage area thanks to 24 different operating modes.
Technical Specifications:
- Product model: YYC-9
- Input voltage: 12V
- Output power: Can control DC or AC load within 30A
- Time range: Adjustable from 0.01 seconds to 999 minutes at any time
- Functions remain in memory when the power is cut.
Operating Modes:

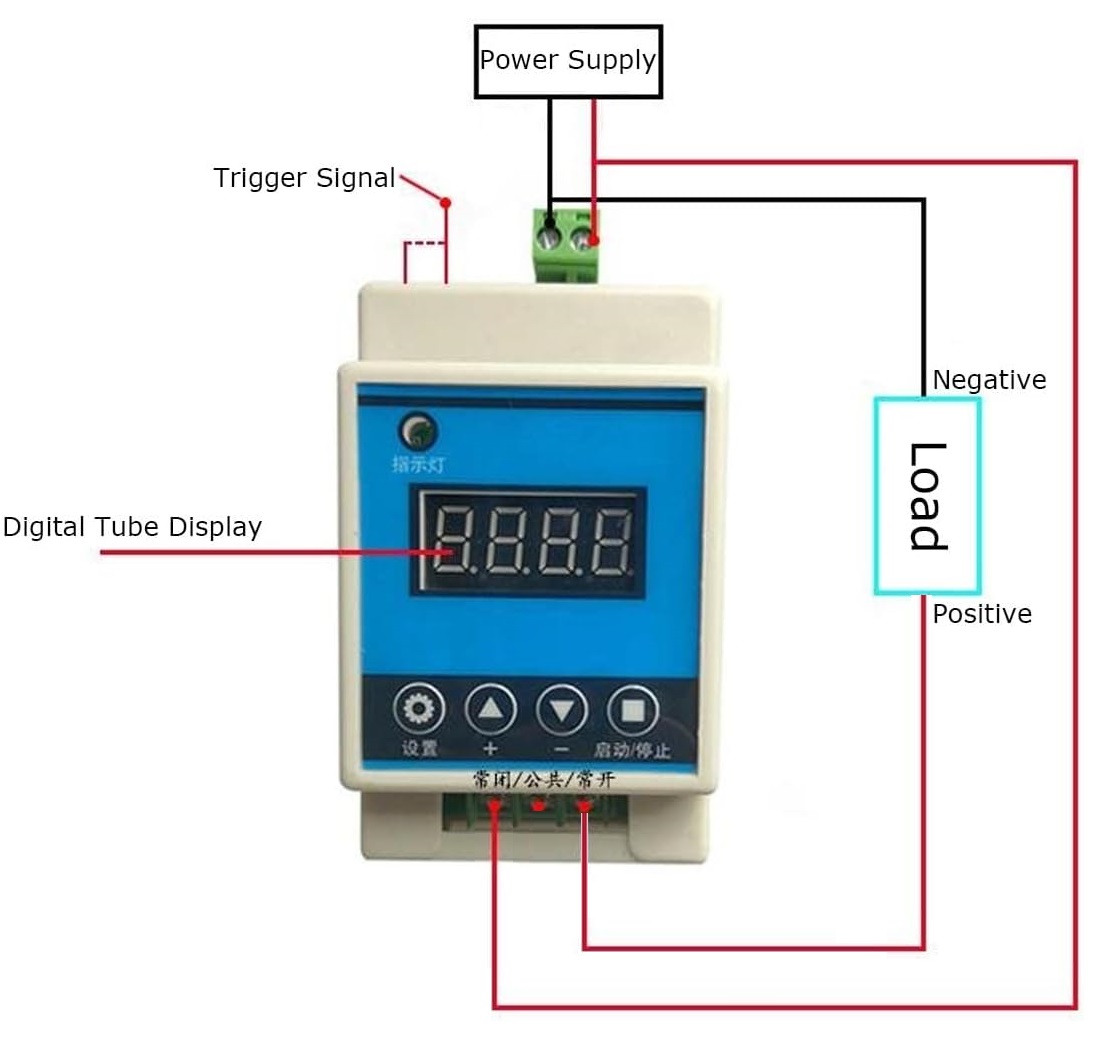

"Signal" in the list: "Start / Stop" button on our panel or can be communicated externally.
- P-11: Intermittent operation (turn on the signal relay, the signal disappears and the relay stops)
- P- 12: Self-locking (send a signal relay to pull in, then give a signal relay to stop)
- P-13: Give signal, the relay will automatically stop for A seconds; trigger becomes invalid during delay.
- P-14: Signal, relay stops automatically for A seconds; restart time during delay
- P-15: Give signal, the relay is automatically stopped for A seconds; trigger timing is triggered during the delay
- P-16: Give signal, the relay stops automatically for A seconds; trigger reset during delay
- P-17: Give signal, relay closed, input signal disconnected, after A seconds the power was turned off and the signal was kept as output again during the delay.
- P-18 : After power on, the relay pulls in immediately, after a delay of A seconds, the power is turned off;
- P-21: Give the signal, after a delay of A seconds, the relay pulls in.
- P-22: Give the signal , After more than A second, the relay pulls in, the signal disappears, the relay stops.
- P-23: After the signal disappears for more than A second, the relay pulls in, the signal disappears and the relay stops.
- P -24: There is a signal. After more than A second, the relay closes. When the signal disappears for more than A seconds, the relay stops.
- P-25: After a signal disappears for more than A seconds, the relay is closed, and after a signal disappears for more than A seconds, the relay stops.
- P -26: There is a signal. The relay stops after A seconds has been absorbed and the signal disappears. The relay stops again after A seconds.
- P-27: The pulse signal is detected and the relay stops; if there is no pulse signal, the relay delays A seconds; (signal continuous or signal disappears without pulse signal)
- P-28: After power-on, the relay pulls in until the power is turned off after A second delay.
- P-31: After power-on relay A seconds off, B seconds off, infinite loop;
- P-32: Signal, start P-31 infinite loop; signal disappears, ending the loop
- P-33: Give a signal, P-31 start the infinite loop; give another signal to end the cycle
- P-34: After power on, after a delay of A seconds, the relay is pulled in and closed after B seconds.
- P-35: There is a signal . After a delay of A seconds, the relay is pulled in and closed after B seconds.
- P-36: There is a signal. After more than A seconds, the relay is closed, after B seconds, B is stopped, the signal disappears and the timing is cleared.
- P-37: There is a signal, the relay will automatically stop for A seconds, and then stop for 24 seconds. Signal trigger is invalid for time A + B.
- P-38: After signal A is sent more than once, the relay is closed for B seconds.
