8 Channel Ethernet Relay Module - Modbus RTU/Modbus TCP Protocol - PoE Ethernet Port

8 Channel Ethernet Relay Module - Modbus RTU/Modbus TCP Protocol - PoE Ethernet Port

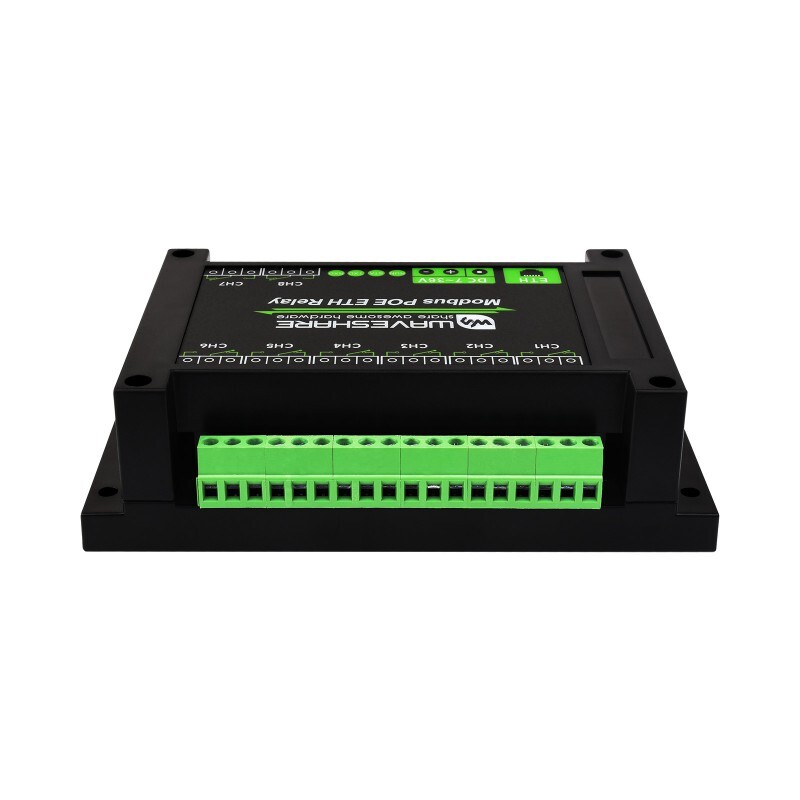

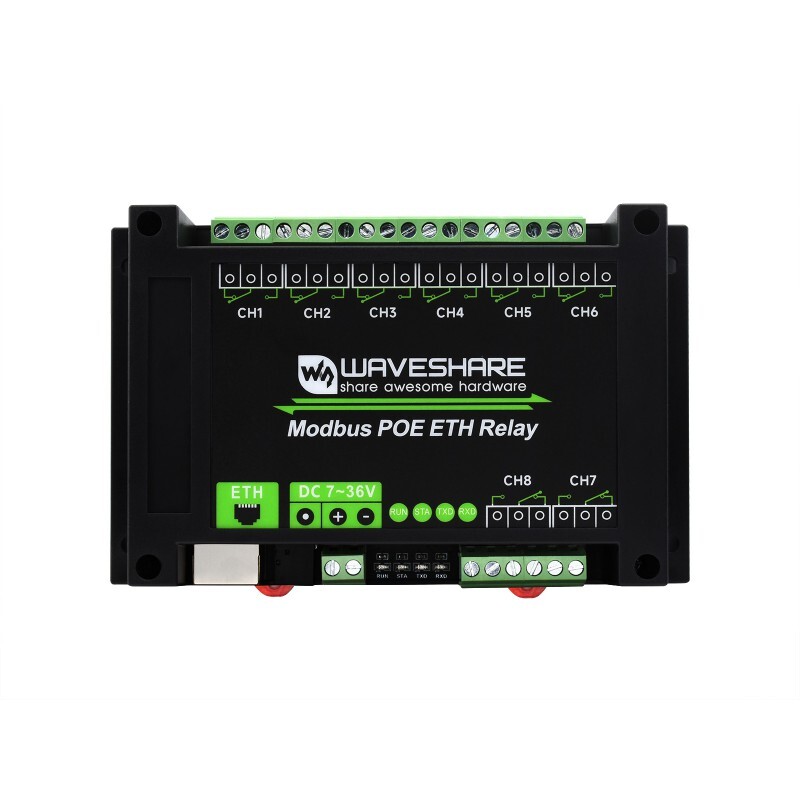

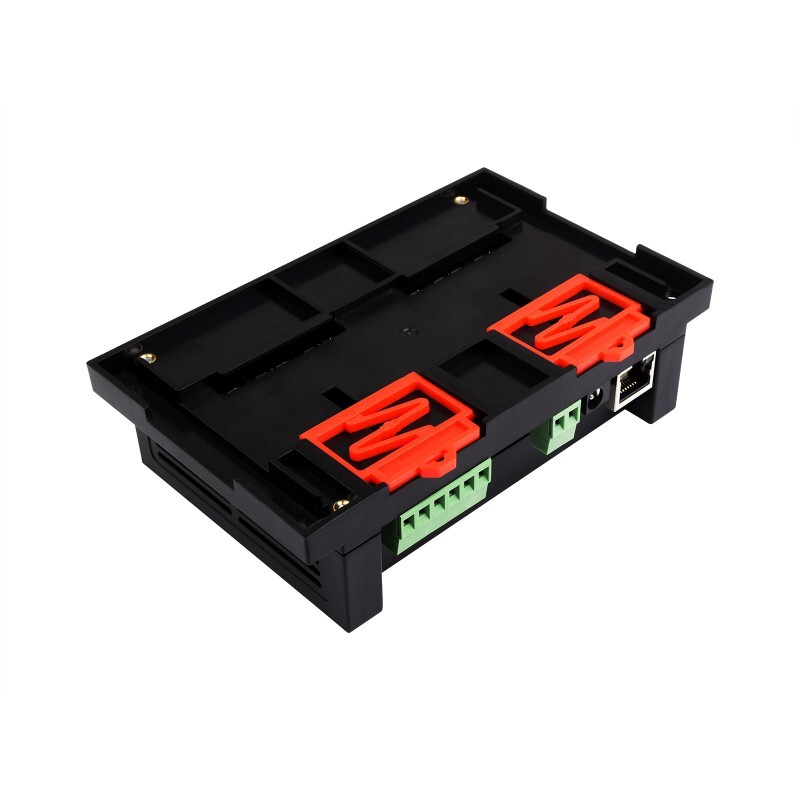

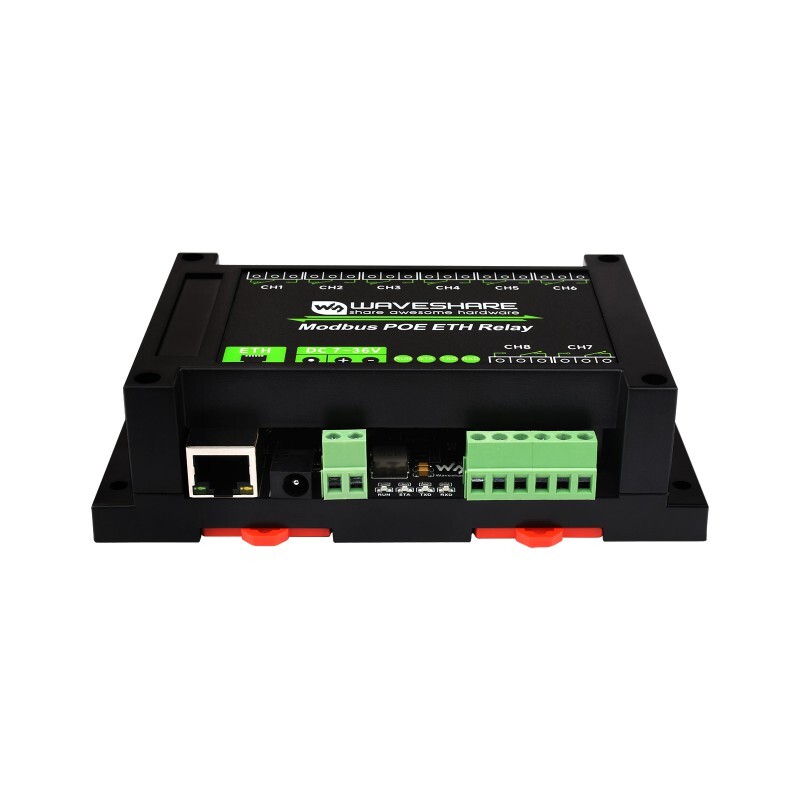

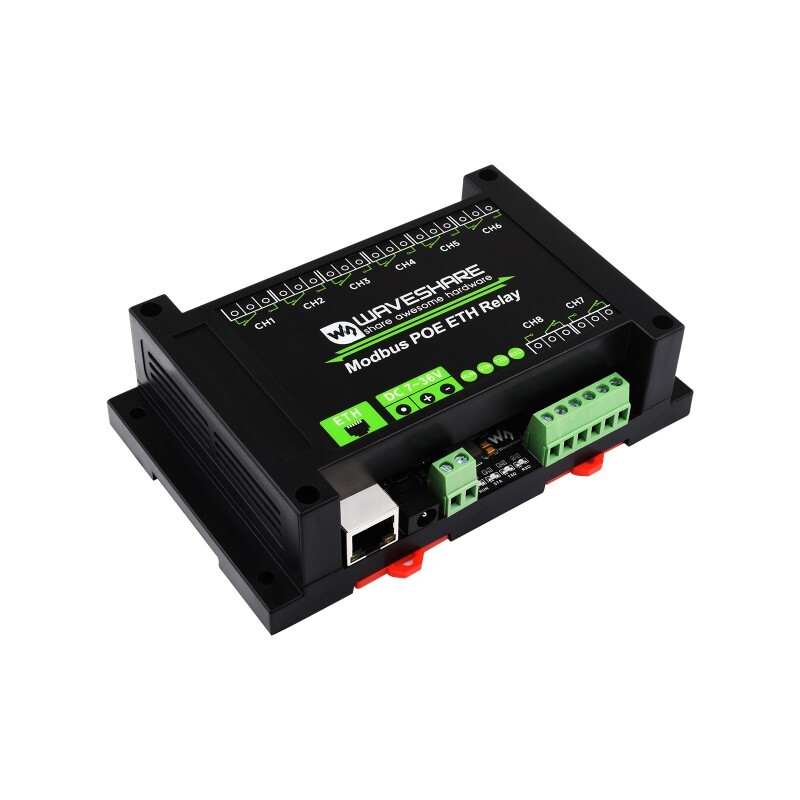

8 Channel Ethernet Relay Module - Modbus RTU/Modbus TCP Protocol - PoE Ethernet Port, It is an industrial 8-channel relay module controlled via Ethernet port. It adopts Modbus RTU/Modbus TCP protocols, supports PoE power supply, and also comes with ABS rail-mount case.

Modbus POE ETH Relay is very easy to use. It is an ideal choice for industrial control equipment and/or applications with high communication requirements due to its fast communication, stability, reliability and security.

Flash-on, flash- It has an off function, it is possible to turn the relay on for a while and then turn it off automatically by passing an argument to the command. Supports DC 7~36V wide range power input and PoE power supply Supports relay control via MQTT protocol, comes with Alibaba Cloud MQTT application demo Built-in Optocoupler isolation prevents the relay from being affected by high voltage circuit. Reverse protected circuit prevents accidental damage to the circuit due to incorrect connection.

Features

• Supply Options: Poe Port, DC Jack (5.5x2.1mm), 7 ~ 36 VDC>
• Communication Interface: PoE port, IEE 802.3af compliant
• Number of Relay Channels: 8
• Contact Form: 1NO 1NC
• Contact Ratings: ≤10A 250VAC/30VDC
• Modbus Protocol: Modbus RTU Protocol, Modbus TCP Protocol
