Arduino SMD L298 Dual Motor Driver Shield

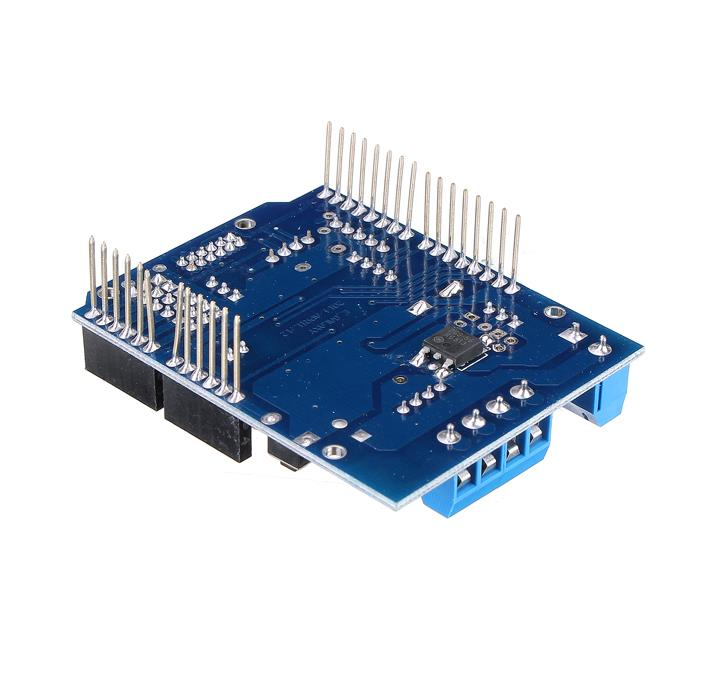

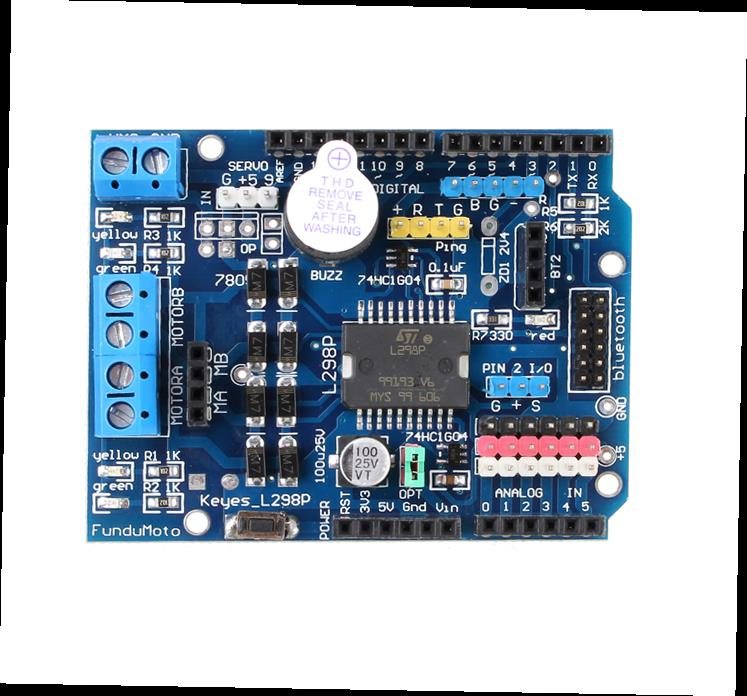

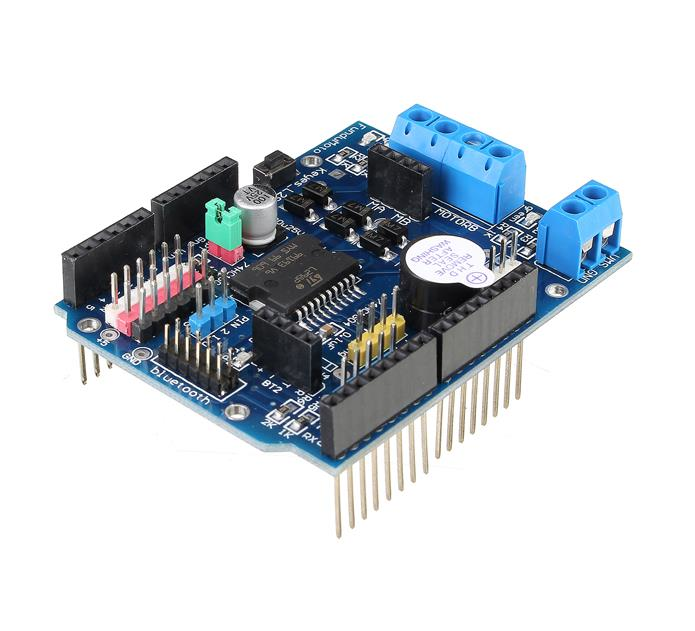

L298P DC motor driver uses high-power motor driver chip L298P, can directly drive 2 DC motors, up to 2A The driver supports current, the output terminal of the motor uses 8 high-speed Schottky diodes as protection, can be directly inserted into Arduino.
L298P Shield DC motor driver has PWM speed control mode . Power can be input by the Arduino VIN or the driver's wiring terminal, which can use the jumper to switch.
Specifications
- Onboard L298P motor driver chip, directly use the main board digital IO port (D10, D11, D12, D13).
- Onboard buzzer (D4), you can set the backup alarm buzzer.
- Convenient motor interface , can be divided into dual-channel motor output.
- Dual-channel bluetooth interface, no need for wiring, can be placed directly.
- When digital interface 7 is not used (D2, D3, D5, D6, D7, D8, D9).
- Six analog interfaces (A0 ~ A5).
- Forward, backup and return indicator
- Logic part input voltage: 5V DC
- Input voltage: VIN input 6.5 ~ 12V DC, PWRIN input 4.8 ~ 24V DC
- Logic part operating current: ≤36mA
- Driver part operating current: A2A
- Maximum dissipation power: 25 W (T = 75 C)
- Control signal input level: 2.3V≤VIN≤5V for high level, -0.3V≤VIN≤1.5V< for low level
- Operating temperature: -25 ℃ ~ + 130 ℃
