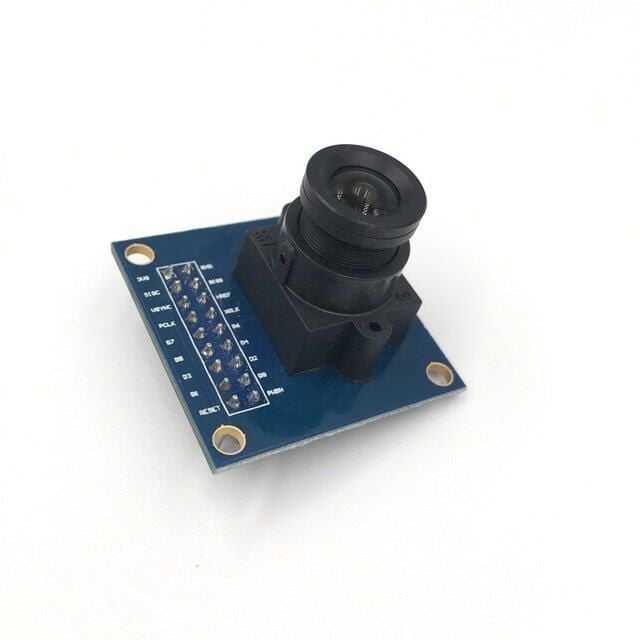

OV7670 Arduino Camera Module
V7670 640X480 VGA CMOS Camera Image Sensor The module is a low-cost image sensor capable of operating at a maximum resolution of 30 fps and 640 x 480 ("VGA"), equivalent to 0.3 Megapixels. The captured image may be pre-processed by the DSP before being sent. This pre-processing is carried out via the Serial Camera Control Bus (SCCB) Can be configured with OmniVision OV7670 CMOS VGA (640 × 480) CAMERA-CHIP Sensor with OmniPixel technology 3.3V DC Input Voltage operating temperature 0-50 Degrees Celsius All Glass Lenses, Lens (including seat) is Magnesium Alloy material.
Image Processing, Simple Machine Vision, Object Detection, Color Detection etc. 2×10 0.1 project Output Connector to connect to any prototyping board or breadboard which will make your project/product implementation fast it will be easy.
Features:
- Optical size 1/5 inch
- Resolution 640x480 VGA
- Regulator onboard, only single 3.3V supply not required
- High quality F1.8 / 8mm lens
- Raw RGB, RGB (GRB 04:02:02, RGB565/555), YUV (04:02:02) and YCbCr (04:02:02) formats
- High sensitivity for low light operation
- Low operating voltage for embedded portable applications
- Standard SCCB interface compatible with I2C interface
- Display support: VGA, QVGA, QQVGA , CIF, QCIF, QQCIF
- Exposure Control (AEC), Auto Gain Control (AGC), Auto White Balance (AWB), Auto
- Band Filter (ABF), and Auto Black -Level Calibration (ABLC)
- Image quality controls including color saturation, color, gamma, sharpness (edge enhancement),
