NodeMCU LoLin ESP8266 Base Shield - NodeMCU CH340

Ratings & Reviews (0)
Comment
Show More: Arduino Shield
Brand: Motorobit
Product Code: ARD.ASH.01.000026
Stokta 10+ ürün
61.60 TL + VAT
VAT Included: 73.92 TL
Like

Out Of Stock

Notify me when its in stock

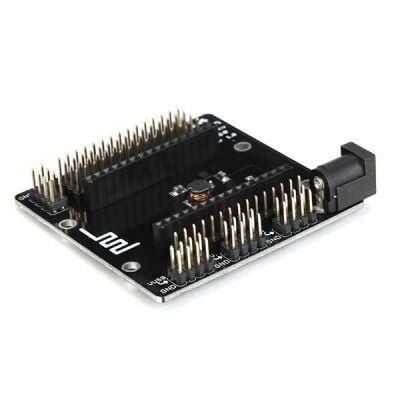

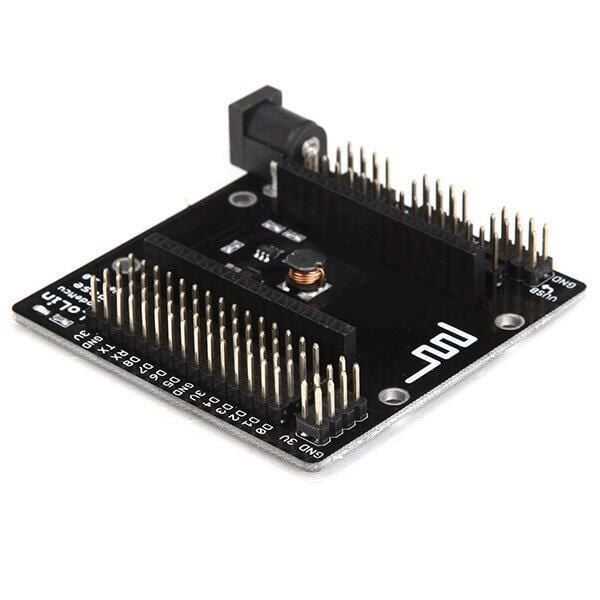

NodeMCU LoLin ESP8266 Base Shield - NodeMCU CH340 Compatible


NodeMCU ESP8266 Expansion Board, NodeMCU ESP8266 is an expansion card designed to work with ESP-12E. Powered by 6V to 24V DC input, it provides boost power to run NodeMCU V3 and provides easy connection to all input and output pins to help you connect your NodeMCU board to other devices.

Specifications

  • Input Voltage: 6V - 24V DC
  • PCB Thickness: 1.6mm
  • NodeMCU Pin Distance between two sides: ~ 28.0mm
  • Pin Spacing: 2.54mm (0.1in)
  • Card Dimensions: 60.0mm x 60.0mm x 15.0mm (L x W x H)
  • Weight: 22.5g
  • Multiple Header pins for ease of connection with other external devices
  • Onboard Switch Mode 5V regulator

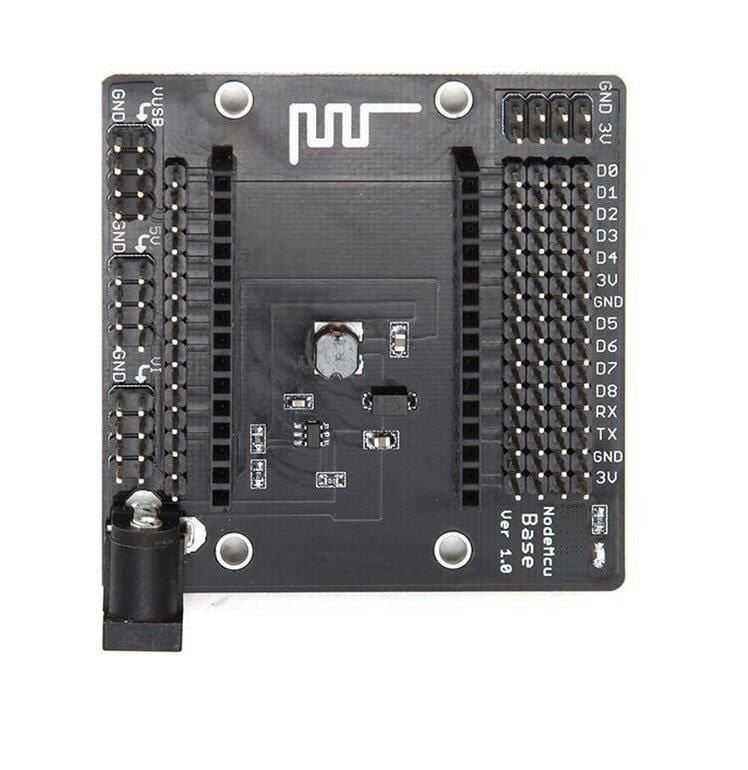

NodeMCU LoLin ESP8266 Base Shield Pinout< /h3>

NodeMCU LoLin ESP8266 Base Shield Pinout

NOTE: LoLin ESP8266 development board is not included. Only compatible with NodeMCU CH340 model. Not compatible with NodeMCU CP2102 model.
Weight(Kg)
0.05
