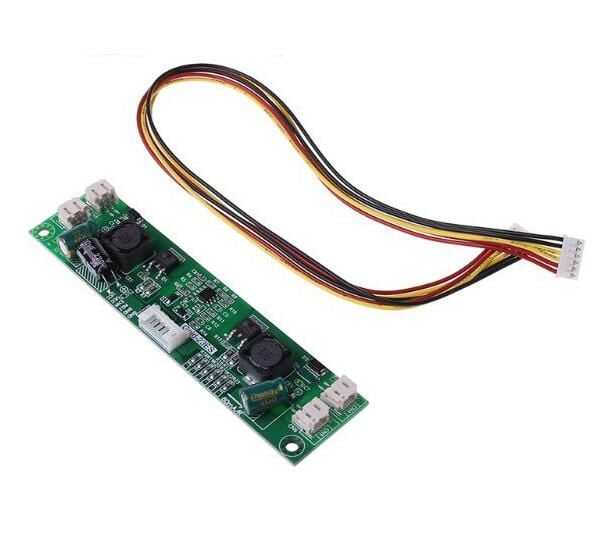

CA-266S Universal LCD TV Backlight Inverter Card
CA-266S is a 26-65" LED TV backlight universal inverter 80-480mA Constant current card.
Technical Specifications:
Power supply Input: 10- Supports 28V DC input
Output voltage: automatic adaptation below 88V
Output current: default 80mA, you can increase the current by shorting resistor R18,R19,R20,R23 each resistor 80mA, maximum 480mA.
Suitable for light bar: 26" - 65" (max voltage 88V)
