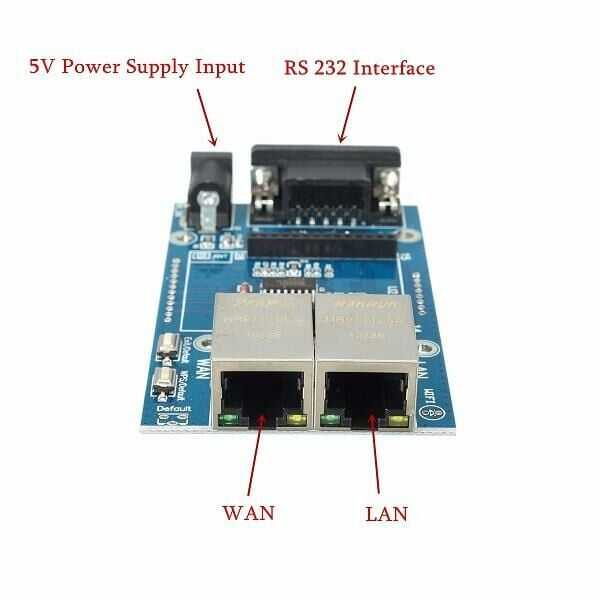

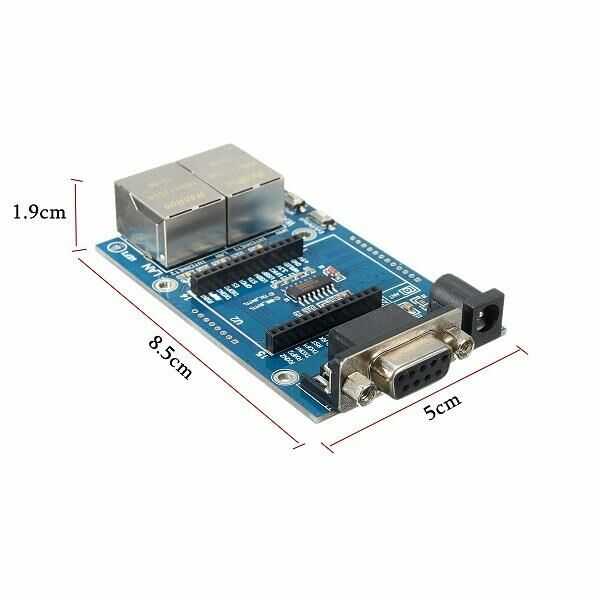

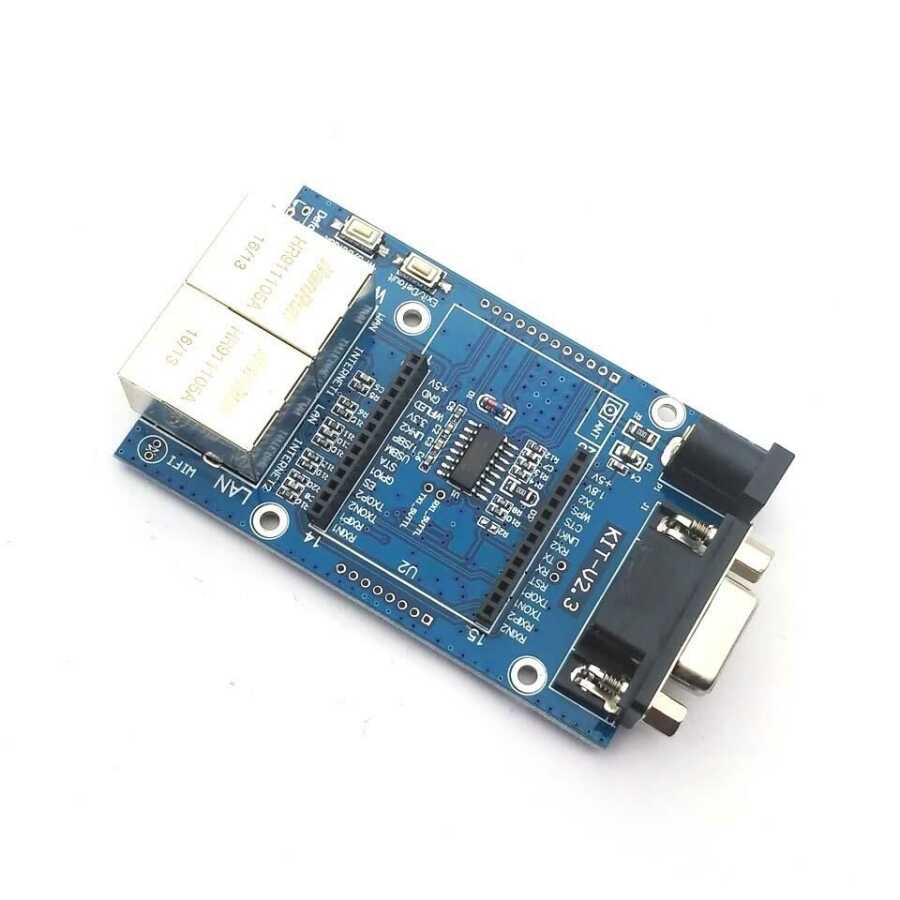

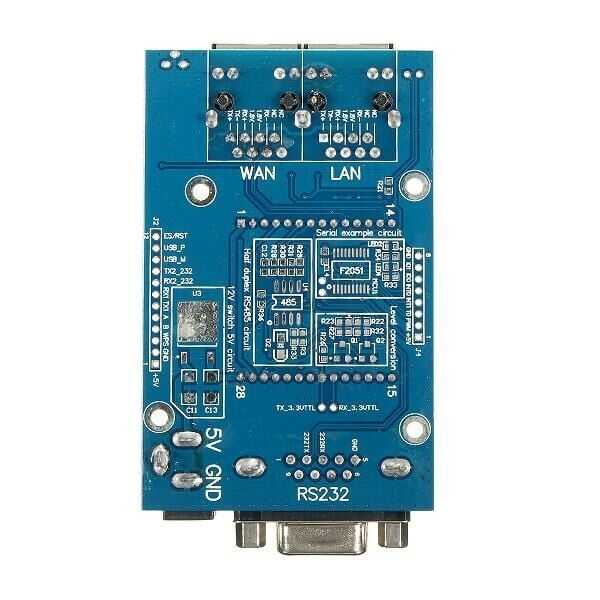

HLK-RM04 TCP IP Ethernet Converter Module Serial UART RS232 Wan Lan Wifi
This is HLK-RM04 UART to Serial Wifi Ethernet Wifi Module. HLK-RM04 UART-ETH-WIFI module (serial port-Ethernet-Wireless network). This product is a built-in module based on the universal serial interface network standard, built-in TCP/IP protocol stack enables conversion between user, serial port, Ethernet, wireless network (wifi) interface.
Via the HLK-RM04 module, no configuration changes are required on conventional serial devices; Data can be transmitted via the Internet network. It offers users a fast solution for transferring data to serial devices over Ethernet. Wifi Module is not included in the product. The product does not work without the HLK-RM04 module.
HLK-RM04 is attached to the product
here you can access it.
Features:
- WIFI serial, Ethernet, Ethernet Wifi multifunctional Wifi module, transparent bidirectional data transmission
- Integrated 10/100M ethernet port, Max. Baud rate up to 230.4kbps
- Adopted Ralink program, high quality material
- Reliable system core suit security and long-term system application
- Operating temperature: industrial grade -25~75°; c
- Built-in 360M MIPS CUP, 16M RAM, 4M FLASH, wireless baseband, RF front-end and multi-peripheral bus
- IEEE 802.11 b/g/n, transparent protocol data transfer Supports mode
- Support WIFI encryption and algorithm, WEP/WAP-PSK/WAP2-PSK/WAPI, encryption type WEP64/WEP128/TKIP/AES
- Offer AT+ instruction set, user Offer friendly web configuration page
- Internal antenna or external antenna
- Support AP and Station mode, AP support iPhone and android connect with WIFI, support AT at the same time, Station
- TCP server/TCP Client/UDP working mode, support network protocol: TCP/UDP/ARP/ICMP/HTTP/DNS/DHCP
- DHCP auto gain IP support, support IP distribution in AP Mode
- Adjustable serial speed rate up to 320400
