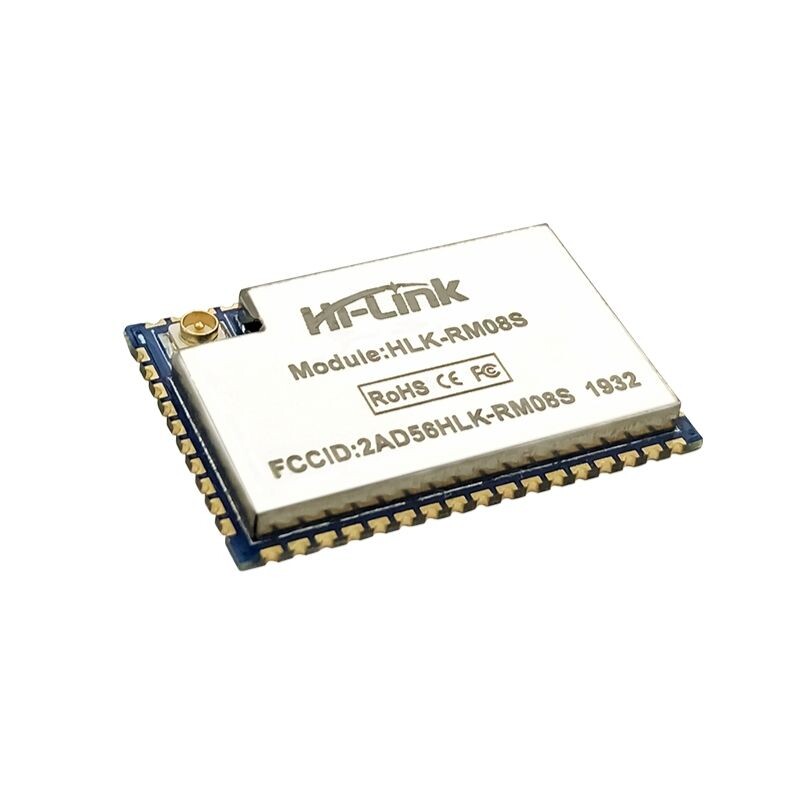

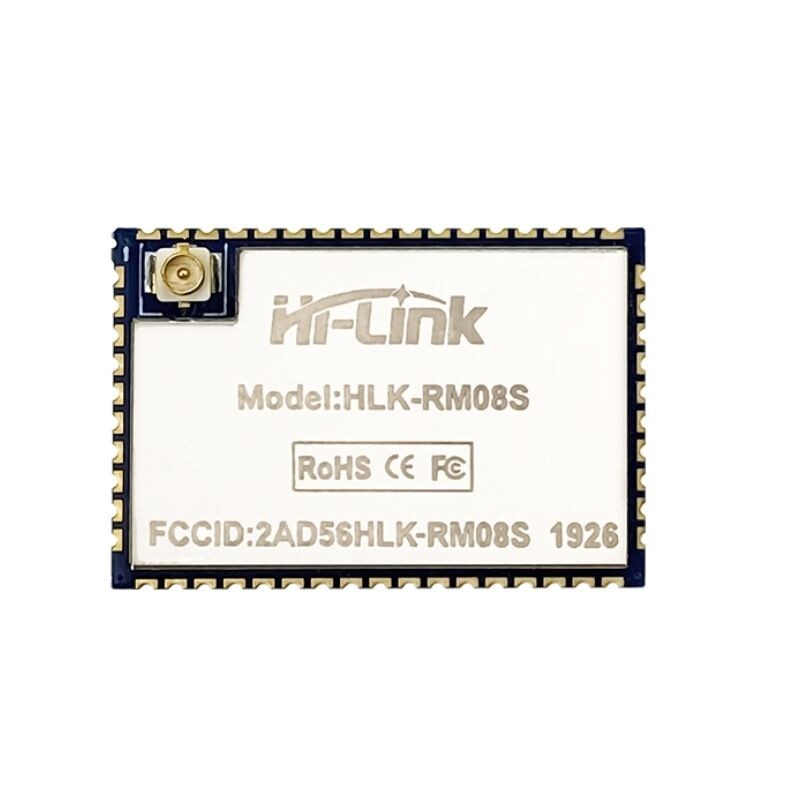

HLK-RM08S Serial WIFI Module

HLK-RM08S Serial WIFI Module

HLK-RM08S Serial WIFI Module, HLK-RM08S, can realize mutual conversion between serial port, Ethernet and wireless network (WIFI) interfaces, It is a built-in WiFi module with built-in TCP/IP protocol stack, conforming to network standards based on universal serial interface.

It can quickly solve the user's serial device network transmission data problem, does not need to change the configuration of the traditional serial device directly to the network.

Specifications

• Chip: MT7688KN
• Kernel: MIPS24KEc
• Frequency: 580MHz
• RAM: 64Mb
• Flash: 32Mb
• I-Cache, D-Cache: 64Kb, 32Kb
• WIFI Standard: IEEE 802.11n/gb
• Communication Distance: 100m
• Wireless Transmission Speed;
  • 11n: max. 150Mbps
  • 11g: max. 54Mbps

  • 11b: max. 11Mbps
• Number of Channels: 1-11
• Frequency Range: 2.4-24835G
• Transmission Power: 15 -20DBM
• WIFI Working Modes: Wireless network card/wireless access point/wireless router
• Wireless Security;
  • Wireless MAC address filtering
  • Wireless security function key
  • 64/128/152 bit WEP encryption
  • WPA-PSK/WPA2-PSK, WPA/WPA2 security mechanism
• Network Management;
  • Remote web management
  • Configuration file import and export
  • WEB software upgrade
• Module Size: 17.8mmx25.8mm

Module Pinout

Diagram
