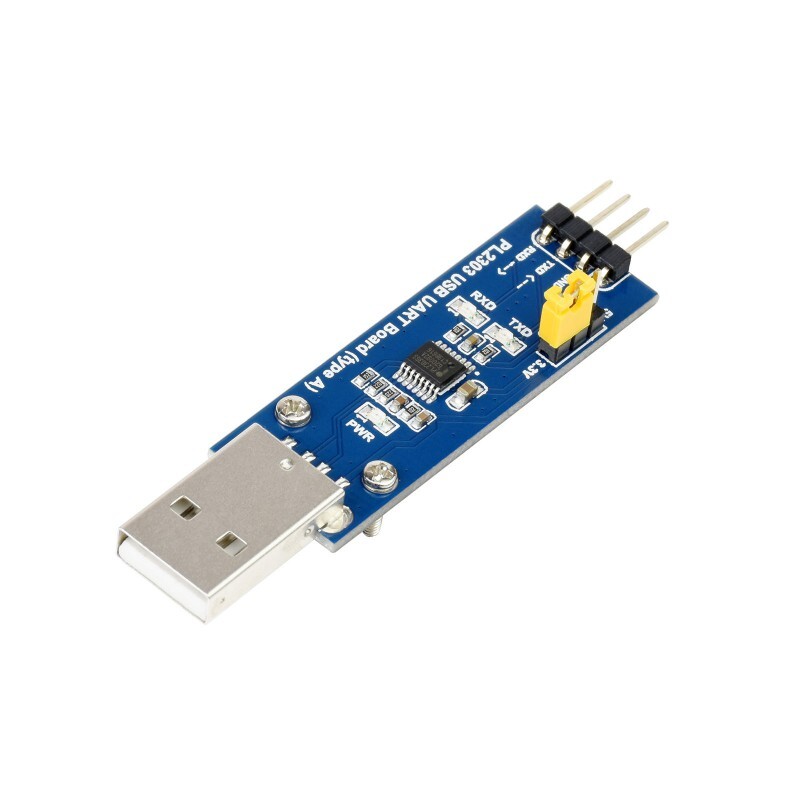

PL2303 USB - UART (TTL) Communication Module - USB Type A
PL2303 USB - UART (TTL) Communication Module - USB Type A, Communication Module Windows XP/7/8/10/11/ etc. operating systems and compatible with 1.8V/2.5V/3.3V/5V logic voltage.
User Manual
Features
- SKU: 20265
- Windows XP/7/8/10/11/... support
- 3x VCCIO power mode with jumper setting.
- VCCIO - 5V: 5V external power supply
- VCCIO - 3.3V: 5V external power power supply
- Without jumper cap: external power (1.8V/2.5V/3.3V/5V).
- Onboard 3 LED indicators: TXD, RXD, PWR.
- Communication interface: USB/UART
- Chip: PL2303
- USB interface voltage: 5V
- UART interface voltage: 1.8V/2.5V/3.3V/5V
- Size: 16.51mm x 48.26mm
