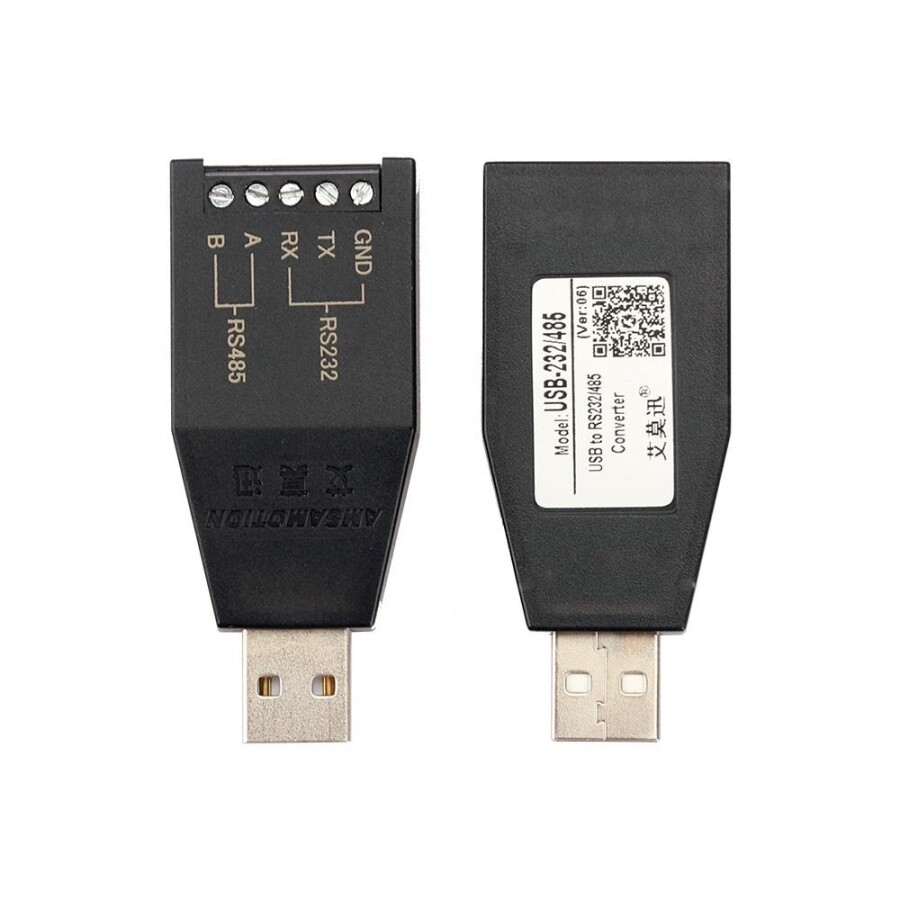

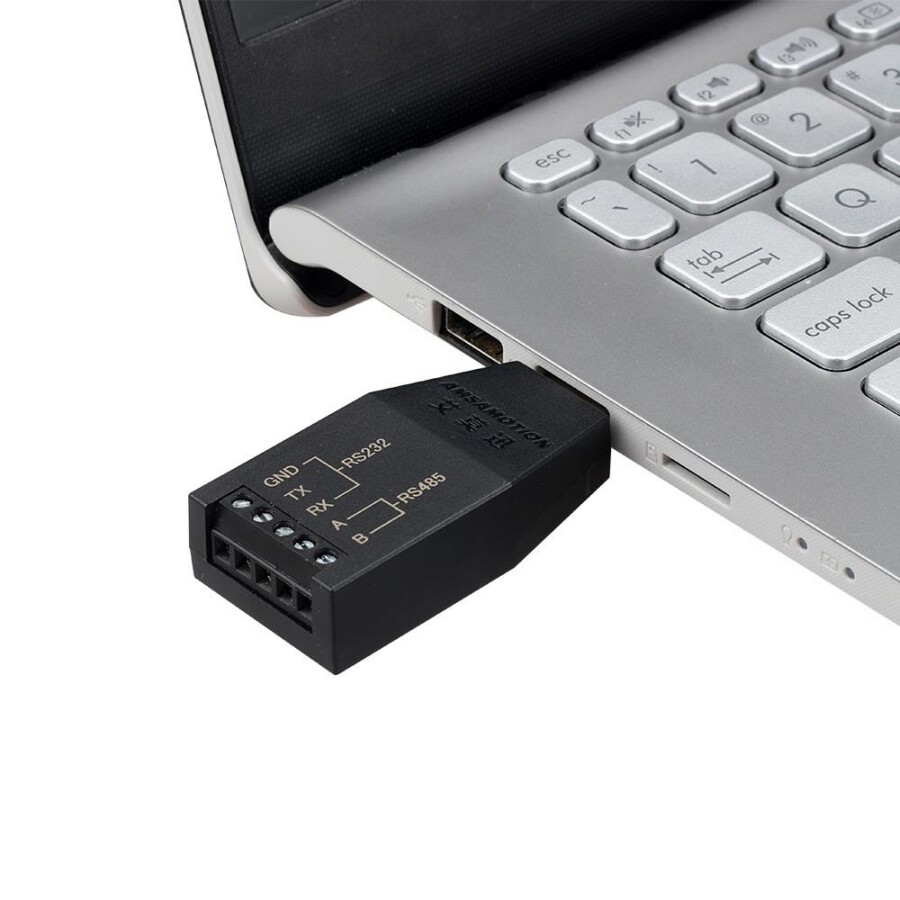

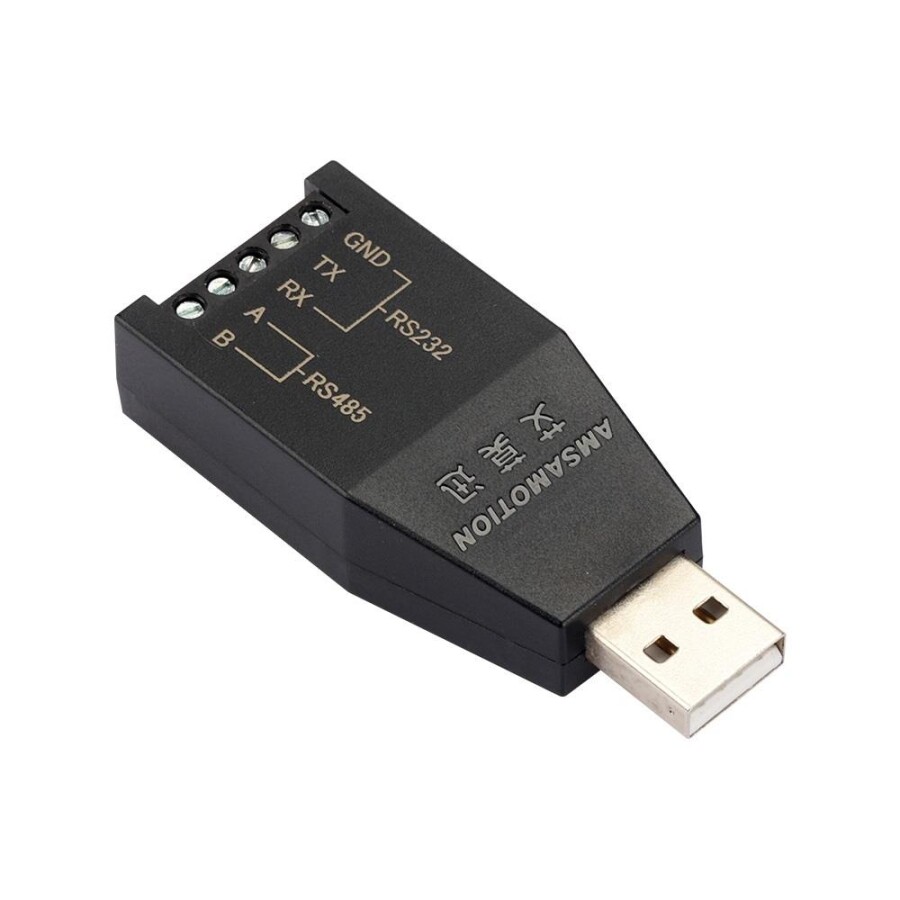

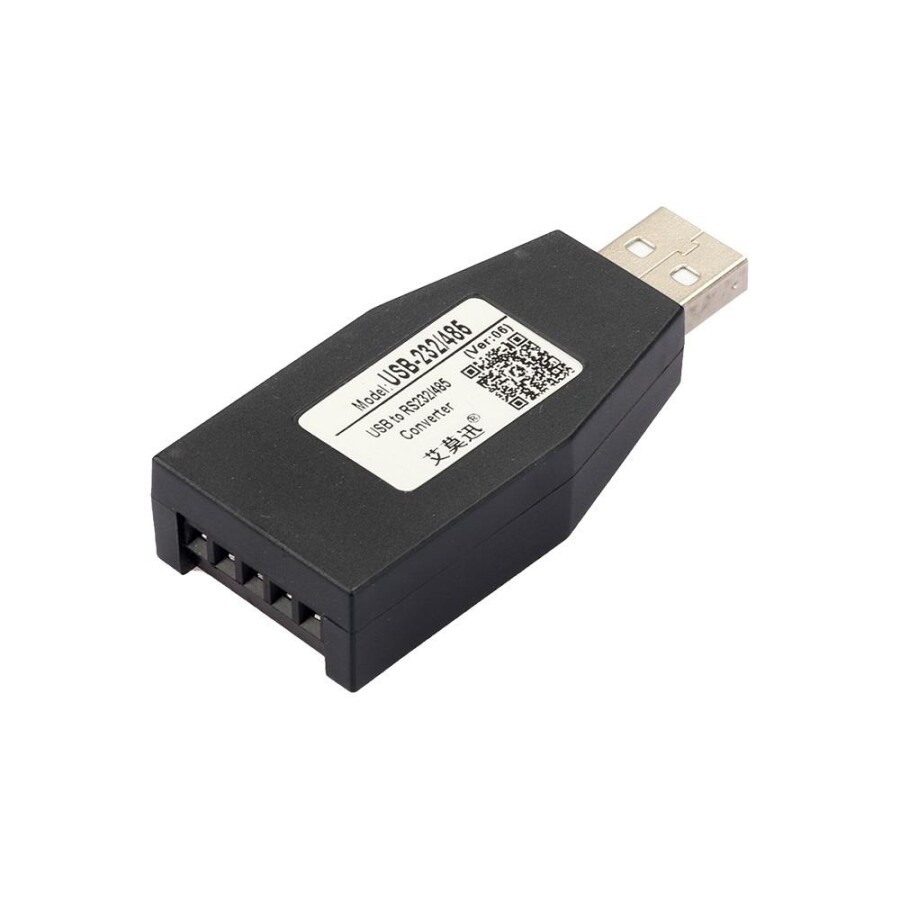

USB To RS232/RS485 Serial Communication Module
It is a kind of industrial grade converter that can extend RS232/485 Interface through USB port. It allows easy connection of RS232/485 device via USB port. Generally suitable for cash register, plc, access control system, barcode printer, scanner, CNC slot, industrial instrument and many other fields.
Technical Specifications
Product Name: USB-232/485 Converter
Power supply:Direct USB without external power supply
System:WIN7/8/9/10 , MAC OS 8.6
Baud rate: 300bps-128000bps
Interface: 5-pin terminal Wiring
232 signal: RXD, TXD, GND
RS-485 signal: A+, B-
Support USB Port:USB2.0, Compatible USB1.1
Size:6.32*2.73*13.8 cm
