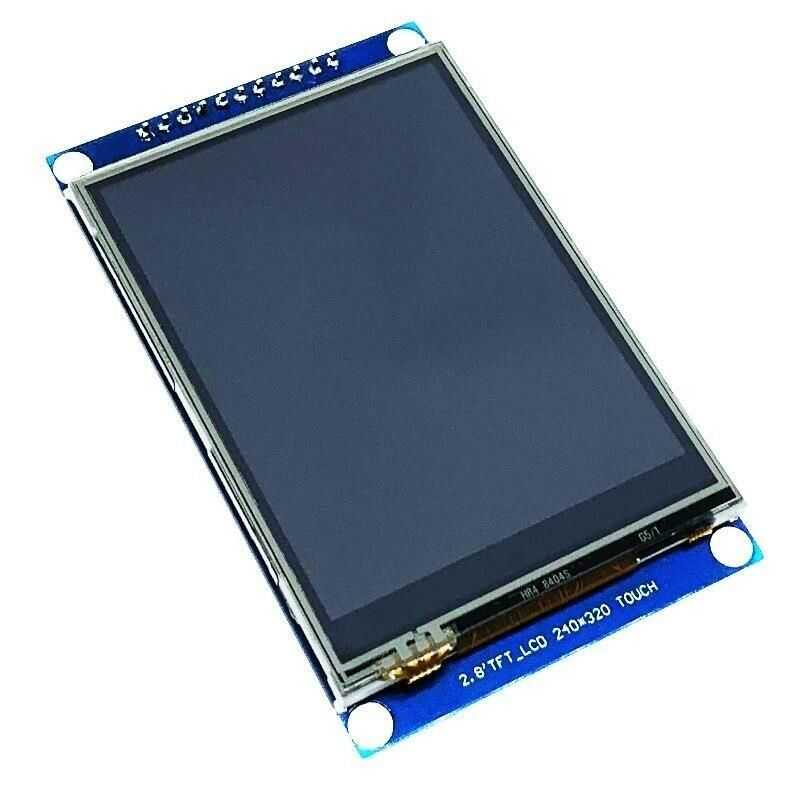

2.8'' Touch LCD Shield ILI9341 MRB2801
2.8'' Touch LCD Shield ILI9341 MRB2801. Directly compatible with ALIENTEK STM32 Mini, Elite, WarShip, Explorer and Apollo cards.
*2.8 inch color screen, supports 16BIT RGB 65K color screen, displays rich colors
*240x320 resolution for clear image
*8-bit / 16-bit parallel bus switching support (default is 16-bit), fast transfer speed
*ALIENTEK STM32 Mini, Elite, WarShip for direct plug-in use Supports Explorer and Apollo development boards
*Touch function support
*Provides a rich sample program for STM32 and C51 platforms
Technical Specifications
- Power: + 3.3 / 5 VDC (Internal Regulator)
- Current: <100mA
- Screen Type: 2.8 "TFT" color LCD
- Colors: 65K
- Resolution: 240 x 320 RGB pixels
- Touch Chip: XPT2046
- Display mode: Transmissive
- Backlight: 4 x White LED
- Viewing Angle: 12 o'clock
- Operating Temperature: -20 ° C ~ + 60 ° C
- Storage Temperature: -30 ° C ~ + 70 ° C

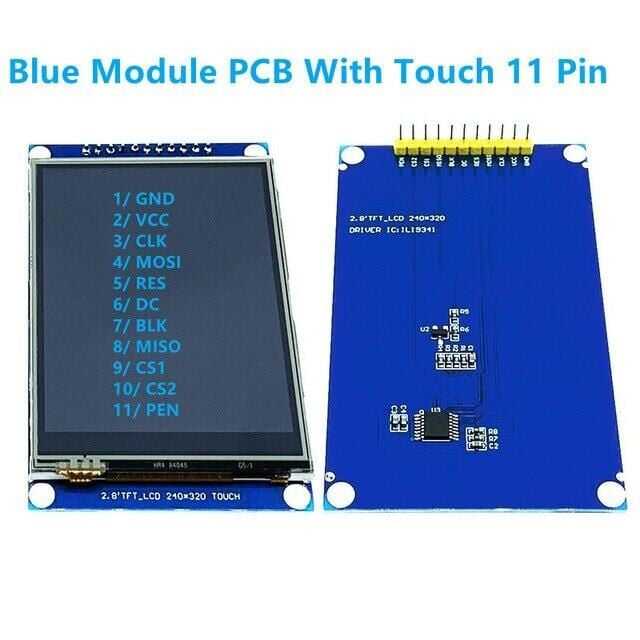

- Connections: 11 Pin
