Arduino Development Board - Multi-Purpose Shield Ks018

Ratings & Reviews (0)
Comment
Show More: Arduino Shield
Brand: Motorobit
Product Code: ARD.ASH.01.000035
Stokta 10+ ürün
316.80 TL + VAT
VAT Included: 380.16 TL
Like

Out Of Stock

Notify me when its in stock

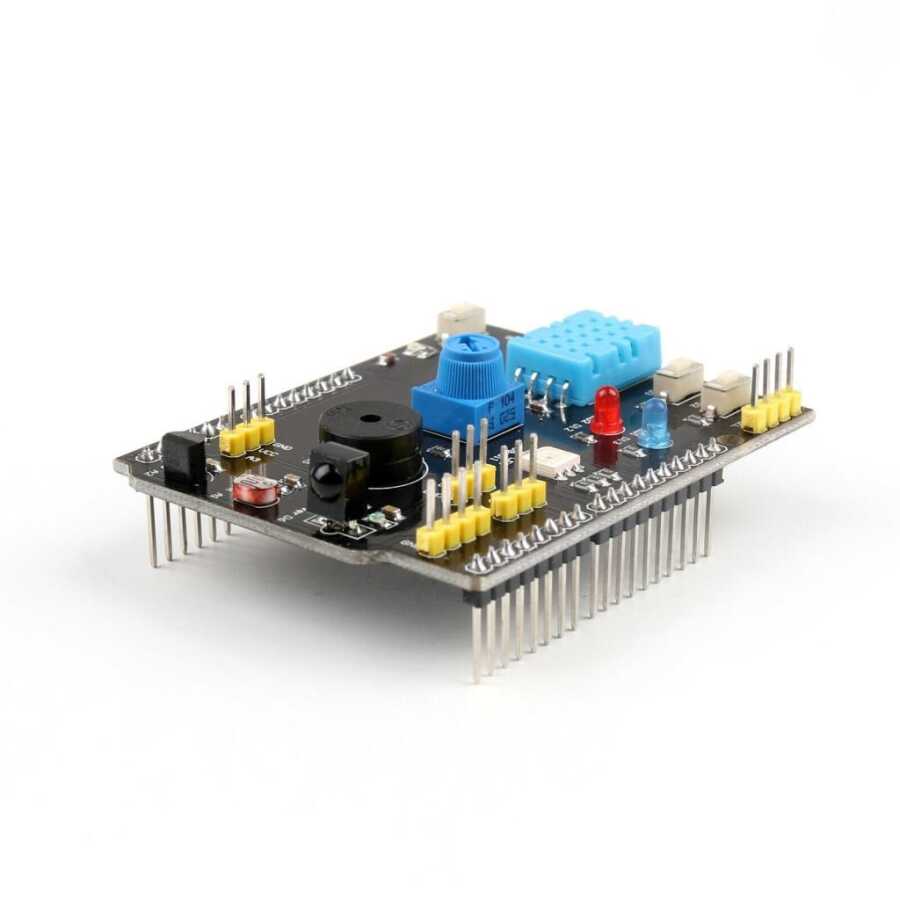

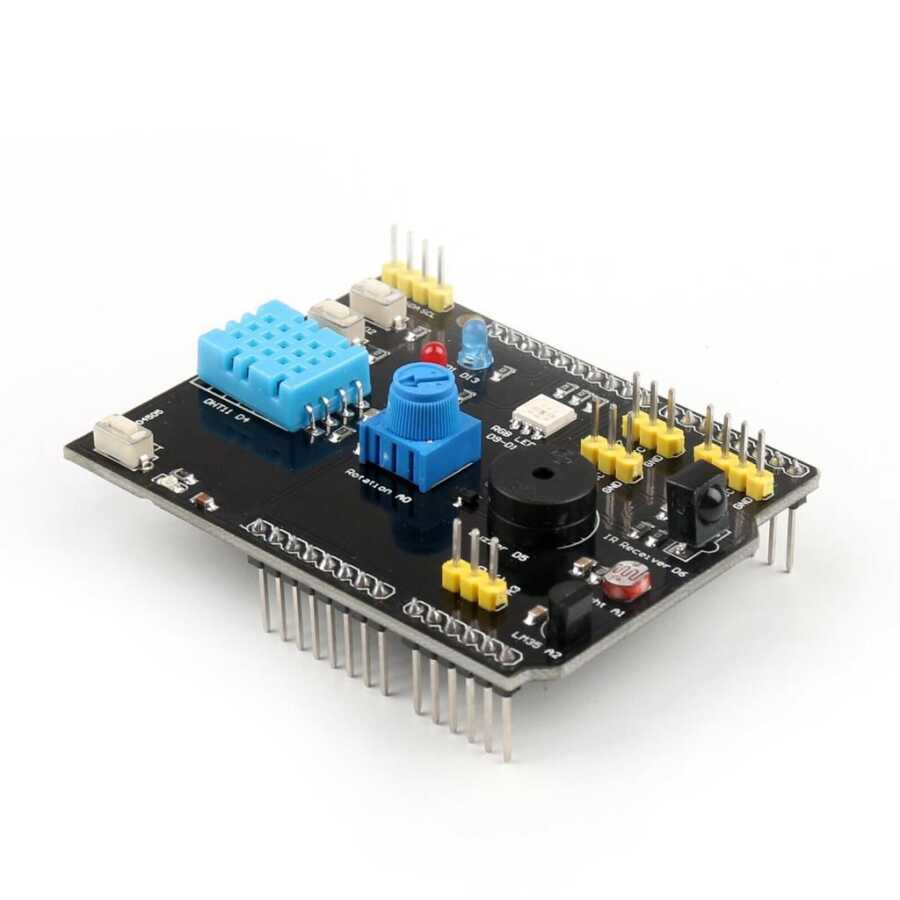

Arduino Development Board - Multi-Purpose Shield Ks0183

Multi-Purpose Shield V1 is an Arduino-based learning board. There is no need for soldering and connection. It is multi-purpose and you can easily find code libraries of all tested modules on the internet.

Features:

  • Main control such as UNO R3 and MEGA2560 Compatible with devices.
  • Comes with 2 LED indicators to show program status.
  • Comes with 2 switches for external interrupt experiment.
  • Comes with reset button
  • Comes with a reset button
  • Comes with DHT11 sensor to measure temperature and humidity.
  • Comes with a potentiometer for analog input
  • Comes with a passive buzzer for alarm.
  • Comes with a full color RGB LED
  • Comes with a photocell to detect light brightness
  • Comes with an LM35D temperature sensor
  • Comes with an infrared comes with receiver
  • 2 digital pins (D7 and D8)
  • 1 analog pin (A3)
  • One IIC interface
  • One TTL serial pin

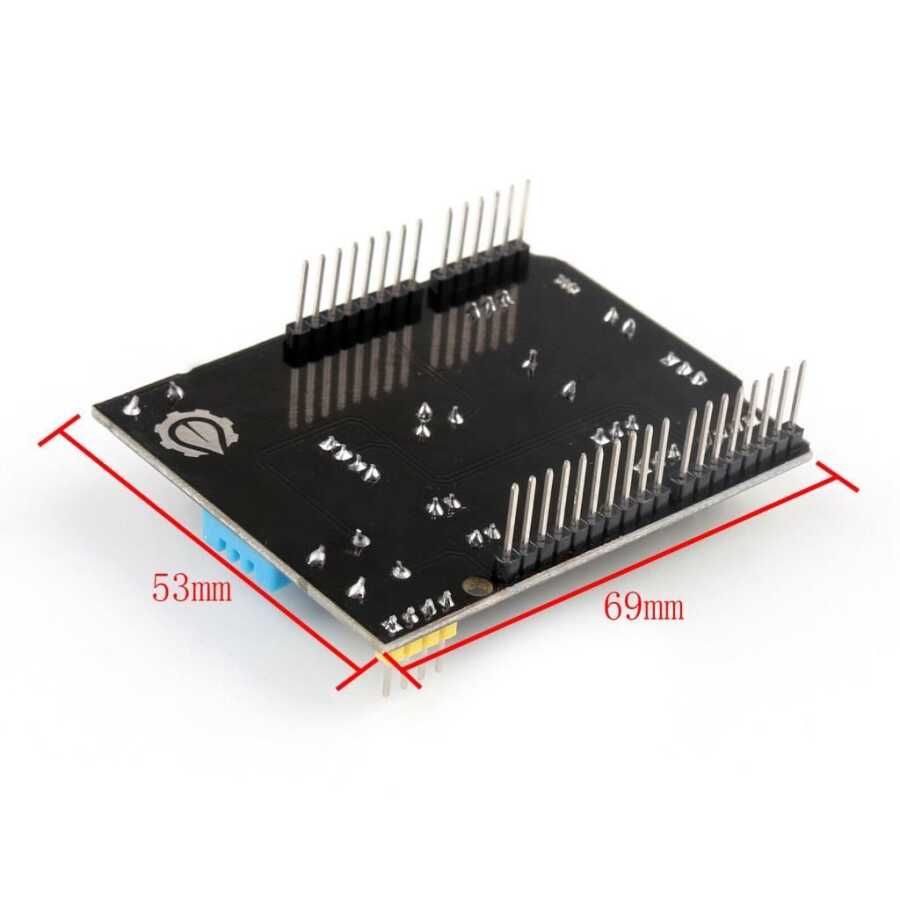

  • Dimensions: 69mm * 53mm * 19mm
  • Weight: 21g

Weight(Kg)
0.05
