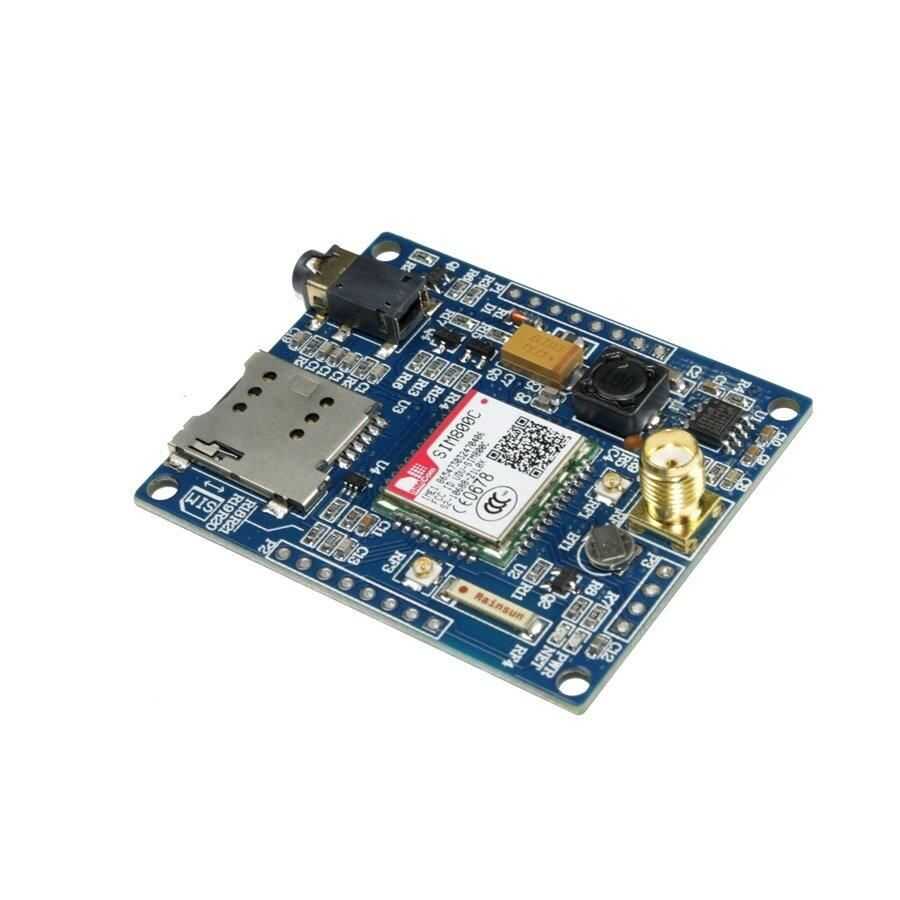

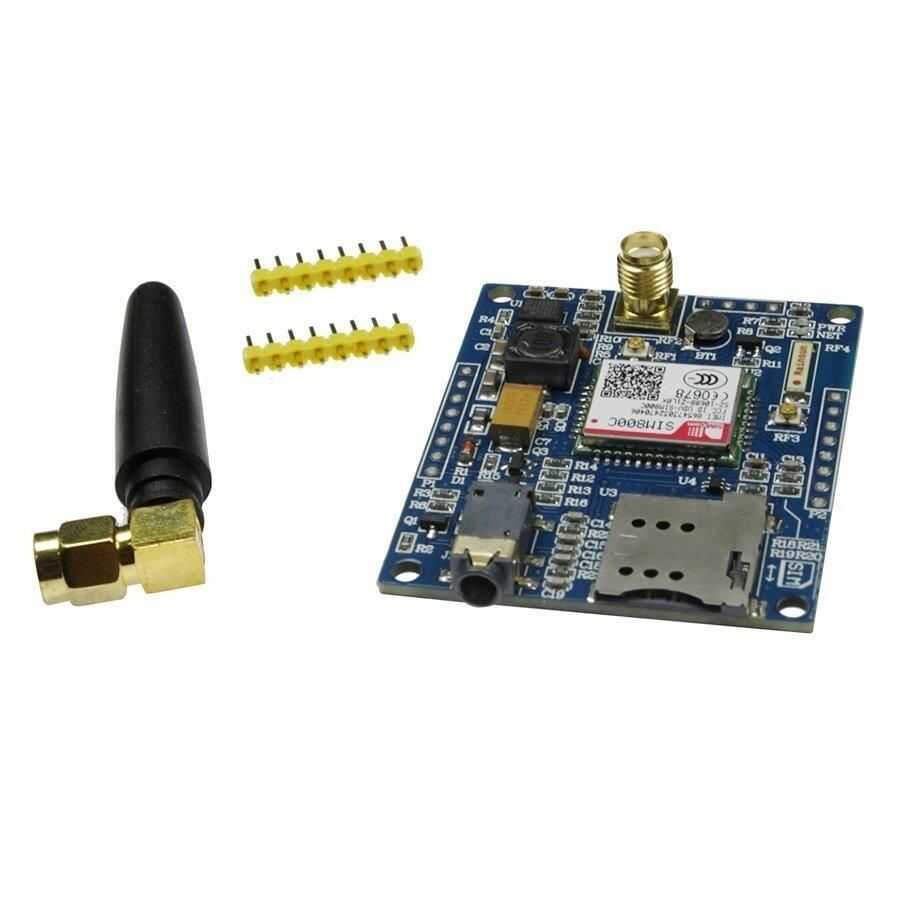

Thanks to GPRS Shield, you can add GSM/GPRS connection feature to your Arduino projects. You can easily perform functions such as dialing numbers and sending SMS using AT commands. SIM800 module, which can operate in 4 bands, takes up little space on the card as well as low power consumption. For communication between the module and Arduino, you can use the hardware serial port of Arduino or the software serial port that you define with the SoftwareSerial library.
Features:
Arduino UNO/Mega compatible
Ability to use hardware or software serial port
850/900/1800/1900 MHz 4 band support
Built-in 3.5mm TRRS headphone/microphone jack
Communication support with Standard, GSM 07.07 & 07.05 and Enhanced and SIMCOM AT commands
Operating temperature: -40 °C to +85 °C
Protocol support: 0710 MUX, embedded TCP/UDP protocol, FTP/HTTP, FOTA, MMS, embedded AT
SIM900 certifications: CE, IC, FCC, ROHS, PTCRB, GCF, ICASA, REACH, AT&T
Dimensions: 68.58 * 53.34mm
Power connection: 5V via 5V pin or 6.5-12V via Vin pin ;
IMEI is not registered.
