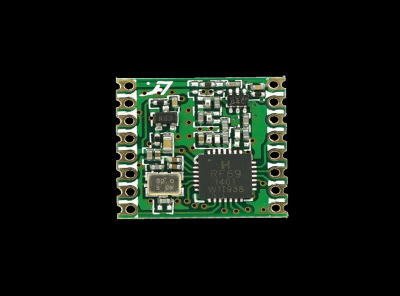

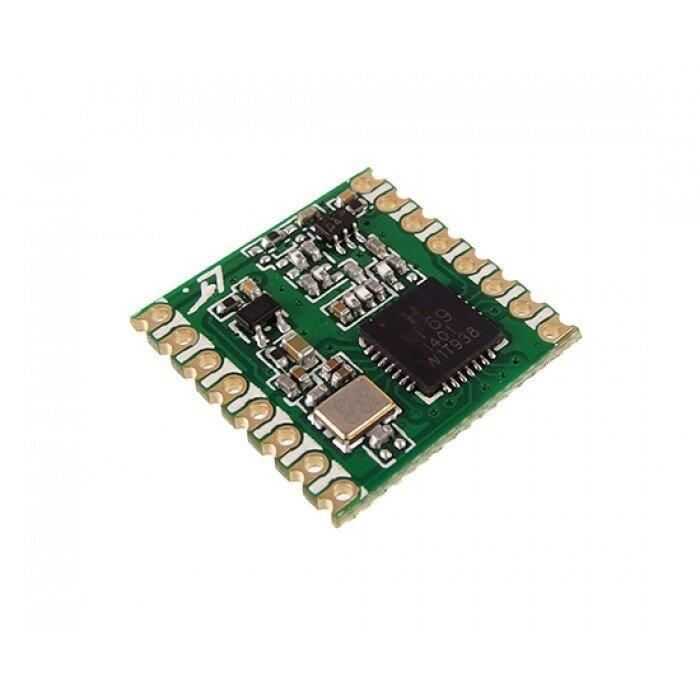

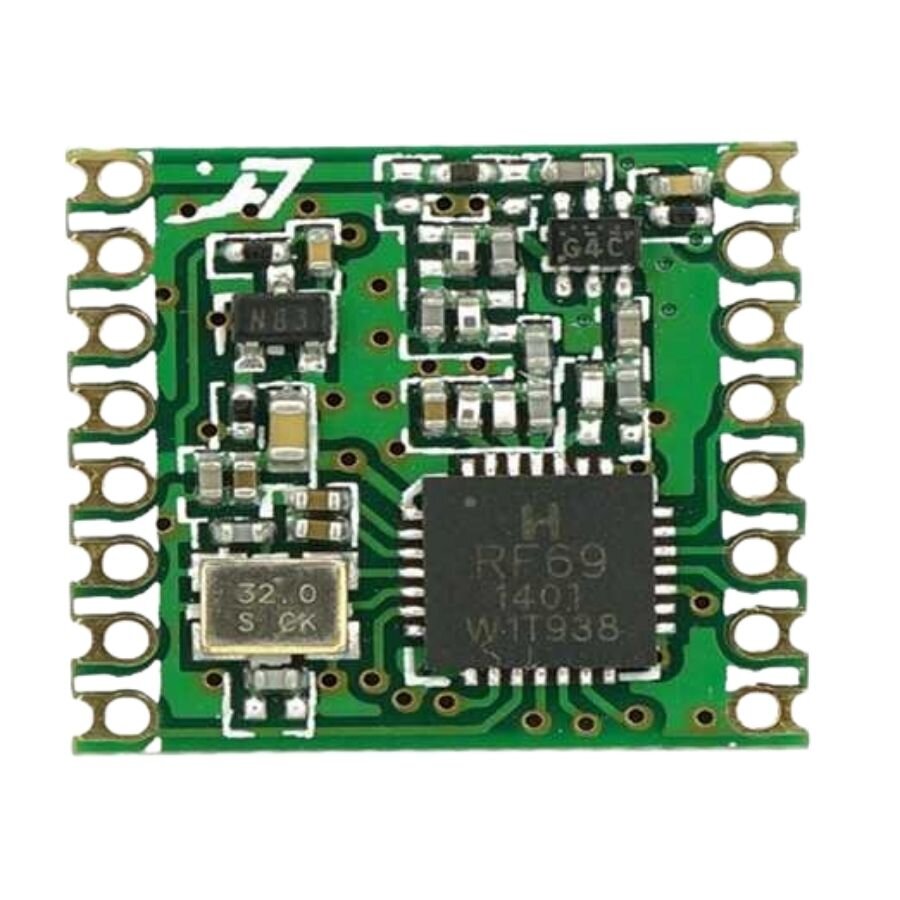

RFM69HCW-868S2



RFM69HCW is a transceiver capable of operating over a wide frequency range, including the license-free ISM (Industrial Scientific and Medical) frequency bands of 315,433,868 and 915MHz module. All major RF communication parameters are programmable and most can be adjusted dynamically.

RFM69HCW offers the unique advantage of programmable narrowband and wideband communication modes. The RFM69HCW is optimized for low power consumption while offering high RF output power and channeled operation.

To better utilize the RFM69HCW modules, this specification also includes many of the core chip RF69Hs, including non-protruding IC pins. It includes many parameters and functions.



• +20 dBm - 100 mW Power Output Capability
• High Sensitivity: up to -120 dBm at 1.2 kbps
• High Selectivity: 16-hit FIR-Channel Filter
• Bulletproof front end: IIP3 = - 18 dBm, IIP2 = +35 dBm, 80
• Low current: Rx = 16 mA, 100nA logging
• Programmable Pout: -18 to +20 dBm in 1dB steps
• Constant RF performance across the module's voltage range
• FSK Bit delivers speeds up to 300 kbps
• Fully integrated synthesizer with a resolution of 61 Hz
• FSK, GFSK, MSK, GMSK and OOK modulations
• Built-in Bit Synchronizer with Clock Expiration
• Incoming Synchronization Word Recognition
• 115 dB + Dynamic Range RSSI
• Automatic RF Sense with ultra-fast AFC
• Module Size: 16X16mm

• Automatic Meter Reading
• Wireless Sensor Networks
• Home and Building Automation
• Wireless Alarm and Security Systems
• Industrial Monitoring and Control
• Wireless M-BUS
