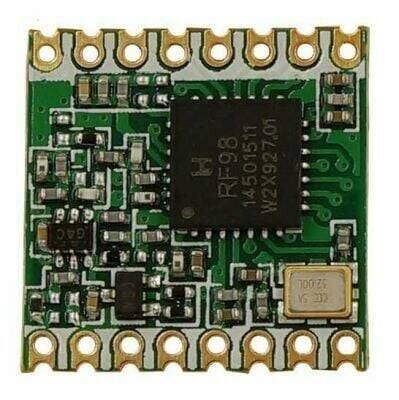

RFM96W



RFM95 / 96/97/98 (W) transceivers provide long-term spread spectrum communication and high interference immunity, minimizing current consumption. It features a LoRaTM long-range modem.

Using Hope RF's patented LoRaTM modulation technique, RFM95/96/97/98 (W) is a low-cost crystal and material can achieve a sensitivity of over -148dBm using the list.

High sensitivity combined with the integrated +20 dBm power amplifier provides industry-leading link budget, making it within range making it optimal for any application requiring robustness or ruggedness.

LoRaTM outperforms traditional modulation techniques in terms of both blocking and selectivity. provides significant advantages in solving traditional design compromise.

These devices also support high-performance (G) FSK modes for systems including WMBus, IEEE802.15.4g. The RFM95/96/97/98 (W) offers exceptional phase noise, selectivity, receiver linearity and IIP3 for much lower current consumption than competitive devices.



• LoRaTM Modem.
• Maximum link budget 168 dB.
• +20 dBm - 100 mW fixed RF output vs V source.
• +14 dBm high efficiency PA.
• Programmable bit rate up to 300 kbps.
• High sensitivity: up to -148 dBm.
• Bulletproof front end: IIP3 = -12.5 dBm.
• Excellent blocking immunity.
• Low RX current 10.3 mA, 200 nA logging.
• Full The integrated synthesizer has a resolution of 61 Hz.
• FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.
• Built-in bit synchronizer for clock recovery.
• Hunch detection.
• 127 dB Dynamic Range RSSI.
• Automatic RF Sense and CAD with ultra-fast AFC.
• Packet engine with CRC up to 256 bytes.
• Built-in temperature sensor and low battery indicator.
• Module Size：16*16mm



• Automatic Meter Reading
• Home and Building Automation
• Wireless Alarm and Security Systems
• Industrial Monitoring and Control
• Long range Irrigation Systems
